| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |
Description

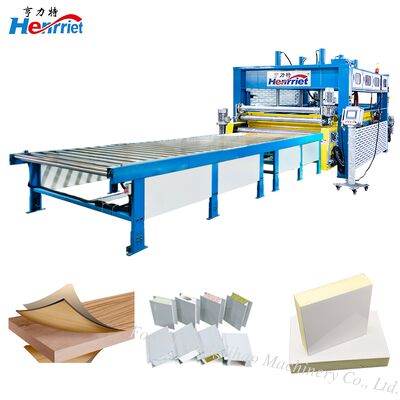

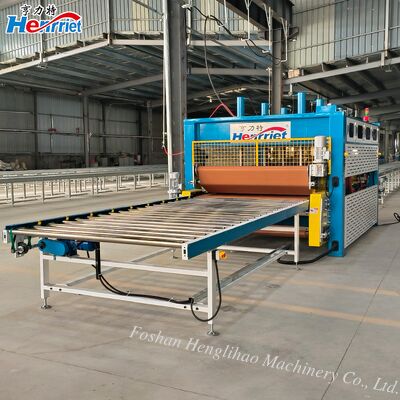

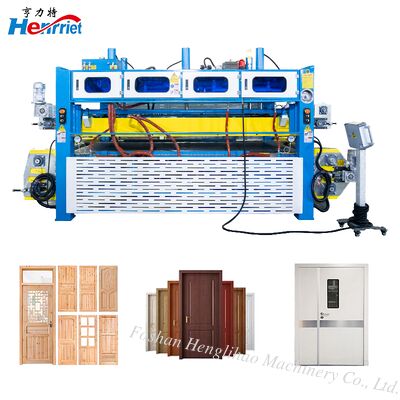

The automated conveyor line integrated with a hot press machine represents a fully synchronized production unit where the pressing equipment and material handling systems operate as a single cohesive platform. The complete system comprises the hot press structure, infeed conveyor mechanism, outfeed transfer device, hydraulic lifting components, and centralized electrical control architecture. Operating on a sequential "one-in, one-out" flow design, both the entry and exit stations incorporate hydraulically adjustable roller conveyors that smoothly guide pre-assembled panel stacks into the pressing chamber while simultaneously extracting finished boards and advancing them toward downstream operations. The conveyor system features uniformly spaced mounting frames, each equipped with paired longitudinal and transverse guide rollers arranged in a vertical configuration. These guide elements can be precisely adjusted to accommodate varying product dimensions, ensuring consistent alignment and preventing lateral movement or distortion throughout the material transport process. Through closed-loop coordination between the pressing unit and conveyor framework, the system achieves fully automated production sequencing spanning material loading, hot pressing consolidation, and finished product offloading.
Feature
1,Superior production capacity
The combination of automated continuous operation with precise multi-material adaptability delivers comprehensive breakthroughs in cost reduction and productivity enhancement, establishing core competitiveness in panel manufacturing operations. Compared to conventional standalone machine configurations, the automated conveyor line substantially reduces material handling time and eliminates waiting intervals between processing stages, enabling significantly higher output from the same hot press equipment over equivalent operational periods.
The system achieves precise control over multi-station positioning, movement velocity, and motion displacement within the loading and unloading sequence, dramatically reducing mechanical handling duration. Taking the multi-layer hot press production line as an example, the complete assembly line requires minimal operator involvement—personnel perform initial material assembly at workstations positioned along the conveyor platform, after which boards are automatically transported and loaded into the hot press, followed by automated stacking at the collection station. Multiple boards are processed in single cycles, delivering substantial improvements in production throughput.
2,Integrated Safety and Protection
The automated conveyor line hot press incorporates multiple active protection mechanisms specifically engineered to address the combined risks of high-temperature operation, high-pressure processing, and automated material movement. This comprehensive safety architecture ensures operator protection and sustained equipment reliability across all operational phases.
Hydraulic system monitoring includes oil temperature overheat protection and low fluid level warning functions, providing real-time status assessment with automatic alarm and shutdown activation upon detection of abnormal conditions. The conveying system incorporates overload automatic shutdown, anti-deviation monitoring, and anti-jamming protection—should material jams or excessive loads occur, the system immediately halts operation and triggers warning indicators, preventing motor burnout and drive mechanism damage. The heating system features automatic power interruption and anti-dry-burn protection for overheating conditions, while platen outer edges are equipped with anti-scald insulation treatments that eliminate high-temperature burn risks during routine operations.
3,Wide-Ranging Application Versatility
The implementation of automated conveyor lines has substantially improved production efficiency and quality consistency in panel manufacturing while reducing labor intensity, aligning with the development trends of prefabricated construction and intelligent building methodologies.
Wood-Based Panel Production:
The system produces engineered wood panels including plywood, fiberboard, and particleboard through automated raw material layup and finished board output. The continuous flow architecture ensures consistent quality across production runs while minimizing manual intervention.
Building Material Manufacturing:
Applications extend to insulation boards, door products, and fire-resistant panels, where the automated conveyor line maintains precise process control throughout pressing and curing cycles, ensuring consistent physical properties and dimensional accuracy.
Whole-Home Customization:
For comprehensive residential interior applications, the equipment handles veneer production for custom cabinetry panels, encompassing lamination and assembly operations for wardrobe components, kitchen cabinet elements, shelving units, and diverse storage solutions requiring consistent quality across entire product lines.
4,Easy maintenance and technical support
Regular cleaning of the hot press platen surface, conveyor line rollers, and complete machine body is essential for sustained equipment performance. Particular attention must be directed to removing accumulated dust, adhesive residue, metal particles, wood chips, and panel debris—preventing hard contaminants from scratching the platen surface or roller coverings, and ensuring that board surfaces remain undamaged throughout pressing and conveying operations. This proactive approach to equipment cleanliness directly influences finished product quality and extends the service life of critical components.
Specification
| Stress method | Press down from top to bottom |
| Maximum pressure | 50T |
| Workbench dimensions | 3500mm*1800mm |
| Hot press plate size | 3500mm*1800mm*2pcs |
| Maximum composite panel size | 3300*1600mm |
| Number of layers | 1-layer |
| Spacing | 250mm |
| Heating circulating pump motor |
1.5kw*2pcs |
| Hydraulic system power | 4KW |
| Workbench reducer | 2.2kw*1pcs |
| Fabric rolling motor | 1.5kw*2pcs |
| Brush roller motor | 1.1kw*1pcs |
| Oil cylinder and quantity | 6pcs*70mm*250mm |
| Working pressure of hydraulic system | 50T |
| Heating system | Electric heating heat transfer medium: heat transfer oil (mixed with heat transfer oil) |
| Maximum temperature | 100℃ |
| Feeding roller conveyor frame | 3500*1800*850mm*1pcs |
| Discharge roller conveyor frame | 3500*1800*850mm*1pcs |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
