| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |
Description

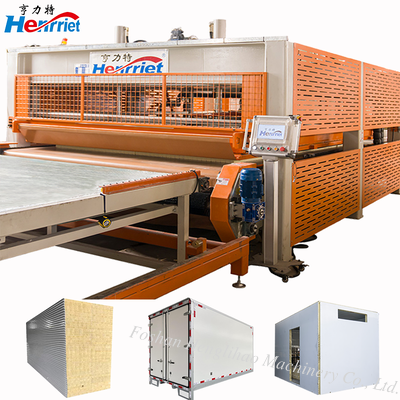

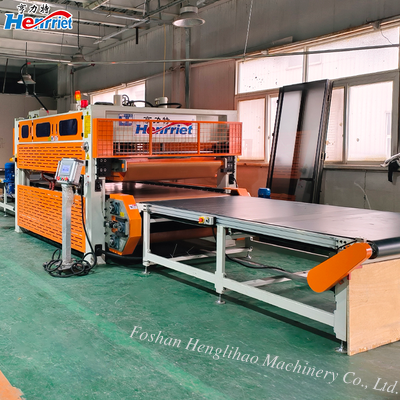

The automatic conveyor line of a hot press machine is a combined production unit that deeply integrates the hot press host and the automated conveyor system. Its core structure consists of a hot press machine body, a feeding and conveying mechanism, a discharging and conveying device, a hydraulic lifting system, and an electrical control system. The equipment adopts a unique "one in, one out" assembly line operation mode. The front and rear work platforms are equipped with hydraulic lifting roller conveyors, which can smoothly feed the pre installed boards into the hot press chamber, and automatically remove the finished boards and transfer them to the next workstation. The hot pressing host and conveyor frame form a collaborative closed-loop operation, realizing the full automation flow from board loading, hot pressing curing to finished product unloading.
Feature
1,Superior production capacity
The core advantage of the automatic conveyor line for hot press machines in terms of production capacity lies in its continuous cycle production mode, which completely changes the traditional intermittent operation mode of manual loading and unloading of hot press machines. The equipment adopts a production method of double-layer pre installation and continuous cycle of foaming and unloading, and the upper and lower layers can work independently or simultaneously, effectively shortening the production cycle. Compared with traditional single machine operations, automatic conveyor lines reduce sheet handling and waiting time. For large format products such as refrigerated compartment panels and cold storage panels, the equipment can be molded in one go, with strong internal bonding and high surface flatness, eliminating quality problems such as bubbles and wrinkles, and greatly improving the yield rate. In large-scale production mode, the automatic conveyor line can seamlessly integrate with the front and rear process equipment to form a complete automated production line, maximizing equipment efficiency.
2,Integrated Safety and Protection
As a complex integrated system, the safety protection of the hot press automatic conveyor line is not simply a combination of individual equipment safety functions, but a carefully designed and interconnected overall safety solution. Both sides of the hot press plate are designed with baffles to prevent personnel from operating it incorrectly. The electrical control system provides overload, short circuit, voltage loss, and undervoltage protection for the equipment, while the intelligent temperature control system automatically alarms and shuts down due to overheating, building a comprehensive safety protection system. The control panel is designed with an emergency brake button, which can quickly stop the machine in case of special circumstances and protect personnel and mechanical equipment.
3,Wide-Ranging Application Versatility
The automatic conveyor line of hot press machine has a wide range of applications in the field of insulation board and special composite board processing due to its continuous production capacity and stable pressing performance. In the manufacturing of refrigerated compartment panels, the equipment is suitable for the hot bonding pressure plate forming of side panels, top panels, bottom panels, door panels and other components of refrigerated containers. The box panels are formed in one go, with firm internal bonding and high overall strength. In the field of cold storage panel production, equipment can be used for composite lamination of cold storage insulation boards. Through uniform heating and high-pressure action, it ensures a strong bond between the insulation core material and the panel, meeting the stringent requirements of cold chain logistics for insulation performance. In terms of processing rock wool insulation boards, the equipment is suitable for the compression molding of rock wool sandwich panels and is widely used for external wall insulation of steel structure buildings. In the field of purification board, equipment can be used for the production of clean board and floating bead glass magnesium board, meeting the strict requirements of clean environment in hospitals, electronic factories and other places.
4,Easy maintenance and technical support
Specification
|
Maximum pressure |
80 T |
| Work platen size | 4600mm*2650mm |
| Systm pressure | 20 MPa |
| Max.platen opening | 300mm |
| Maximum temperature | 100℃ |
| Working level | 1-layer |
| Oil cylinder specification | 350mm*70mm * 6pcs |
| Hydraulic pump power | 5.5kw |
| Hot oil pump power | 2.2kw |
| Heating pipe power | 72kw |
| Overall dimensions | 5750*3553*2300mm |
| Weight (about) | 18000kg |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
