| Brand Name: | Henrriet |
| Model Number: | HRY511-100T/4Layer |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |
Product Description:

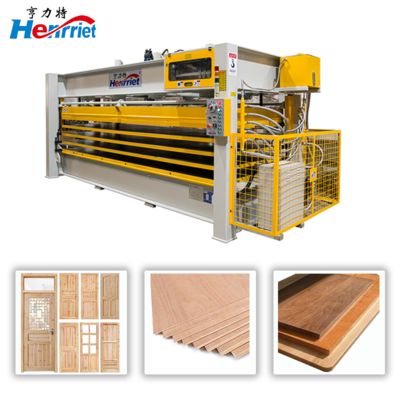

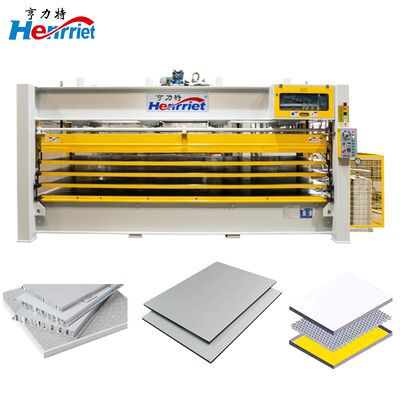

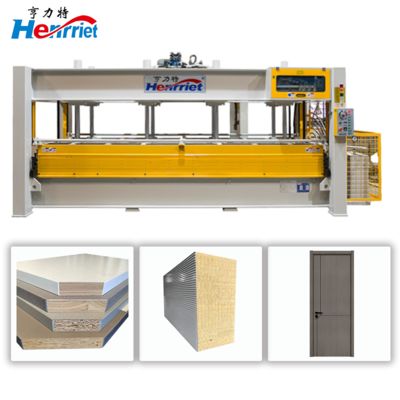

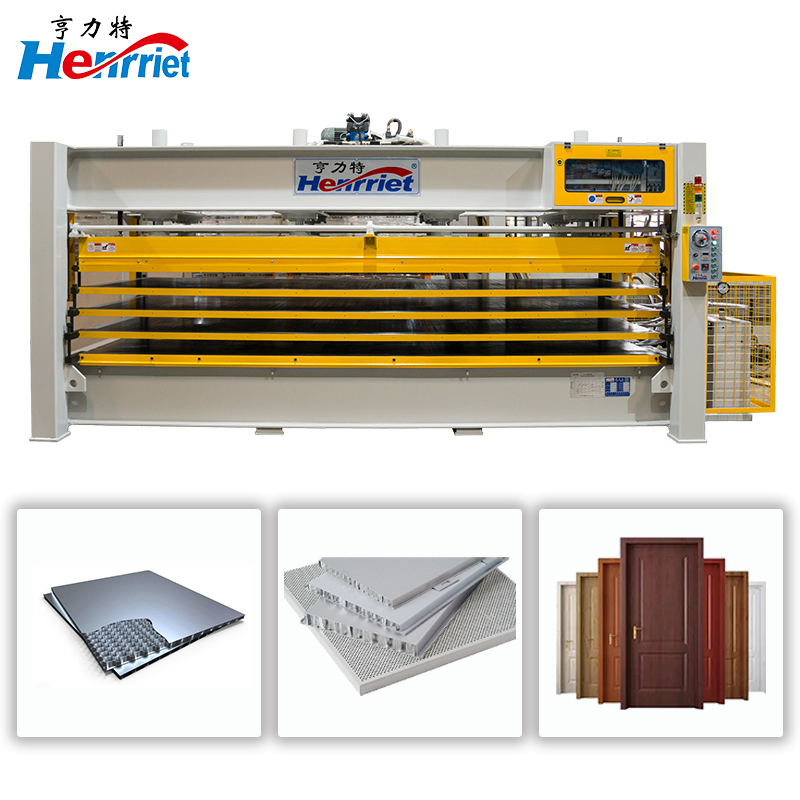

The 4-layer hot press represents a significant advancement in industrial composite processing, utilizing precisely controlled heat and pressure to simultaneously bond and cure multiple material layers. Its core structure incorporates four independently controlled heating platens—arranged in upper, mid-upper, mid-lower, and lower positions—creating four isolated pressing chambers. This configuration enables the simultaneous processing of four panels within a single operational cycle. A synchronized multi-cylinder hydraulic system drives the movable beams, applying consistent pressure across all layers while maintaining uniform force distribution. This design prevents overloading or deformation, ensuring dimensional stability across products. The machine excels in continuous large-scale production of laminated surfaces such as melamine-faced boards, veneered MDF, high-strength multi-ply panels, and customized cabinet and wardrobe components.
Machine parameters
| Max pressuer | 160T |
| Systm pressure | 20mpa |
| Work platen size | 4000*1500*50mm |
| Max.platen opening | 120mm*4Layer |
| Maximum temperature | 100℃(Controllable) |
| Working level | 4 Layer |
| Oil cylinder specification | 110mm*80mm * 8pcs |
| Hydraulic pump power | 7.5kw |
| Hot oil pump power | 3kw |
| Heating pipe power | 54kw |
| Overall dimensions | 55000*2300*2800mm |
| Weight (about) | 20000kg |
Service Support
Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline, respond to repair needs within 48 hours.
Free video training for operators and provision of process guidance manuals.
Lifetime technical support and software upgrade services.
