Description

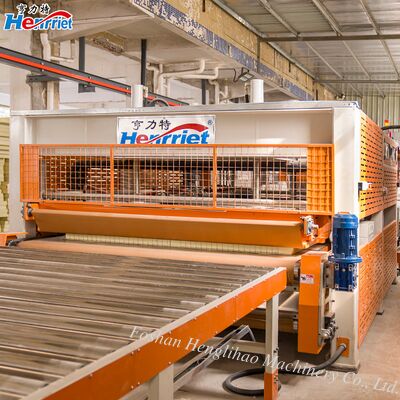

The automatic conveyor line hot press machine represents a fully integrated production unit that seamlessly combines the hot press host with an automated material handling system. Its comprehensive architecture encompasses the hot press machine body, feeding conveyor mechanism, discharging conveyor device, hydraulic lifting system, and intelligent electrical control network. The equipment operates on an innovative "one-in, one-out"pipeline production flow, where both front and rear work platforms incorporate hydraulic lifting roller conveyors. This configuration enables smooth transfer of pre-assembned panel stacks into the hot press chamber, followed by automatic removal of finished boards and seamless transfer to subsequent workstations. The conveying system features an air-cushion roller design throughout its internal structure, effectively minimizing frictional resistance during template movement while significantly extending operational service life through reduced mechanical wear. The hot press host and conveyor framework operate in coordinated closed-loop synchronization, achieving complete automation across the entire production sequence from panel loading through hot pressing consolidation to finished product discharge.
Feature
1,Superior production capacity
The automatic conveyor line design fundamentally overcomes the inherent limitations of conventional single-machine production configurations, enabling true continuous high-volume manufacturing operations. The seamless interface between conveyor framework and hot press machine achieves fully automatic panel feeding, precision positioning, hot pressing consolidation, and finished output without manual intervention. This integrated workflow dramatically reduces inter-process interval times, resulting in substantial production efficiency improvements compared to traditional batch processing methods.
The equipment incorporates advanced insulation materials combined with high-efficiency heating elements, achieving significantly reduced energy consumption profiles compared to conventional systems. Extended operational use translates into substantial reductions in ongoing operating costs, improving overall manufacturing economics. Servo motor-driven precision pressure control delivers both energy efficiency and exceptional force accuracy, supporting simultaneous multi-layer hot pressing operations that exponentially increase production capacity within the same facility footprint.
2,Integrated Safety and Protection
Based on the integrated continuous production characteristics of hot press and conveyor line systems, a comprehensive four-layer closed-loop safety protection architecture encompassing mechanical, hydraulic, electrical, and transmission systems has been engineered specifically for heavy-duty panel conveying combined with high-temperature and high-pressure hot pressing operations. This multi-layered approach ensures complete coverage across all phases of production line operation.
The entire automated production line is fully enclosed by robust safety fencing, achieving complete physical isolation between operating personnel and hazardous movement zones. This fundamental separation eliminates risks associated with operator proximity to high-temperature platens and moving mechanical components throughout normal production cycles.
3,Wide-Ranging Application Versatility
A single machine configuration addresses diverse manufacturing requirements across building curtain wall fabrication, interior architectural finishing, integrated ceiling systems, advertising signage production, and rail transportation equipment manufacturing. From lightweight honeycomb core materials to solid wood veneer panels, from flat sheet components to curved surface elements, and from high-volume standardized production to customized specialty orders, the hot press automatic conveyor line delivers automated, continuous, damage-free hot pressing composite solutions. This comprehensive capability enables enterprises to transition from labor-intensive manufacturing operations to intelligent metal composite panel supply organizations serving sophisticated market requirements.
4,Easy maintenance and technical support
Specification
|
Maximum pressure |
80 T |
| Work platen size | 4600mm*2650mm |
| Systm pressure | 20 MPa |
| Max.platen opening | 300mm |
| Maximum temperature | 100℃ |
| Working level | 1-layer |
| Oil cylinder specification | 350mm*70mm * 6pcs |
| Hydraulic pump power | 5.5kw |
| Hot oil pump power | 2.2kw |
| Heating pipe power | 72kw |
| Overall dimensions | 5750*3553*2300mm |
| Weight (about) | 18000kg |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
