Description

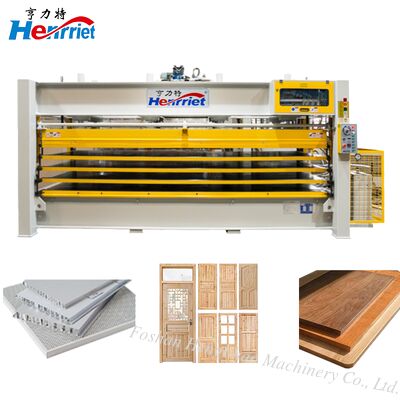

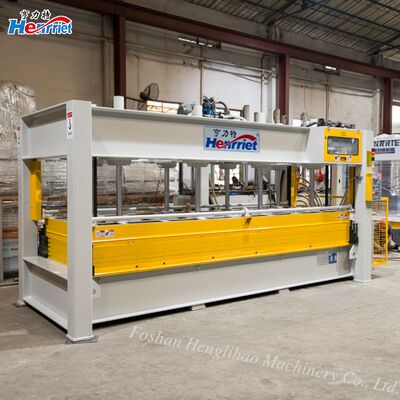

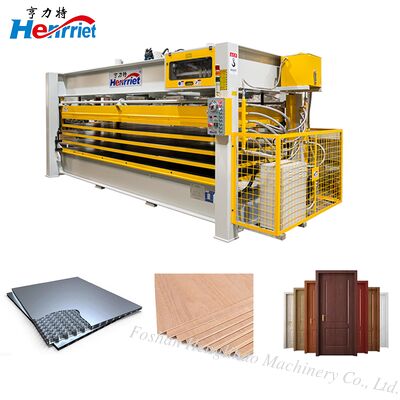

The four-layer hot press machine represents a significant advancement in large-scale production equipment, specifically engineered to address the demanding manufacturing requirements of metal and composite building panels—including aluminum-plastic composites, fire-resistant aluminum honeycomb structures, and corrugated composite boards. The machine employs an innovative "four-layer vertical stacking with independent station temperature control" architecture, integrating four vertically distributed hydraulic drive pressing systems alongside partitioned thermal fluid circulation heating networks. This sophisticated configuration enables simultaneous processing across multiple layers while maintaining precise independent control over thermal conditions at each station.
Feature
1,Superior production capacity
The advanced temperature control system accelerates adhesive curing processes while maintaining exceptional pressure uniformity across all pressing layers, achieving high-standard production efficiency without compromising quality. In large-scale continuous production environments, the equipment rapidly completes diverse pressing operations—including wooden door assemblies, medical-grade door panels, plywood stacks, multi-layer composite boards, manually assembled cleanroom panels, sandwich-structured composites, and complete roof panel systems. This parallel processing capability substantially reduces per-unit manufacturing costs while significantly improving order fulfillment rates and production throughput.
2,Integrated Safety and Protection
The operator control panel features prominently positioned emergency brake controls, enabling instantaneous one-touch emergency stopping under any exceptional circumstances. This critical safety feature provides maximum protection for both production personnel and equipment assets, ensuring rapid response capability when unexpected situations arise.
Electronic rope protection shutdown systems are strategically arranged along equipment danger zones, providing accessible emergency stopping capability regardless of operator positioning. Personnel need only pull the rope line installed along the machine body to trigger immediate emergency shutdown, eliminating response time delays associated with reaching fixed control stations.
The over-travel automatic protection system continuously monitors platen movement against established electronic thresholds. Should travel exceed preset safety boundaries, the system instantly triggers equipment cessation and simultaneously isolates the complete machine heating system, preventing further operation until the condition is investigated and resolved.
3,Wide-Ranging Application Versatility
The four-layer hot press machine, combining efficient multi-layer architecture with uniform heating performance and precision pressure control, demonstrates exceptional utility across wood processing, engineered panel manufacturing, furniture production, and composite material forming applications.
Door Manufacturing Applications
In door production environments, the equipment excels at veneer application and lamination for wooden doors and medical-grade door panels. Uniform heating ensures door leaf surfaces remain completely free from bubble formation and adhesive bleed-through, satisfying the stringent durability and cleanliness requirements essential for high-traffic environments including healthcare facilities.
Engineered Panel Primary Processing
For engineered wood panel foundation manufacturing, the system enables large-scale hot pressing production of plywood stacks, multi-layer composite boards, and large-core structural panels. The four-layer simultaneous pressing capability, combined with uniform pressure distribution, ensures robust interlayer bonding with minimal thickness variation—particularly valuable for demanding applications such as concrete forming panels and structural sheathing where consistent strength characteristics are essential.
4,Streamlined Maintenance and Service Support
Hydraulic Fluid Condition Monitoring:
Regular verification of hydraulic reservoir fluid levels confirms they remain within specified operating ranges. Visual observation of fluid color provides essential diagnostic information; any indications of emulsification, discoloration, or darkening warrant immediate consideration of fluid replacement to prevent system degradation.
Core Component Quality Assurance:
The hydraulic system represents the operational heart of the equipment, with service life intimately connected to fluid cleanliness and systematic maintenance practices. Critical components including pump assemblies and valve groups are sourced from internationally recognized manufacturers, engineered for extended design life through superior materials and precision manufacturing.
Specification
|
Maximum pressure |
160 T |
| Systm pressure | 20 mpa |
| Work platen size | 4000*1500*50mm |
| Max.platen opening | 120mm * 4-layer |
| Maximum temperature | 100℃ |
| Working level | 4-layer |
| Oil cylinder specification | 110mm*80mm * 8pcs |
| Hydraulic pump power | 7.5kw |
| Hot oil pump power | 3kw |
| Heating pipe power | 54kw |
| Overall dimensions | 55000*2300*2800mm |
| Weight (about) | 20000 kg |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
