| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |

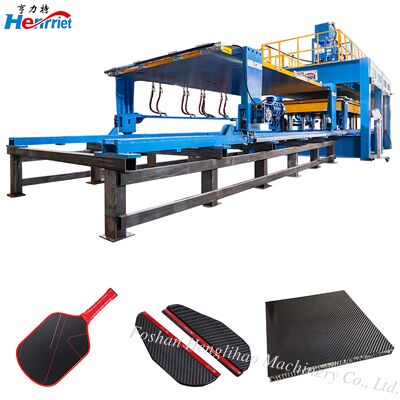

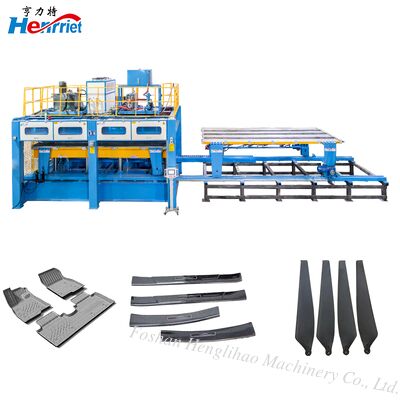

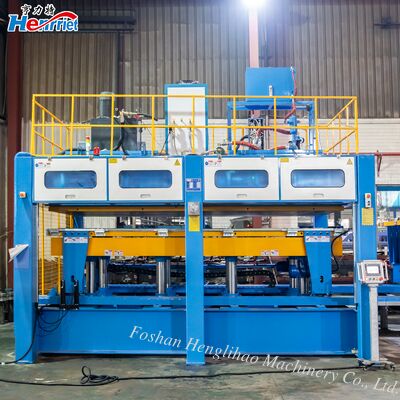

This cutting-edge hot press solution fuses a central hot press unit with a dual-stage slide table conveyor, orchestrating a fluid production rhythm for high-output manufacturing. Its structural blueprint seamlessly blends a meticulously engineered hot press frame, twin dynamic slide tables, a harmonized conveyor network, hydraulic lifting modules, and a unified control system.
The bifurcated layout partitions the workflow into three distinct realms: primary material preparation, secondary material staging, and active compression zones. Operators can load and unload materials at one station while the counterpart undergoes thermal compression, facilitating uninterrupted "load-press" cycles. Upon completion of the compression phase, the slide table autonomously transitions, eradicating the idle intervals inherent in single-station setups.
Optimized Production Throughput. The system's hallmark is its dual-station alternating workflow, where slide tables glide seamlessly between preparation and compression zones with minimal transition latency. Integrated with an automated conveyor framework, this setup enables end-to-end automation—from panel feeding and alignment to curing and discharge. The tight synchronization across processes truncates production cycles, metamorphosing batch processing into a fluid, non-stop operation.
Engineered for high-temperature, high-pressure environments with dual-station dynamics, the system incorporates:
The system excels in crafting superior wood veneer panels including solid wood lamination on MDF and customized batch flexibility. The dual-station independent operation adapts to small-batch, high-complexity orders while maintaining precise temperature/pressure control to preserve natural grain textures.
Comprehensive maintenance protocols including pre-operation checks, mechanical lubrication, hydraulic health monitoring, and sensor calibration to ensure optimal performance and longevity.
| Maximum pressure | Push down and up |
| Workbench dimensions | 250 T |
| Mobile carrier template size | 4560mm × 2160mm × 1 pc |
| Actual composite size | 4560mm × 2160mm × 2 pcs |
| Plate thickness | 4360mm × 2060mm |
| Number of layers | Fixed workbench: 50mm × 1 piece Mobile loading template: 70mm × 2 pieces |
| Spacing | 1-layer |
| Heating cycle motor power | 3kw |
| Motor power of hydraulic system | 7.5kw |
| Oil cylinder specification | 8 pcs × 150mm |
| Heating system power | 72KW |
| Power for movable sliding platform | 2.2KW × 4 pcs |
| Cooling method | 6-power refrigeration unit |
| Control system | PLC + touch screen |
| Maximum temperature | 80℃ |
| Total power | 73.3KW |
| Height of movable workbench above ground | 940mm |
