| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |
Description

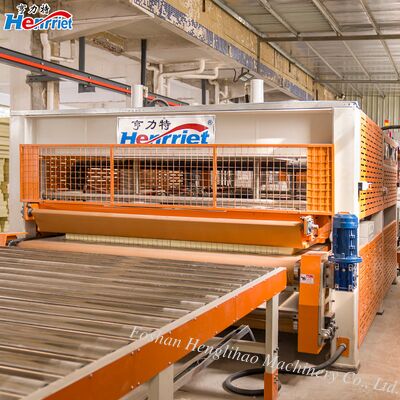

The automatic conveyor line for hot press systems represents a fully synchronized production ecosystem—merging the core pressing unit with an intelligent material handling solution. At its heart lies a unified architecture comprising the hot press frame, precision feeding and discharge conveyors, hydraulic elevation modules, and an advanced electrical control network. Operating under a streamlined “single-in, single-out” workflow, the system utilizes hydraulically lifted roller platforms at both ends to gently guide pre-assembled panels into the pressing chamber and seamlessly extract finished products for downstream processing.
Internally, the conveying mechanism features an air-cushion roller design that minimizes surface friction during panel transport, significantly reducing wear on both materials and machinery while preserving surface integrity. This integration creates a closed-loop, end-to-end automation cycle—from loading and thermal curing to unloading—eliminating manual intervention and ensuring consistent throughput.
Feature
1,Superior production capacity
2,Integrated Safety and Protection
3,Wide-Ranging Application Versatility
The hot press production line demonstrates exceptional capabilities across diverse decorative panel veneer applications. In the processing of wood-grain imitation panels, the equipment excels at laminating various decorative paper overlays and melamine-impregnated surfaces. Uniform thermal distribution ensures consistent adhesion between printed wood-grain papers and substrate materials, producing surfaces that are smooth and visually flawless—making this system highly valued in furniture manufacturing and interior finishing industries.
For natural veneer panel production, the system handles pressing applications involving solid wood veneers and engineered wood surfaces. Whether working with natural or manufactured thin wood layers, the equipment achieves reliable adhesion to substrate materials, resulting in high-end decorative panels that authentically replicate solid wood aesthetics while delivering enhanced dimensional stability and consistent surface quality.
4,Easy maintenance and technical support
Specification
|
Maximum pressure |
80 T |
| Work platen size | 4600mm*2650mm |
| Systm pressure | 20 MPa |
| Max.platen opening | 300mm |
| Maximum temperature | 100℃ |
| Working level | 1-layer |
| Oil cylinder specification | 350mm*70mm * 6pcs |
| Hydraulic pump power | 5.5kw |
| Hot oil pump power | 2.2kw |
| Heating pipe power | 72kw |
| Overall dimensions | 5750*3553*2300mm |
| Weight (about) | 18000kg |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
Service Support
Scope of Application
Production workshop actual shooting
Product details
Company Introduction
Corporate Advantages
Visitors and Communication
Production level and manufacturing process
Exhibition and Exchange
Packaging and Logistics
Certificates and Honors
