Description

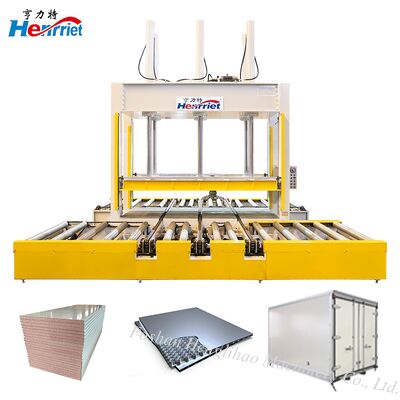

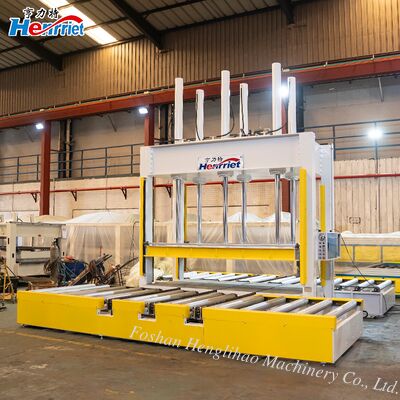

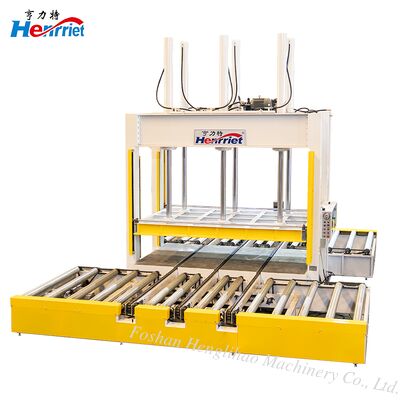

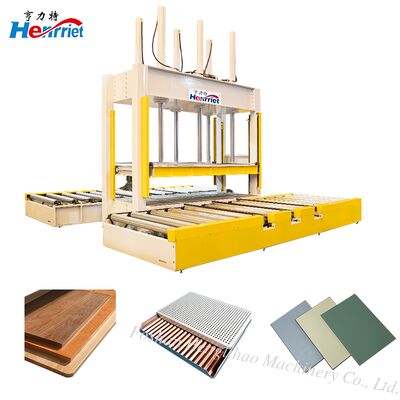

The heavy-duty double-sided automatic conveying cold press represents a significant advancement in continuous pressing technology, specifically engineered to address the demanding production requirements of large-format and thick-specification panels. This sophisticated hydraulic system integrates multiple core subsystems—including a high-capacity hydraulic power unit, ultra-rigid machine frame, dual-sided automatic conveying mechanism, precision-ground pressing platen, and intelligent programmable control architecture. The hydraulic configuration employs a multi-cylinder array layout featuring large-diameter cylinder assemblies, providing ample force capacity to satisfy the high-pressure consolidation requirements of demanding applications such as marine-grade panels and medical facility doors.
Feature
1,Superior production capacity
The fundamental production advantage of the slide table cold press resides in its ability to dramatically reduce non-productive handling time associated with large-format material loading and unloading. Traditional cold press configurations require operators to maneuver oversized aluminum or honeycomb panels within the confined interior space of the machine—a physically demanding process characterized by restricted visibility, awkward positioning, and inherently low throughput efficiency. This conventional approach creates significant bottlenecks in high-volume production environments where rapid material cycling is essential.
With the slide table design, the work surface extends outward to provide operators with unobstructed access in a spacious, well-lit area. Material assembly and precise positioning occur in this optimized ergonomic zone, after which the operator initiates automated table retraction and pressing cycles. For continuous production runs of large-format panels such as aluminum honeycomb structures and corrugated composites, this workflow transformation eliminates substantial loading and unloading time from each cycle, resulting in significantly enhanced daily output capacity while reducing operator fatigue and material handling risks.
2,Integrated Safety and Protection
The over-travel protection system implements dual-safeguard functionality through coordinated operation of position-limiting switches and pressure-based upper limit monitoring. The moving platen incorporates multi-stage limit protection, with automatic power interruption and motion cessation triggered when piston travel reaches predefined boundaries, preventing mechanical over-travel damage to equipment components.
Concurrently, the system enables configuration of maximum pressure thresholds appropriate to specific workpiece requirements. When operating pressure exceeds these preset values, automatic shutdown and pressure relief sequences initiate, protecting both equipment integrity and work-in-progress materials. This protective feature is particularly critical for heavy panel applications where excessive pressure could result in catastrophic workpiece fracture, preventing material losses and maintaining production safety.
3,Wide-Ranging Application Versatility
Comprehensive Application Coverage – From Engineered Wood to Specialty Doors
This heavy-duty double-sided automatic conveying cold press delivers continuous automated production capability, robust material handling capacity, and precision uniform compression performance across diverse panel categories. Its comprehensive application coverage establishes it as the preferred core equipment for panel processing facilities, door manufacturing operations, and engineering component fabricators pursuing automated mass production capabilities.
Engineered Wood Product Manufacturing
The system demonstrates exceptional suitability for continuous pressing, lamination, shaping, and cold-curing consolidation of engineered wood panels including plywood, multi-layer composites, particleboard, fiberboard, ecological boards, and custom substrate materials for whole-home applications. The double-sided conveyor architecture enables seamless integration with upstream coating and layup lines, facilitating, fully automated continuous production that significantly elevates both automation levels and throughput efficiency in engineered wood manufacturing operations.
Door Production and Fabrication
Specialized application in door manufacturing encompasses laminated veneer production for solid wood doors, engineered wood composites, prefinished units, fire-rated assemblies, medical facility doors, cleanroom-compatible panels, and security-grade entrance systems. The heavy-duty conveying system accommodates full door bodies with precise alignment and balanced loading, ensuring finished surfaces remain free from hollow spots or warping. This capability is particularly critical for medical and cleanroom door applications where stringent flatness and surface integrity standards must be consistently achieved across large-scale production runs.
4,Streamlined Maintenance and Service Support
Monthly preventive maintenance procedures include replacement of hydraulic system return line filter elements, cleaning of suction strainers and reservoir filter screens, and removal of accumulated particulates and dust from tank bottom surfaces. These measures ensure unrestricted hydraulic fluid flow and maintain system cleanliness.
Thorough inspection of the double-sided conveyor line's drive mechanisms, roller bearings, and chain sprocket assemblies verifies operational integrity. Maintenance activities include tightening connecting hardware, adjusting chain tension to optimal specifications, and replenishing specialized lubricants to all moving components.
Specification
|
Maximum pressure |
160 T |
| Pressure plate size | 3300*1800mm |
| Maximum opening distance | 1800mm |
| Hydraulic cylinder specifications | 6pcs(140*100*1800mm) |
| Specification of track oil cylinder | 10pcs (80X30mm) |
| Power | 5.5kw |
| Maximum pressure | 17.5MPA |
| Overall dimensions | 3850X5600X4750mm |
| Weight (approximately) | 9200KG |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
