| Brand Name: | Henrriet |
| Model Number: | HLY-50T |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T,MoneyGram |

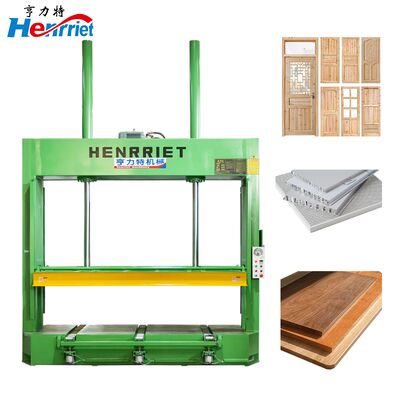

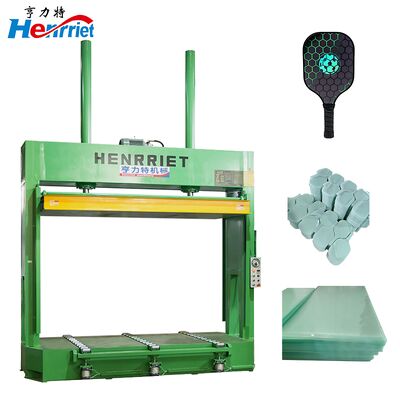

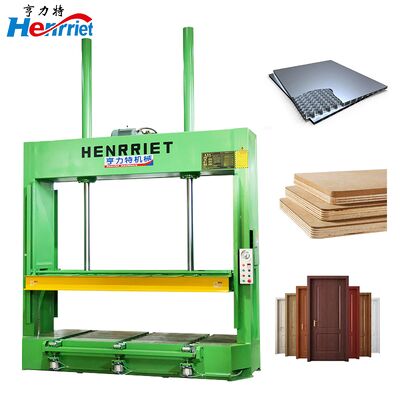

Automatic Conveyor Track Fireproof Wooden Door Honeycomb Board Pickleball Paddle Glued Board Hydraulic Cold Press Machine
Product Description:

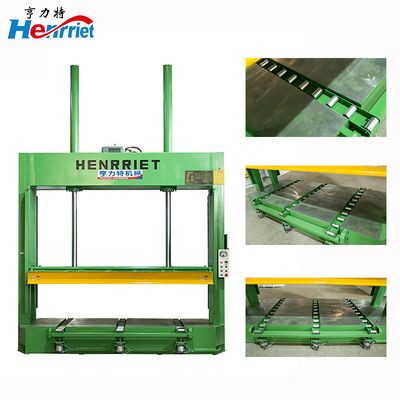

This green double oil cylinder hydraulic cold press with track is equipped with a conveyor track compared to ordinary hydraulic cold press. Accelerated the efficiency of material entry and exit, saving physical labor for people. Its working principle is that the hydraulic system converts mechanical energy into hydraulic energy, and then converts hydraulic energy into mechanical force for linear motion, achieving processes such as pressing, forming, stamping, and straightening of workpieces. Used for cold pressing or hot pressing of plywood, LVL (laminated veneer lumber), and wood plastic composite materials.
Machine parameters
| Maximum Pressure | 50 T (customizable) |
| Worktable Sizes | 2800mm*1300mm (customizable) |
| Maximum Processing Thickness | 1000mm, 1300mm, 1500mm(customizable) |
| Power supply | 380V/50Hz, three-phase |
| Power | 4KW (customizable) |
| Dwell time | 0-99.99 hours (Adjustable) |
| Platen lift speed | 10-12mm/s |
| Pressure accuracy | ±1% (ISO-compliant) |
| Size | 3300*1300*3800mm |
| Weight | 2300KG |
Service Support
Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline, respond to repair needs within 48 hours.
Free video training for operators and provision of process guidance manuals.
Lifetime technical support and software upgrade services.
