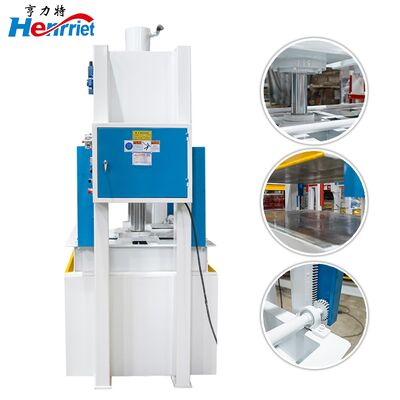

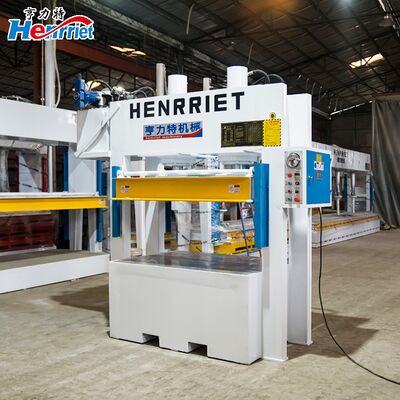

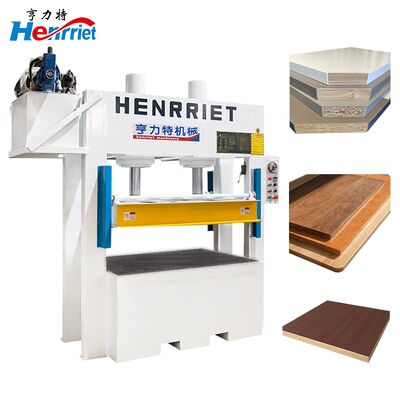

Hydraulic Plywood Laminate Pressing Machine 4KW Cold Press Lamination Machine Mini

Brand Name:	Henrriet
Model Number:	HLY-50T
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

Plywood Laminate Pressing Machine

Work Plate Size:

1250*1250mm

Max Pressure:

50T

Slide Stroke:

1000mm/1300mm/1500mm

Power:

4KW

Oil Cylinder Size:

125*2pcs

Warranty:

1 Year

Weight:

1000KG

Packaging Details:

Film with Foam

Highlight:

Hydraulic Plywood Laminate Pressing Machine

Plywood Laminate Pressing Machine 4KW

Cold Press Lamination Machine Mini

Product Description

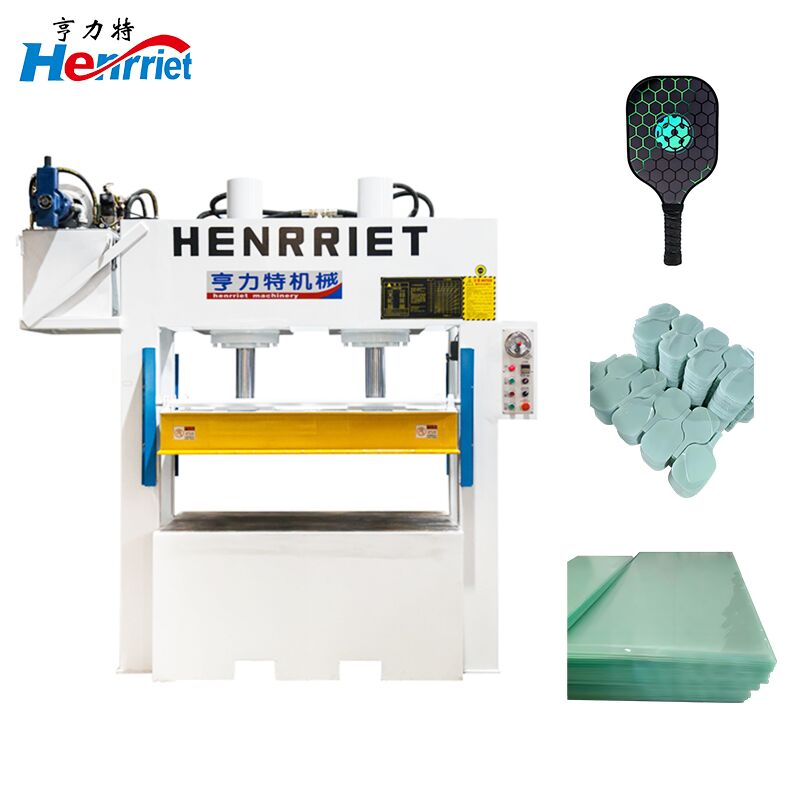

Mini hydraulic cold press machine for precision processing of Pick racket plywood

Product Description:

The mini hydraulic cold press is engineered to meet the specific requirements of pickleball paddle lamination, delivering both high output and consistent accuracy. Its multi-cylinder synchronous hydraulic system ensures even pressure distribution across the entire pressing surface. This results in robust bonding between various core materials—such as wood, polymer foam, and carbon fiber—and surface layers like graphite or fiberglass, while maintaining minimal deviation in pressure control.

The press supports rapid cycling and adaptable process settings, enabling quick transitions between different paddle designs and layering sequences. This flexibility allows manufacturers to maintain high throughput without sacrificing layer alignment or interlaminate strength, making the system suitable for both short runs and continuous production.

Integrated Safety & Protection

Operator safety is fundamental to the press’s design, which incorporates automatic overpressure protection and hydraulic shut-off valves. These features prevent motor overloading and potential damage to critical components during prolonged operation. The system is equipped with multiple electrical safeguards, including emergency stop controls and voltage stabilization, to ensure a secure working environment.

In addition, the press is built with protective guarding and safety interlocks that trigger immediate shutdown if an anomaly is detected. This layered approach to safety minimizes risks to personnel and equipment in fast-paced manufacturing settings.

Dedicated Application Range

Core-to-surface lamination for foam, wood, or composite cores with graphite or fiberglass faces.Edge compression and sealing to improve durability and moisture resistance.Its compatibility with a range of materials and layer configurations allows pick racket manufacturer to achieve high bond strength, smooth finish, and consistent quality across all products.

Streamlined Maintenance & Support

Designed for minimal maintenance and long-term reliability, the press features a fully sealed hydraulic system that reduces leakage risks and extends service intervals. Routine tasks such as filter inspection and lubrication are simplified for quick execution.

An integrated fault alert system provides real-time diagnostics and one-touch reset options, allowing operators to rapidly address issues without prolonged downtime. With accessible components and clear service guidelines, the press maintains high operational availability and lower cost of ownership.

Machine parameters

Maximum Pressure	50 T (customizable)
Worktable Sizes	1250mm*1250mm (customizable)
Maximum Processing Thickness	1000mm, 1300mm, 1500mm
Power supply	380V/50Hz, three-phase
Power	4kW (customizable)
Dwell time	0-99.99 hours (Adjustable)
Platen lift speed	10-12mm/s
Pressure accuracy	±1% (ISO-compliant)
Size	1500mm × 500mm × 1900mm
Weight	1000KG

Service Support

Warranty: 1 year

Packaging: Film with foam

24-hour customer service hotline, respond to repair needs within 48 hours.

Free video training for operators and provision of process guidance manuals.

Lifetime technical support and software upgrade services.
