Description

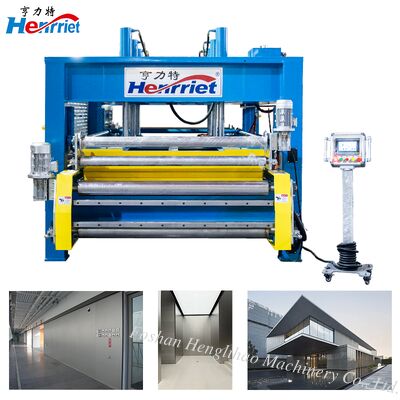

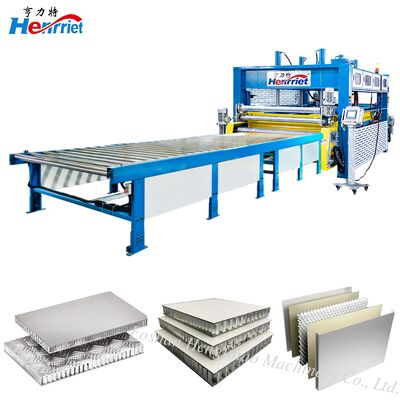

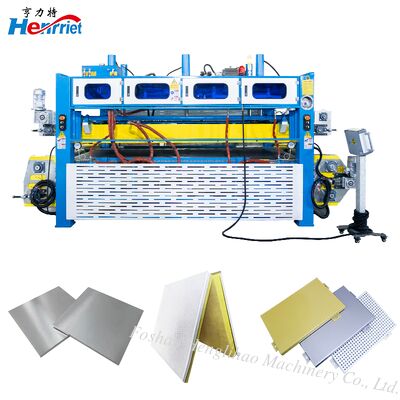

The automatic conveyor line for hot press systems represents a fully synchronized manufacturing solution—seamlessly blending the core pressing unit with an intelligent material transport system. This integrated production cell is composed of a robust hot press frame, precision feeding and discharge conveyors, a hydraulic elevation mechanism, and a centralized electrical control platform. Operating under a streamlined “single-in, single-out” workflow, it features hydraulically adjustable roller platforms at both ends, enabling smooth insertion of pre-assembled panels into the pressing chamber and effortless ejection of finished products directly to downstream stations.
Feature
1,Superior production capacity
2,Integrated Safety and Protection
Recognizing the inherent risks of high-temperature, high-pressure environments combined with dynamic automation, the system embeds multiple proactive safety layers:
Hydraulic health monitoring: Real-time tracking of oil temperature and level triggers automatic shutdowns if overheating or low fluid conditions arise.
Conveyor protection: Built-in anti-jam, anti-deviation, and overload sensors halt operations instantly upon detecting blockages or excessive load, preventing motor damage or belt failure.
Thermal safeguards: The heating circuit includes overheat cutoff and dry-burn prevention logic, while pressure plate edges are wrapped in heat-resistant, anti-scald insulation to protect personnel.
These measures ensure both operator well-being and uninterrupted machine reliability—even under 24/7 production demands.
3,Wide-Ranging Application Versatility
This production line excels in fabricating high-performance architectural panels:
Aluminum honeycomb composites: Uniform heat and pressure fuse lightweight cores with metal skins, yielding rigid yet featherlight curtain wall panels ideal for airports, transit hubs, and stadiums.
Specialty metal laminates: Capable of processing fire-retardant aluminum composites, stainless steel honeycomb panels, and antimicrobial variants—widely used in premium façades, interior partitions, and transportation interiors like rail cars and luxury coaches.
4,Easy maintenance and technical support
Consistent output quality depends on disciplined upkeep. Daily cleaning of the hot press platens, rubber-coated conveyor drums, and machine surfaces is essential to remove dust, adhesive residue, wood chips, or metallic fragments. Left unchecked, these contaminants can scratch delicate surfaces or mar finished panels during pressing and transport. Regular inspection and lubrication of moving parts, along with prompt removal of debris from guide tracks, further ensure smooth, quiet, and precise operation over years of service.
Specification
| Stress method | Press down from top to bottom |
| Maximum pressure | 50T |
| Workbench dimensions | 3500mm*1800mm |
| Hot press plate size | 3500mm*1800mm*2pcs |
| Maximum composite panel size | 3300*1600mm |
| Number of layers | 1-layer |
| Spacing | 250mm |
| Heating circulating pump motor |
1.5kw*2pcs |
| Hydraulic system power | 4KW |
| Workbench reducer | 2.2kw*1pcs |
| Fabric rolling motor | 1.5kw*2pcs |
| Brush roller motor | 1.1kw*1pcs |
| Oil cylinder and quantity | 6pcs*70mm*250mm |
| Working pressure of hydraulic system | 50T |
| Heating system | Electric heating heat transfer medium: heat transfer oil (mixed with heat transfer oil) |
| Maximum temperature | 100℃ |
| Feeding roller conveyor frame | 3500*1800*850mm*1pcs |
| Discharge roller conveyor frame | 3500*1800*850mm*1pcs |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
