Description

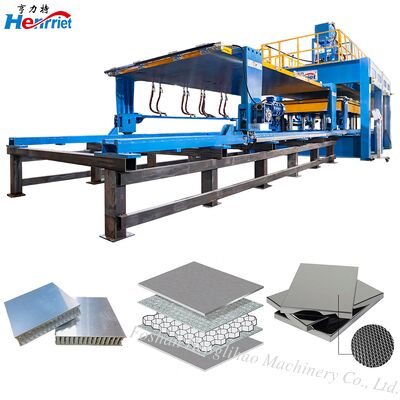

The dual-station movable shuttle table hot press represents a fully integrated production platform that combines a heavy-duty hot press with a synchronized dual-station material handling system. Its comprehensive architecture comprises the main press structure, two independently movable shuttle tables, a hydraulic lifting mechanism, integrated conveying equipment, and a centralized control network. The system operates on an innovative dual-workstation configuration where the overall workspace is divided into two distinct material preparation zones alongside a central pressing area. Two independently controlled shuttle tables alternate between the preparation zones and the pressing station, enabling a continuous "prepare one, press one" operational rhythm. While one table undergoes hot pressing cycles within the main press, operators can simultaneously load and unload materials at the adjacent preparation station. Upon completion of the pressing cycle, the tables automatically exchange positions, effectively eliminating the idle waiting periods inherent to conventional single-station equipment configurations.
Feature
1,Superior production capacity
The core productivity advantage of the dual-station movable shuttle press resides in its continuous alternating operational pattern, where the movable tables transition smoothly between stations with minimal switching intervals. When integrated with automated conveyor frameworks, the system achieves fully automated material feeding, precise positioning, controlled pressing, and finished product discharge—all with tightly synchronized process sequencing that substantially reduces overall cycle duration.
This alternating station architecture ensures that the pressing unit operates continuously without interruption, as material preparation occurs in parallel with active pressing cycles. The result is significantly enhanced daily output capacity compared to conventional single-station configurations, making the system particularly well-suited for high-volume production environments where sustained throughput is essential.
2,Integrated Safety and Protection
The dual-station movable shuttle press incorporates multiple active protection mechanisms specifically engineered to address the combined risks of high-temperature operation, high-pressure processing, and alternating station movement. This comprehensive safety architecture ensures both operator protection and sustained equipment reliability throughout all operational phases.
Regardless of equipment state—whether shuttle tables are in motion, platens are lifting or descending, or material conveying is active—activation of any emergency stop control instantly interrupts all electrical power, isolates the main hydraulic circuit, and disconnects heating system supply. The shuttle tables immediately lock in position and cease movement, the press platen is secured by bidirectional hydraulic locks, and the conveyor system halts all motion, achieving rapid termination of all active operations.
Each pressing layer incorporates both electronic sensing limits and mechanical hard stops, providing redundant protection against over-travel conditions. Should any movement exceed established thresholds, the system immediately halts operation, triggers warning indicators, and engages physical locking mechanisms. Both ends of the dual shuttle table assembly are equipped with high-precision electronic limit switches combined with mechanical anti-collision blocks, preventing over-travel impacts during table transitions. The conveyor system incorporates separate over-travel limits and anti-deviation protection to ensure reliable material tracking throughout the production cycle.
3,Wide-Ranging Application Versatility
Extensive Application Versatility – Comprehensive Coverage Across Core Industries
This dual-station movable shuttle hot press, combining alternating station continuous operation capability with precision temperature and pressure control performance, achieves comprehensive coverage across core application areas. The system serves as preferred equipment for building curtain wall fabrication, aerospace component manufacturing, insulation engineering, and architectural finishing enterprises pursuing production capability upgrades.

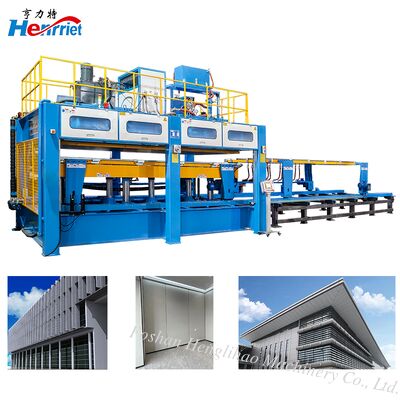

Building Curtain Wall Engineering
The system excels at continuous hot pressing production of curtain wall components including corrugated composite panels, sandwich insulation aluminum boards, and metal honeycomb composite structures. The alternating station design ensures uninterrupted pressing cycles, maintaining consistent throughput for large-scale curtain wall projects.
Architectural Finishing and Commercial Spaces
For decorative panel applications, the equipment handles hot pressing of paper honeycomb panels, lightweight composite decorative boards, and interior wall cladding systems. The dual-station continuous operation capability enables rapid response to bulk orders for hospitality environments, corporate office developments, and luxury residential projects, while scratch-resistant surface protection preserves decorative finish integrity throughout processing.
4,Easy maintenance and technical support
Scientific maintenance practices are essential for ensuring sustained equipment stability and extending operational service life. Pre-startup procedures include thorough cleaning of dual-station shuttle tracks, roller assemblies, and hot press platen surfaces to remove any debris or adhesive residue that could compromise sliding smoothness or thermal transfer efficiency.
Shuttle table switching mechanisms require verification of smooth, unrestricted movement, with confirmation that track surfaces remain free of foreign material obstructions. Mechanical components including guide rails, chain drives, and bearing assemblies benefit from regular application of specialized lubricating compounds to reduce frictional resistance and extend component service life.
Specification
| Maximum pressure | Push down and up |
| Workbench dimensions | 250 T |
| Mobile carrier template size | 4560mmX2160mm*1 pcs |
| Actual composite size | 4560mm*2160mm*2pcs |
| Plate thickness | 4360mm*2060mm |
| Number of layers |
Fixed workbench: 50mm x 1 piece Mobile loading template: 70mm x 2 pieces |
| Spacing | 1-layer |
| Heating cycle motor power | 100mm |
| Motor power of hydraulic system | 3kw |
| Oil cylinder specification | 7.5kw |
| Heating system power | 8pcs*150mm |
| Power for entering and exiting the movable sliding platform |
72KW |
| Cooling method | 2.2KW*4pcs |
| Control system | 6-power refrigeration unit |
| Maximum temperature | PLC+touch screen |
| Total power | 80℃ |
| Height of the movable workbench above the ground |
73.3KW |
| Maximum pressure | 940mm |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
Service Support
Scope of Application
Product Display

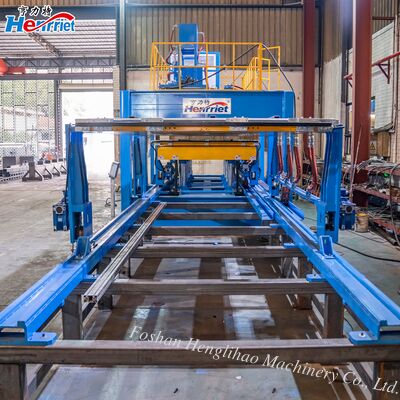

Production workshop actual shooting
