400 Ton Hydraulic Hot Press Machine with 2700×2600mm Pressing Area for Flax Felt Lamination

400 Ton Hydraulic Hot Press Machine with 2700×2600mm Pressing Area for Flax Felt Lamination

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Pressure Mode:

Top‑down Pressing Type

Maximum Pressure:

400Ton

Dimensions Of The Upper And Lower Workbenches:

2700mmX2600mm

Thickness Of Upper Pressure Plate:

70mmX2pcs

Maximum Size Of Product:

2400mmX2400mm 1 Pc

Number Of Layers:

1‑layer

Opening Spacing:

0-250mm

Hydraulic System Motor Power:

7.5kw

Oil Cylinder And Quantity:

Main Cylinders: 9 Pcs, 180mm×250mmAuxiliary Cylinders: 4 Pcs, 60×90×250mm

Maximum Temperature:

250°C

Heating Power:

72KW*2

Heating Cycle Power:

5.5KW

Conveyor Belt Of Hot Press Host:

Upper & Lower Teflon Coating

Transmission Power:

Upper Conveyor Belt: 5.5 kWLower Conveyor Belt: 4 kW

Overall Dimensions:

3700*3600*3700mm

Weight (approx):

26000kg

Packaging Details:

Film with Foam

Highlight:

400 Ton Maximum Pressure Hot Press Machine

2700×2600mm Pressing Area Hydraulic Hot Press

Flax Felt Lamination Press

Product Description

400 Ton Hydraulic Flax Felt Hot Press Machine with 2700×2600mm Pressing Area for Lamination

Product Overview

This equipment is a specialized pressing system for soft composite materials, designed for lamination, bonding, and hot forming of flexible composites. The machine features a vertical frame structure powered by hydraulics and includes integrated temperature control capabilities, making it ideal for processing fiber-based materials including flax felt and wool felt products.

The hydraulic and heating units are strategically arranged around the main press frame, creating an industrial structural layout that facilitates seamless integration into production areas involving material feeding, pressing operations, and subsequent processing steps.

Key Features

Productive Capacity: The large pressing surface enables processing of bigger soft composite panels in concentrated steps, simplifying transitions between material preparation and lamination phases. Capacity depends on pressing area, layup method, pressing cycle, and workflow efficiency.

Safety Assurance: Combines mechanical pressing with heating functions. Operators should follow specified operating sequences and perform regular checks on hydraulic systems, piping, and heated zones. Maintenance and troubleshooting should be performed under power-isolated conditions following proper safety practices.

Application Areas

Flax Felt Lamination - pressing and bonding flax-fiber-based materials
Wool Felt Processing - hot pressing and laminating multi-layer wool felt materials
Natural Fiber Composites - combining natural fiber felts with other material layers
Soft Composite Bonding - adhering flexible composite structures that require heat and pressure

Technical Specifications

Pressure Mode	Top-down pressing type
Maximum Pressure	400 Ton
Workbench Dimensions	2700mm × 2600mm
Pressure Plate Thickness	70mm × 2 pcs
Maximum Product Size	2400mm × 2400mm (1 pc)
Number of Layers	1-layer
Opening Spacing	0-250mm
Hydraulic System Motor Power	7.5 kW
Oil Cylinder Quantity	Main cylinders: 9 pcs (180mm×250mm) Auxiliary cylinders: 4 pcs (60×90×250mm)
Maximum Temperature	250°C
Heating Power	72 kW × 2
Heating Cycle Power	5.5 kW
Conveyor Belt	Upper & lower Teflon coating
Transmission Power	Upper: 5.5 kW, Lower: 4 kW
Overall Dimensions	3700 × 3600 × 3700 mm
Weight (approx)	26000 kg

Maintenance and Upkeep

Routine maintenance focuses on the hydraulic system, heating system, pressing mechanism, and working areas. Regular inspections cover hydraulic oil condition, piping connections, heating elements, electrical wiring, and mechanical parts. Maintaining detailed maintenance logs helps in early identification of abnormal conditions.

Company Advantages

Two In-House Factories - Better prices and faster delivery with no middlemen
30+ Senior Engineers - Custom-built solutions for your production needs
CE & ISO 9001 Certified - Global-ready compliance with international standards
50+ Countries, 1000+ Projects - Proven experience in design and manufacturing

Service Support

Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline
48-hour response to repair needs
Free video training for operators
Process guidance manuals provided
Lifetime technical support
Software upgrade services

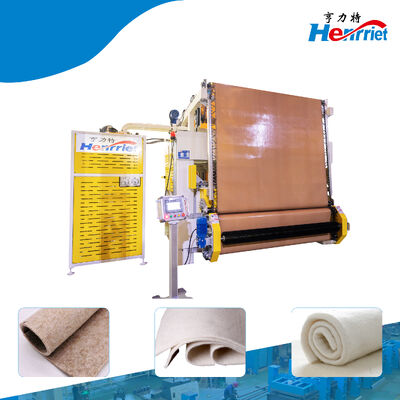

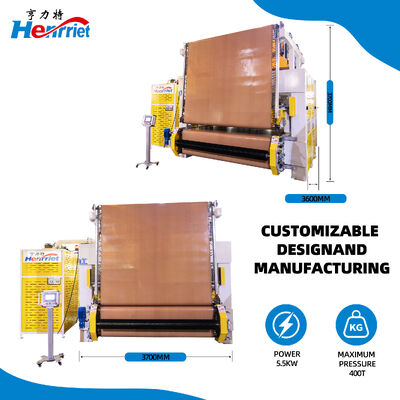

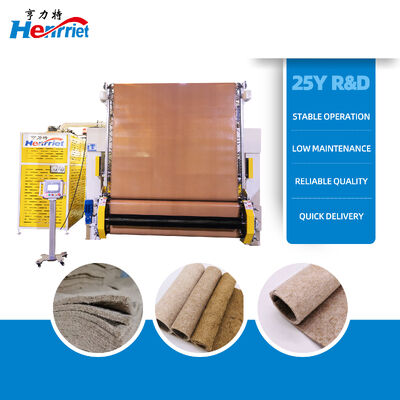

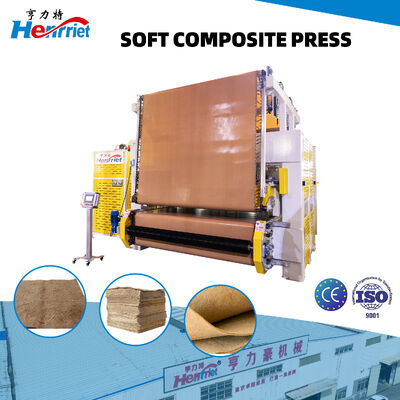

Product Images

Company Overview

Frequently Asked Questions

Who are we?
Based in Guangdong, China since 2016, we serve domestic and international markets including Africa, South Asia, Central America, Oceania, South America, and Eastern Asia. With over 110 employees, we maintain strong global presence.

Why should you buy from us instead of other suppliers?
With over 20 years in the wooden machinery industry, we operate two factories covering 20,000+ square meters. Our 130+ professional employees include 30+ engineers who create custom machine designs. We provide comprehensive installation, commissioning, and operator training for immediate production readiness.

How do we guarantee quality?
Our quality assurance process includes: customer requirement confirmation, engineer-designed machine drawings, on-site guidance for cutting/welding/assembly, full process functionality testing, and final inspection before shipment by engineers and project leaders.

What can you buy from us?

Hydraulic cold presses
Single-layer and multi-layer hot presses
Glue spreading machines
Automatic feeders
Turnover machines
Automatic palletizers
Non-standard automated production lines

What services can we provide?
We accept FOB, CFR, CIF, EXW, and Express Delivery terms. Payment options include T/T, L/C, PayPal, Western Union, and Cash in USD, EUR, or CNY. Our team communicates in English, Chinese, Spanish, Japanese, Russian, and Hindi.
