| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |

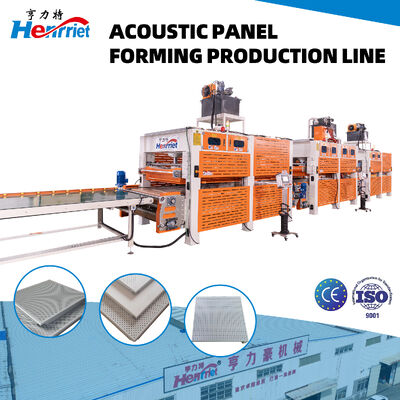

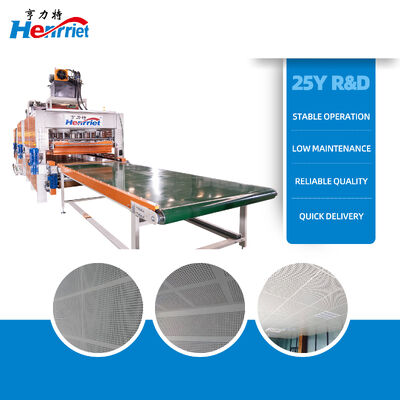

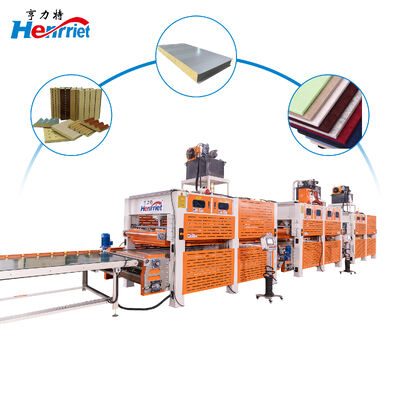

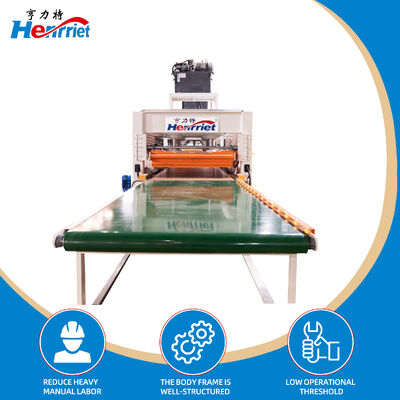

This production line is an integrated continuous forming system for sound-absorbing panels, designed with a streamlined layout and clearly organized work stations mounted on a stable, compact frame. It is suitable for producing a range of panel types, including polyester fiber, rock wool, and composite perforated varieties.
Through core processes such as fiber opening and blending, web laying, hot-pressing, and composite curing, the line regulates the internal porous structure of the panels by adjusting temperature and pressure parameters. It covers the full workflow from raw material input to finished panel output, minimizing the need for additional auxiliary steps. The resulting acoustic panels tend to exhibit a relatively uniform pore distribution and a smooth surface finish.
Work stations are coordinated by a centralized control system, enabling smooth process transitions and efficient material flow. The process logic can be adapted to suit different operating conditions, making it compatible with various panel formulations and forming methods.
The equipment incorporates standardized safety guarding, protective isolation elements, and an emergency stop function. The control system tracks operational status and provides real-time feedback on key working parameters.
The panels produced by this line are commonly applied in indoor noise-reduction settings such as office spaces, meeting rooms, broadcast studios, cinemas, and industrial environments including equipment rooms and sound-insulating enclosures. They may also be used in acoustic renovation projects for educational and healthcare facilities.
The modular structural design facilitates the disassembly and inspection of key components. Adequate operating space is provided around the equipment to support timely maintenance tasks. Periodic checks on the transmission and pressing stations can help maintain steady equipment performance over time.
| Pressure mode | Press down from top |
| Maximum pressure | 400T |
| Workbench dimensions | 3200mm * 1500mm |
| Hot press plate size | 3200mm * 1500mm * 2pcs |
| Hot pressed plate thickness | 50mm * 2pcs |
| Workbench reducer | 2.2KW * 1 unit, with inverter speed control |
| Workbench conveyor belt | 4700mm * 1500mm * 0.7mm * 3 belts |
| Number of layers | 1 layer |
| Spacing | 300mm |
| Heating circulation pump motor | 3kw * 1 unit |
| Oil cylinder and quantity | 8 cylinders 120mm * 180mm |
| Hydraulic system power | Motor 15KW |
| Heating system | Electric heating; heat transfer medium: thermal oil |
| Maximum temperature | 150℃ |
| Control method | PLC + Touch screen |
| System voltage | 415V 50HZ |
| System power | 127.4KW |
| Pressure mode | Press down from top to bottom |
| Maximum pressure | 250T |
| Workbench dimensions | 3200mm * 1500mm |
| Hot press plate size | 3200mm * 1500mm * 2pcs |
| Hot pressed plate thickness | 50mm * 2pcs |
| Workbench reducer | 2.2KW * 1 unit, with inverter speed control |
| Workbench conveyor belt | 4700mm * 1500mm * 0.7mm * 3 belts |
| Number of layers | 1 layer |
| Spacing | 300mm |
| Oil cylinder and quantity | 6 piston cylinders, 180mm * 120mm |
| Cylinder stroke | 300mm |
| Hydraulic system power | Motor 7.5KW |
| Total power of the system | 9.7 KW |
| Control method | PLC + Touch screen |
| System voltage | 415V 50HZ |
Two in-house factories ensure better prices and faster delivery. No middlemen or markups - you buy directly from the source with full control over production speed and costs.
Our 30+ senior engineers design machines around your actual production needs, floor space, and budget. Custom-built solutions for your specific requirements.
CE & ISO 9001 certified equipment meeting international electrical, mechanical, and safety regulations. Ready for global deployment and operation.
Over 50 countries served with 1,000+ custom projects. Our equipment is engineered for long-term, heavy-duty use in real factory environments worldwide.
We are based in Guangdong, China, established in 2016. We serve Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), and Eastern Asia (2.00%). We have over 110 employees dedicated to manufacturing excellence.
With more than 20 years in the wooden machinery industry, we operate two factories covering over 20,000 square meters. Our team includes 130+ professional employees and a senior design team of 30+ engineers. We provide custom machine design drawings tailored to your needs, comprehensive installation, commissioning, and operator training to ensure immediate production upon arrival.
We confirm required functions through detailed customer communication; our engineers complete machine drawing design according to specifications; provide on-site guidance for cutting, welding, and assembly operations; conduct full process testing by quality inspectors; and perform final inspection by engineers and project leaders before shipment.
We offer hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and non-standard automated production lines of various specifications.
Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery
Payment Currency: USD, EUR, CNY
Payment Methods: T/T, L/C, PayPal, Western Union, Cash
Languages: English, Chinese, Spanish, Japanese, Russian, Hindi
