| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |

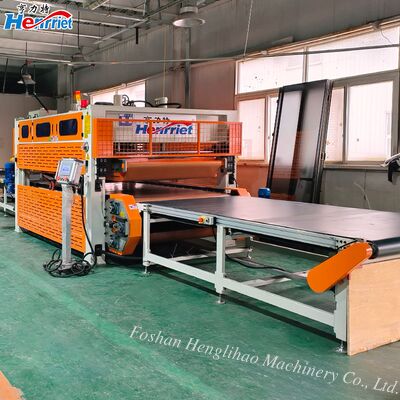

The automated conveying system matched with hot press equipment constitutes a fully coordinated and integrated industrial production ecosystem, seamlessly merging the core hot pressing host with an intelligent material handling and transmission solution.
At the core of this integrated system lies a unified and stable structural framework, consisting of the heavy-duty hot press mainframe, high-precision feeding and unloading conveying components, hydraulic lifting modules, and an advanced centralized electrical control system.

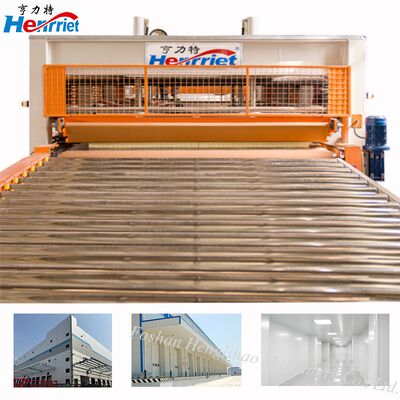

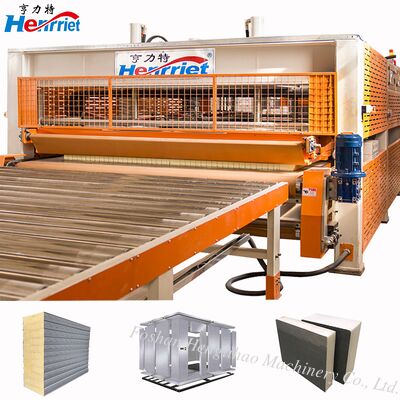

Adopting a smooth and continuous material flow mode, the system is equipped with hydraulic-driven roller lifting platforms at both the feeding and discharging ends. These platforms gently transport pre-assembled panels into the pressing cavity and smoothly transfer finished molded products to subsequent processing procedures.
This integrated system breaks through operational limitations of independent hot press equipment, enabling uninterrupted large-scale continuous production. The seamless connection between conveying device and hot press realizes fully automatic operations including autonomous panel feeding, precise positioning, controllable hot pressing, and immediate product output.
Equipped with advanced thermal insulation structures and high-efficiency heating components, the system achieves remarkable energy conservation effects. High-precision servo-driven pressure control ensures uniform lamination effect of multi-layer composite structures.
The system features a comprehensive safety protection system covering mechanical, hydraulic, electrical, and motion control fields. The entire production line is surrounded by full-perimeter safety guardrails, forming physical isolation between personnel and active working areas.
Multiple redundant safety protection devices including hydraulic overload protection, motor current monitoring, and real-time pressure feedback mechanisms prevent equipment damage. Emergency stop buttons at key positions instantly cut off all power supply, heating systems, and motion components.
Aerospace Interior Components: Cabin floors, ceiling components, side wall panels, kitchen partitions, and luggage storage racks featuring outstanding lightweight performance.
New Energy Vehicle Applications: Battery pack shells requiring lightweight construction, structural strength, and excellent flame-retardant properties.
Vehicle Body and Chassis Components: Body coverings, chassis protection parts, and door components that significantly reduce overall vehicle weight.
Long-term stable operation relies on standardized maintenance of hot press host, conveying mechanism, and control system. Regular inspection of safety components including emergency stop devices, proximity sensors, and pressure transmitters maintains pressing accuracy and system stability.
| Maximum Pressure | 80 T |
| Work Platen Size | 4600mm × 2650mm |
| System Pressure | 20 MPa |
| Maximum Platen Opening | 300mm |
| Maximum Temperature | 100℃ |
| Working Level | 1-layer |
| Oil Cylinder Specification | 350mm × 70mm × 6pcs |
| Hydraulic Pump Power | 5.5kw |
| Hot Oil Pump Power | 2.2kw |
| Heating Pipe Power | 72kw |
| Overall Dimensions | 5750 × 3553 × 2300mm |
| Weight (Approximate) | 18000kg |
