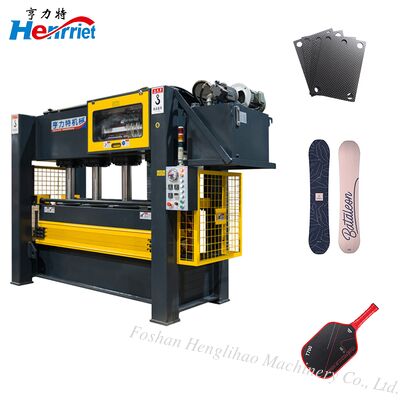

This purpose-built hot press system is expertly engineered for demanding hot-pressing and curing operations for high-performance pickleball paddles and advanced composite structural components. Featuring a heavy-duty gantry frame architecture with dual-cylinder direct-drive hydraulic configuration, it delivers optimal fluid power consistency and exceptional structural rigidity.
The precision-machined worktable ensures seamless interface with custom tooling, while the heating platen features optimized zoned thermal oil circulation for uniform temperature distribution critical for carbon fiber prepreg material consolidation.
Advanced thermal management architecture with high-efficiency thermal fluid circulation or electric heating methodologies, paired with precision closed-loop temperature regulation. This ensures rapid, uniform heat distribution across the entire working surface, eliminating curing inconsistencies and structural irregularities.
Optimized hydraulic circuit with synchronized closed-loop temperature and pressure control enables swift actuation of press cylinders, reducing cycle times and increasing production output.
Heavy-gauge steel protective enclosures provide uncompromising operator safety while maintaining work area visibility and optimal ventilation. Precision-manufactured hydraulic cylinders with ultra-smooth, wear-resistant surfaces ensure reliable performance in continuous heavy-duty operation.
Advanced high-frequency induction hardening and hard chrome plating on piston rods provide exceptional resistance to abrasion, corrosion, and impact.
Excels in carbon fiber composite manufacturing for aerospace structures, medical equipment, rail transit interiors, and lightweight honeycomb composite panels. Specifically engineered for pickleball paddle production, enabling uniform resin flow and full material consolidation for enhanced performance characteristics.
Ideal for automotive composite components including crash structures and impact trim pieces, meeting strict safety and performance standards through precision layup and simultaneous hot-pressing with resin infusion.
Engineered for minimal maintenance complexity with straightforward preventive maintenance protocols. Includes annual fluid service program covering hydraulic fluid replacement and system flushing. Simple thermal fluid system maintenance preserves optimal thermal efficiency throughout machine lifespan.
| Maximum Pressure | 300 T |
| Work Platen Size | 2300 × 1700mm |
| System Pressure | 20 MPa |
| Maximum Platen Opening | 350mm |
| Maximum Temperature | 100℃ |

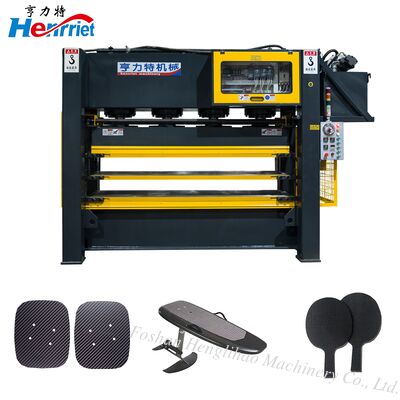

| Working Level | 2-layer |
| Oil Cylinder Specification | 700mm × 200mm × 4pcs |
| Hydraulic Pump Power | 7.5kW |
| Hot Oil Pump Power | 1.5kW |
| Heating Pipe Power | 72kW |
| Overall Dimensions | 2830 × 1700 × 3120mm |
| Weight (Approximate) | 15000kg |
