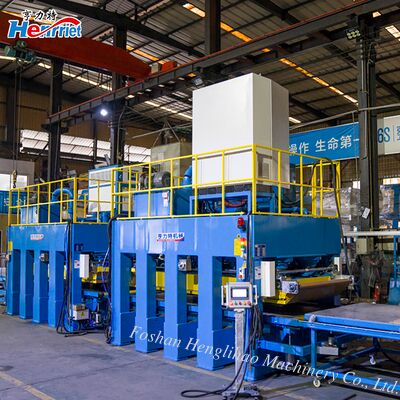

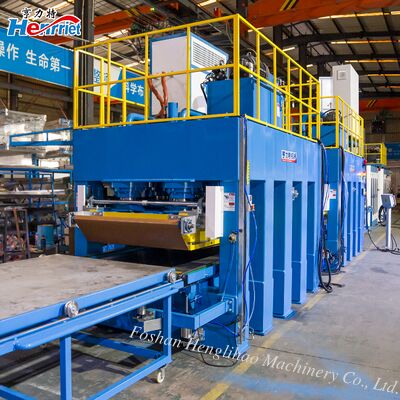

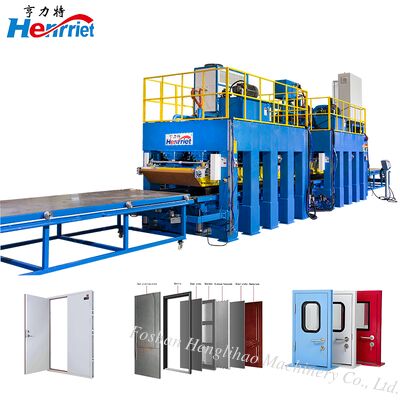

Customized 1000T Pressure Automatic Conveying Press Production Line with Thermal Oil Heat Transfer for Hall Doors and Wood Plastic Doors

Customized 1000T Pressure Automatic Conveying Press Production Line with Thermal Oil Heat Transfer for Hall Doors and Wood Plastic Doors

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Pressure Method:

Press Up And Down

Maximum Pressure:

1000 T

Hot Press Plate Size:

3700mm X 1300mm

Plate Thickness:

42mm X 2 Pcs

Number Of Layers:

1-layer

Opening Spacing:

0-200mm

Motor Power Of Hydraulic System:

11KW

Heating Cycle Motor:

3KW High-temperature Pump

Conveyor Reducer:

0.75KW

Oil Cylinder Specification:

10pcs*220mmX200mm Plunger Cylinders+2 Lifting Cylinders

Heating Method:

Thermal Oil Heat Transfer

Maximum Temperature:

180℃

Outline Dimensions Of Hot Press:

3700mm * 2100mm

Packaging Details:

Film with Foam

Product Description

Customized 1000T Pressure Automatic Cold and Hot Conveying Press Production Line for Hall Doors, Wood & Plastic Doors

Product Overview

This integrated thermal processing ecosystem merges heavy-duty hot pressing, precision cold forming, and automated material handling into a unified production framework. Its design eliminates manual interventions, enabling a continuous thermal cycling workflow from raw material input to finished product output.

Key Features

Superior Production Capacity

The system's breakthrough lies in its synchronized dual-phase thermal processing. Panels undergo high-temperature curing in the hot press, followed by automatic transfer to the cold press for rapid stabilization. This parallel processing replaces traditional sequential workflows, allowing simultaneous hot pressing and cold forming across dedicated stations.

Integrated Safety and Protection

Engineered for continuous operation in demanding environments, the system incorporates tiered safety mechanisms including mechanical redundancy, thermal safeguards, electrical resilience, and motion control systems to ensure equipment and operator safety.

Wide-Ranging Application Versatility

The system supports diverse door manufacturing categories including Iron-Wood Doors, Aluminum Honeycomb Doors, Wood-Plastic Doors, Mechanism Panel Doors, and Grand Hall Doors for various commercial and residential applications.

Easy Maintenance and Technical Support

Sustained operational excellence requires systematic maintenance protocols including surface hygiene, thermal system calibration, electrical integrity checks, and conveyor health maintenance to ensure sustained performance integrity.

Technical Specifications

Pressure Method	Press Up and Down
Maximum Pressure	1000 T
Hot Press Plate Size	3700mm x 1300mm
Plate Thickness	42mm x 2 pcs
Number of Layers	1-layer
Opening Spacing	0-200mm
Motor Power of Hydraulic System	11KW
Heating Cycle Motor	3KW High-temperature Pump
Conveyor Reducer	0.75KW
Oil Cylinder Specification	10pcs*220mmX200mm plunger cylinders + 2 lifting cylinders
Heating Method	Thermal Oil Heat Transfer
Maximum Temperature	180℃
Outline Dimensions of Hot Press	3700mm * 2100mm
