| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |
This hydraulic scissor lift platform is built for workshop duty. A cross-braced scissor frame in welded steel carries a broad, flat table, and the control box sits separately, outside the machine. The layout is straightforward and the motion is smooth, which suits a loading position ahead of hot-press and cold-press stations. Hydraulic drive raises and lowers the table steadily, so the unit works as supporting equipment on composite door-panel lines.
The travel of the table is set to match the working height of panel tooling and to line up with press infeed positions, which narrows the height gap when workpieces are moved. A steady lifting reference helps keep panels aligned during positioning and fits a continuous panel-processing rhythm. The scissor frame is welded as one unit, spreading load across the structure; it is intended for large flat workpieces such as honeycomb and sandwich composite panels, and for repeated start-stop duty over extended runs.
The hydraulic circuit includes overload protection that guards the oil path under abnormal conditions. Lowering can be paused and resumed as needed, keeping table descent controlled and reducing the chance of a workpiece shifting when the table drops. A vertical control pendant stands apart from the lift zone, so the operator can work the table from a distance. Warning markings along the table edge indicate load limits and support standard loading practice.
The platform suits plants that process aluminium honeycomb, paper honeycomb, sandwich composites, solid wood doors, composite door panels and cleanroom panels. On panel lamination lines it is often paired with hot presses and cold presses as loading support equipment.
Check hydraulic hose fittings, scissor hinge pins and control wiring on a routine basis. Clear panel offcuts from the table and base so debris does not interfere with the moving scissor linkage. Change the hydraulic oil on the specified interval and lubricate the rotating hinge points. During servicing, run a no-load lift test to confirm that travel and limit response behave as expected.
| Technical Data | 3T Lifting Platform |
|---|---|
| Maximum bearing capacity | 3000 kg |
| Work platen size | 2400 mm × 1200 mm |
| Max. platen opening | 400 mm |
| Oil cylinder specification | 100 mm × 2 pcs |
| Hydraulic pump power | 1.5 kW |
| Overall dimensions | 2400 × 1200 × 420 mm |
| Weight (approx.) | 800 kg |
We own two independent R&D and manufacturing facilities. No middlemen, no markups. You buy straight from the source, with full control over production speed and costs.
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making — we'll build exactly what you need.
Every machine meets EU CE safety standards and ISO 9001 quality requirements, ensuring full compliance with international electrical, mechanical, and safety regulations — ready to plug and play anywhere in the world.
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use — proven in real factories worldwide.

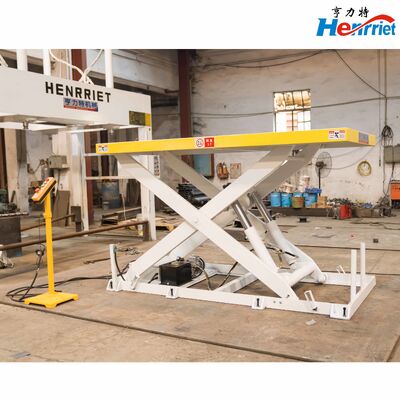

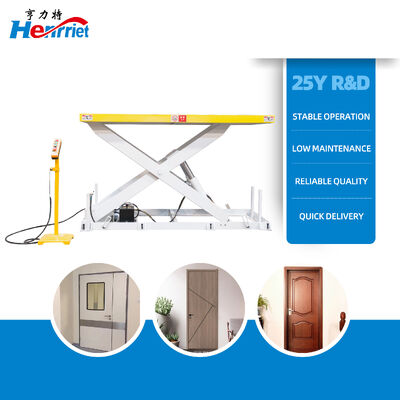

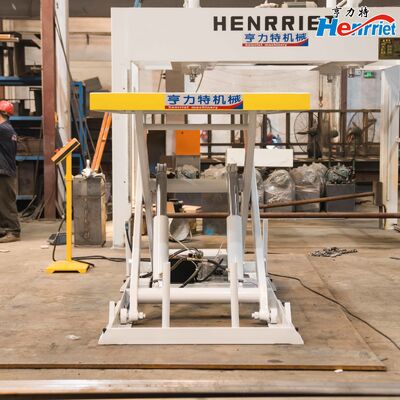

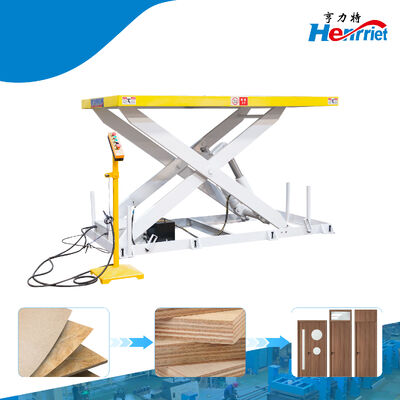

3T stationary scissor hydraulic lifting platform with wide flat tabletop for honeycomb panel and door production line.
Company facility overview of the machinery manufacturer.
Interior view of the manufacturing workshop and production area.
Corporate advantages and company strengths overview.
Customers visiting the factory and communicating with the team.
Production level and manufacturing process of the machinery.
Company participation in industry exhibitions and exchange events.
Packaging and logistics process for machine shipment.
Certificates and honors awarded to the company.
We are based in Guangdong, China, and started in 2016. We sell to the Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), and Eastern Asia (2.00%). We have over 110 employees.
We have more than 20 years of experience in the wooden machinery industry. We operate two factories covering over 20,000 square meters with over 130 professional employees, including a senior design team of more than 30 engineers. We can tailor-make machine design drawings according to your needs and ensure perfect production and manufacturing. We provide comprehensive installation, commissioning, and operator training to ensure your machine can be put into production immediately upon arrival.
We confirm the required functions of the machine through communication with the customer. Our engineers complete the machine drawing design according to customer requirements. Engineers provide on-site guidance for a series of operations such as cutting, welding, and assembly. Quality inspectors conduct full-process testing of the functionality of each machine, and engineers and project leaders conduct another inspection before shipment.
Hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and non-standard automated production lines of various specifications.
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash. Languages Spoken: English, Chinese, Spanish, Japanese, Russian, Hindi.
