Description
Traditional panel bonding processes have long relied on manual adhesive application or basic roller coating equipment—methods characterized by limited throughput, significant labor demands, inconsistent adhesive layer uniformity, and variable product quality. These conventional approaches also generate substantial material waste and present environmental concerns. As market requirements grow increasingly diverse, with orders trending toward smaller batches and greater variety, the demand for efficient, precise, and flexible automation solutions has given rise to specialized adhesive application systems. The large-format panel adhesive spraying machine represents a premium coating solution engineered specifically for the composite processing requirements of oversized architectural decorative panels. The system integrates imported servo motor technology with high-precision metering pump dual-drive architecture, achieving precise metered adhesive application with exceptional repeatability. The main frame is constructed from heavy-duty steel sections with integral welding, followed by comprehensive annealing treatment to eliminate residual stresses. Combined with precision guide rail systems, this robust construction ensures sustained heavy-load operational stability without deformation or alignment deviation. The adhesive supply network incorporates precision metering pump technology with dynamic mixing capabilities, enabling accurate proportioning of two-component adhesive systems—including polyurethane adhesives and epoxy resin formulations—according to preset ratios. Integrated buffer heating and thermal insulation systems support continuous material conditioning and uninterrupted supply without requiring process interruption for material replenishment. The complete system is managed through a PLC-based human-machine interface control platform.
Feature
1,Superior production capacity
The core productivity advantage of the large-format panel adhesive spraying machine resides in the efficiency transformation delivered through its automated continuous operation mode, fundamentally redefining the slow and labor-intensive traditional manual adhesive application approach. The equipment features a cantilevered structure positioned between conveyor sections, with adhesive uniformly applied across panel surfaces through continuous oscillating arm movement. Adhesive volume is infinitely adjustable, ensuring consistent application quality for every panel processed. In high-volume production environments, the system supports continuous round-the-clock operation, enabling uninterrupted workflow from adhesive application through composite assembly. This sustained operation capability substantially reduces per-unit manufacturing costs while enhancing order fulfillment performance.
2,Integrated Safety and Protection
A comprehensive multi-loop safety protection system integrating mechanical, electrical, hydraulic, and protective components has been engineered to address the distinctive characteristics of large-frame construction, heavy-load conveying, high-pressure adhesive supply, and continuous production operation. The equipment incorporates complete electrical protection functionality, including overload protection, short circuit protection, phase loss detection, overvoltage and undervoltage monitoring, ensuring electrical system stability and operational reliability. All moving components—including chain drives, gear assemblies, and transmission shafts—are fully enclosed within heavy-duty protective covers. The complete adhesive handling system, extending from material supply vessels to application nozzles, operates under fully enclosed design, with all pipeline connections utilizing corrosion-resistant sterile-grade sealing elements. This integrated containment approach effectively prevents adhesive or cleaning agent leakage, splashing, or vapor release, minimizing direct operator exposure to chemical materials.
3,Wide-Ranging Application Versatility
Extensive Application Versatility Across Metal Composite and High-End Architectural Panel Processing
The large-format adhesive spraying machine demonstrates exceptional utility across metal composite panel processing and premium architectural material manufacturing, combining extensive application coverage with precise adhesive control and sustained operational stability.

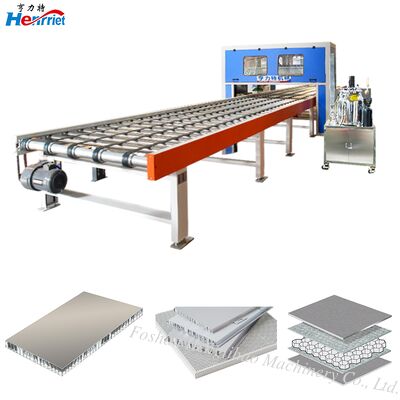

Aluminum Honeycomb Panel Manufacturing
For honeycomb panel production, the equipment handles large-scale adhesive application for aluminum honeycomb structures and fire-resistant aluminum honeycomb panels. Two-component adhesive uniformly applied to aluminum facing sheets enables subsequent bonding with honeycomb core materials, producing lightweight yet high-strength curtain wall panels extensively utilized in prestigious public building projects including airport terminals, high-speed railway stations, and sports venues. The uniform adhesive layer characteristic of this machine effectively minimizes bubble formation during lamination, enhancing bond strength between honeycomb core and facing sheets while eliminating delamination risks.
Aluminum Veneer Processing
For aluminum veneer applications, the equipment supports adhesive application for reinforcement rib bonding. Precise adhesive volume control ensures secure rib-to-panel attachment, maintaining surface flatness specifications for large-format aluminum veneer panels that meet building curtain wall standards.
Specialized Metal Honeycomb Panel Production
In advanced metal composite manufacturing, the system accommodates adhesive application for stainless steel honeycomb panels, titanium-zinc honeycomb structures, and other premium metal composite configurations, enabling architects to realize diverse aesthetic expressions for metal curtain wall applications.
Additional Building Material Applications
The equipment further supports automated adhesive application for insulation boards, decorative panels, aluminum corrugated sheets, and stone-faced honeycomb panels. The system demonstrates broad adhesive compatibility, handling single-component polyurethane adhesives, two-component AB formulations (polyurethane, epoxy resin, and related systems), and other specialized adhesive types.
4,Easy maintenance and technical support
Following each production cycle, immediate cleaning procedures should be implemented utilizing specialized cleaning agents to flush adhesive application heads, supply lines, and residual material recovery systems. This process removes residual adhesive that could otherwise solidify and obstruct nozzles or pipeline networks. Clean cloths should be used to wipe dust, adhesive residue, and debris from conveyor roller surfaces and machine body components, with inspection for roller coating layer scratches or damage that could subsequently compromise panel surface quality.
Seal system inspection represents the most critical maintenance activity. Regular examination of all flexible hose connections, pump body seals, and valve sealing elements identifies aging, hardening, or damage requiring immediate replacement to prevent adhesive leakage. This systematic approach to preventive maintenance ensures sustained equipment performance and extended service life.
Specification
| Gel Dripping Width | 300-3000mm (customizable) |
| Coating Speed | 1-12 meters/minute (adjustable, speed varies depending on width) |
| Gel Dripping Length | 500mm-8000mm (customizable) |
| Product Width | 300mm-3000mm (customizable) |
| Ratio Adjustment | The mixing ratio can be adjusted between 2:1-5:1 |
| Environmental Requirements | Temperature 5-45 ℃, humidity ≤ 80% |
| Effective Volume of AB Tanks | 40L (automatic feeding) |
| Glue Consumption per Square Meter | Adjustable from 100g to 400g |
| Conveyor Line | Ground clearance 850mm ± 50mm, length and width can be customized |
| Temperature Adjustment Range of Material A Tank | Adjustable from 20-30 ℃ |
| Adhesive Viscosity | 4000-12000CPS (customizable) |
| Power | 5.75kw |
| Control Method | PLC programming+touch screen |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
Service Support
Scope of Application
A
Product Display

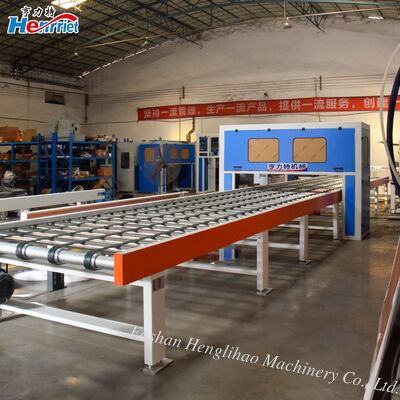

Production workshop actual shooting
