| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |
Description

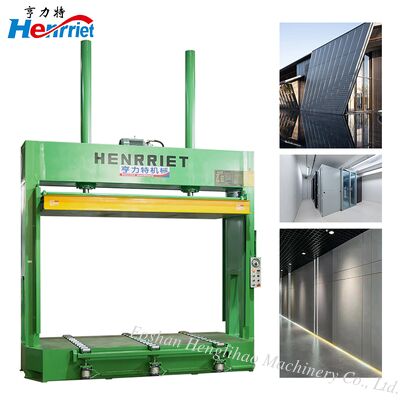

The dual-cylinder hydraulic cold press equipped with a roller conveyor system represents a pinnacle of engineering designed for the advanced fabrication of contemporary metal and composite materials. Its robust architecture integrates a synchronized twin-cylinder hydraulic mechanism, an intelligent electrical control unit, a reinforced structural frame, a high-precision platen, and an innovative conveyor-based worktable. This sophisticated linkage allows operators to effortlessly glide heavy aluminum sheets, honeycomb structures, and other substantial materials directly into the pressing zone. This design effectively eliminates the strenuous manual handling and loading difficulties associated with traditional presses, facilitating a seamless, continuous assembly line workflow that significantly enhances operational smoothness.
Feature
1,Superior production capacity
Regarding production capabilities, this machinery achieves remarkable efficiency gains through several optimized engineering features, making it ideally suited for large-scale industrial manufacturing of metal composite panels. The dual-cylinder hydraulic system typically employs a combination of high-volume, low-pressure pumps alongside high-pressure units. This configuration enables rapid approach speeds during idle strokes, automatically transitioning to intense pressing force upon contact with the workpiece. Such a design drastically reduces non-productive cycle time, accelerating overall throughput.
2,Integrated Safety and Protection
The whole machine is equipped with an emergency stop and over limit automatic protection system, and safety assurance is an important consideration in the design of this cold press machine. In terms of electrical control systems, automatic circuit breakers, fuses, AC contactors, and other components are commonly used in the main and control circuits of equipment,
The hydraulic system itself has multiple protection mechanisms, such as an overflow valve used to control the maximum pressure of the system, acting as a safety valve to prevent system overload.
3,Wide-Ranging Application Versatility

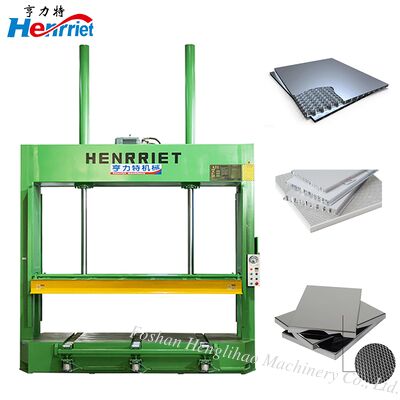

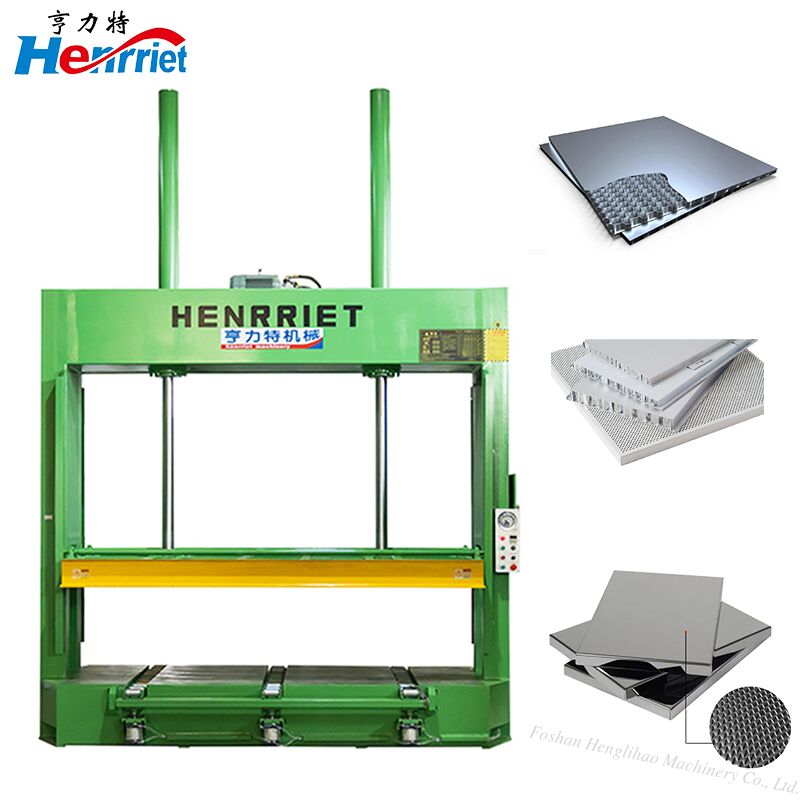

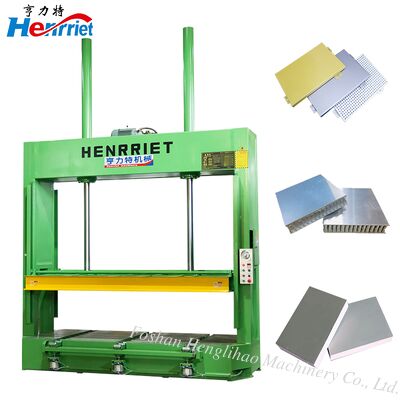

Due to its precise pressure regulation, expansive work surface, and exceptional load-bearing capacity, this dual-cylinder cold press with conveyor finds extensive application across the modern building decoration sector. In the realm of metal composite panel manufacturing, it excels in molding corrugated composite boards, ensuring a durable bond between the corrugated core and face sheets through evenly distributed pressure. For aluminum ceiling tile production, the equipment efficiently executes lamination and leveling processes, guaranteeing superior product flatness. Within the high-end curtain wall industry, it is indispensable for processing aluminum honeycomb panels, where the synchronized twin cylinders apply uniform force to perfectly fuse aluminum skins with honeycomb cores, yielding lightweight yet incredibly strong facade elements.
4,Streamlined Maintenance and Service Support
Given that processing materials like aluminum sheets and honeycomb structures generates metal shavings and dust, daily maintenance of the roller tracks and worktable is essential. Regular cleaning prevents debris accumulation that could impede roller rotation and disrupt transport smoothness. Care must also be taken to prevent metal particles from entering guide rails, which would accelerate wear. Regarding hydraulic system upkeep, it is crucial to periodically inspect the fastening bolts on cylinder flanges and rods for looseness, tightening them as needed, while also routinely checking all oil lines for potential leaks to ensure sustained performance and safety.
Specification
|
Max pressuer |
50T |
|
Work platen size |
2800*1300mm |
| Oil cylinder specification | 125mm * 2pcs |
| Motor power | 4kw |
| Workd effctively | 1300mm |
| Overall dimensions (Standard Model) | 3300*1300*3800mm |
| Weight (Standard model-about) | 2300 KG |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
Service Support
Scope of Application
Product Display

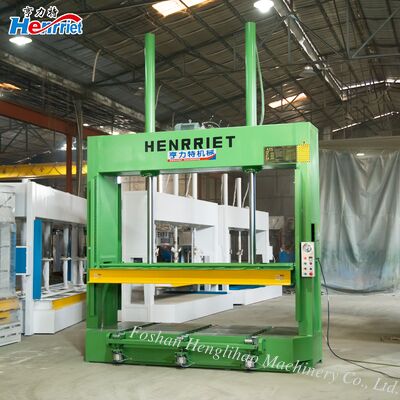

Production workshop actual shooting
