| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |

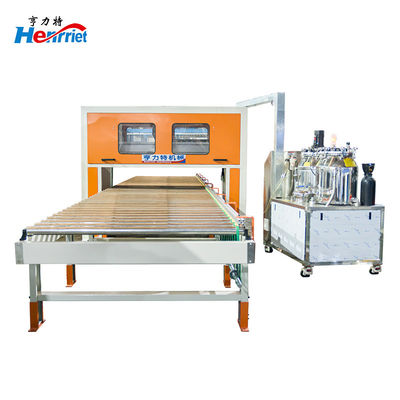

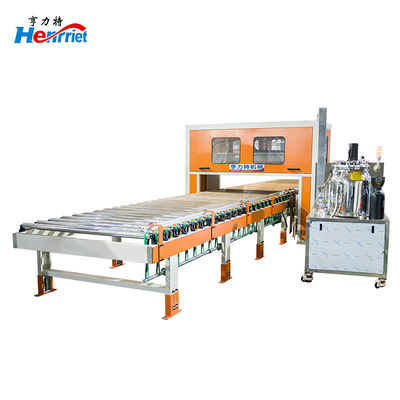

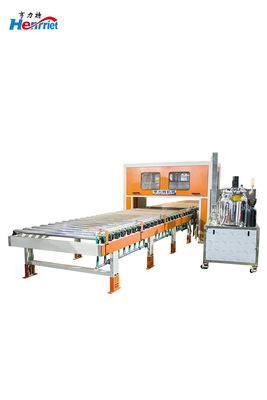

Two Part Epoxy Automatic Identify Uniform Coating Glue Machine For Insulation Sandwich Board Wooden Door SPC Honeycomb Board
Product Description:
This self-developed two-component automatic gluing machine breaks through the traditional bottleneck with core technology, and uses uniform gluing, high efficiency, all-dimensional safety and peace of mind operation and maintenance to become a powerful tool for you to reduce cost and increase efficiency and seize the market - selecting us is to select "visible quality, calculated profit".
Superior capacity

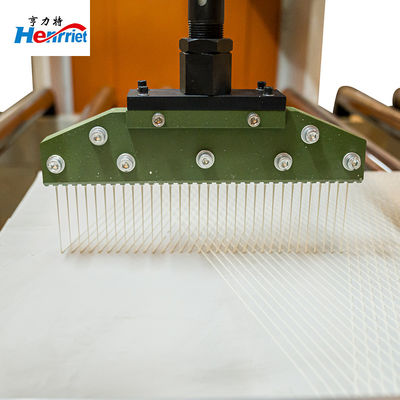

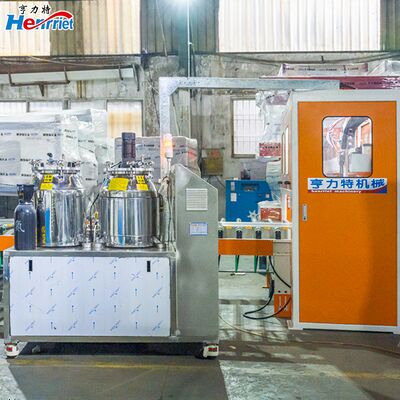

Our two-component automatic gluing machine is equipped with an intelligent metering pump and a servo driven gluing system, which can automatically mix two-component adhesives in precise preset proportions. This ensures extremely consistent adhesive coating thickness, effectively eliminating common defects such as adhesive overflow or poor adhesion caused by insufficient adhesive.
Safety and security
We always put "safety+environmental protection" into the device gene! The machine is designed with a fully enclosed gluing channel. There is no leakage in the whole process of mixing, conveying and coating of two-component rubber materials, so as to avoid the splashing of rubber materials to corrode the equipment and burn the operator. The machine is "fully safe".
Scope of application

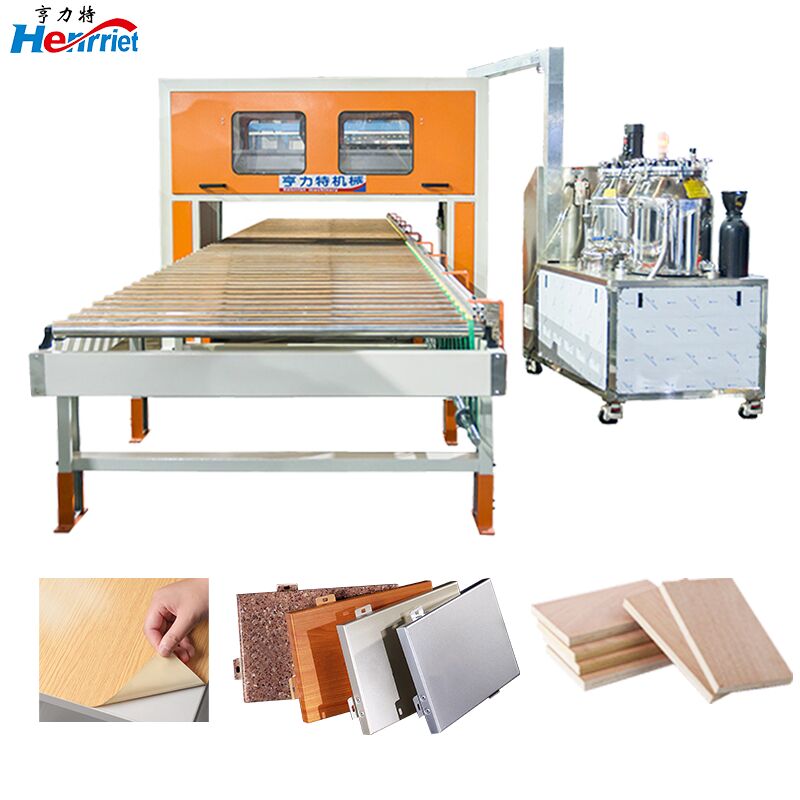

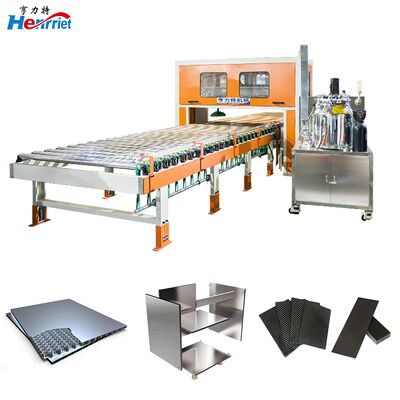

The mixing ratio of the two-component adhesive can be precisely adjusted according to different board materials—including solid wood, honeycomb cores, and insulation panels—ensuring consistent bond quality that meets industry standards. This results in a significantly higher yield compared to manual adhesive application. Additionally, the equipment supports customizable application width, making it suitable for both high-volume production of standard panels and specialized small-batch orders. With its flexible processing capabilities, this machine helps manufacturers expand their business scope and confidently accept a wider variety of projects.
Maintenance and repair

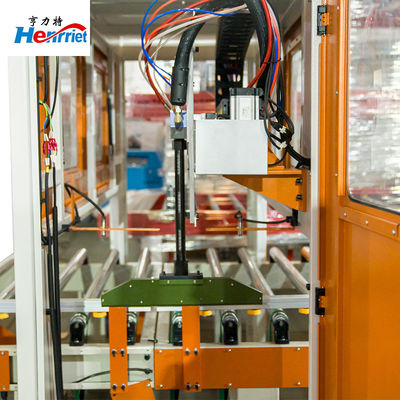

Our design philosophy prioritizes user-friendly operation and ease of maintenance. The machine adopts a modular integrated design, with core components such as the measurement system, application module, and control system operating as independent units. This greatly reduces the risk of fault propagation between systems. For maintenance, there is no need to disassemble the entire machine, only the relevant replacement parts are needed.
Machine parameters
| Gel Dripping Width | 200-1300mm(customizable) |
| Coating Speed | 1-12 meters per minute(adjustable) |
| Gel Dripping Length | 300mm-4500mm(customizable) |
| Product Width | 200mm-1300mm(customizable) |
| Ratio Adjustment | Mixing ratio between 2:1-5:1 (adjustable) |
| Environmental Requirements | Temperature 5-45 ℃, humidity ≤ 80% |

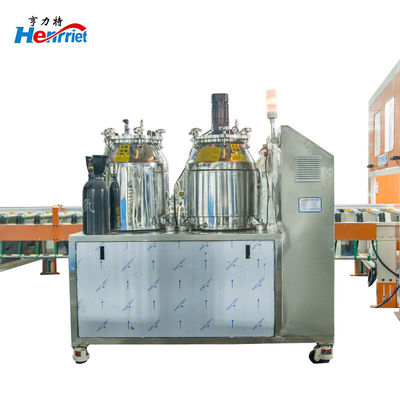

| Effective Volume of AB Tanks | 40L (automatic feeding) |
| Glue Consumption per Square Meter | 200g-450g(adjustable) |
| Conveyor Line | Width 1300mm, height 850mm ± 50mm, length customizable |
| Adhesive Viscosity | 4000-12000CPS (customizable) |
| Power | 5.75kw |
| Control Method | PLC programming+touch screen |
Service Support
Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline, respond to repair needs within 48 hours.
Free video training for operators and provision of process guidance manuals.
Lifetime technical support and software upgrade services.
