| Brand Name: | Henrriet |
| Model Number: | HRY48-50T/8 layer |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |

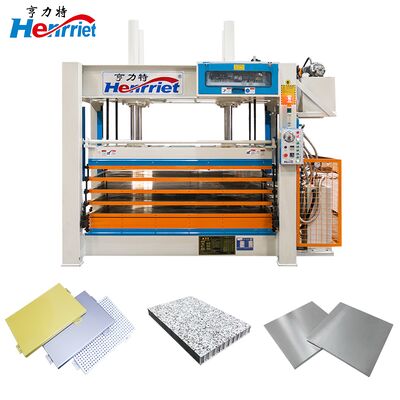

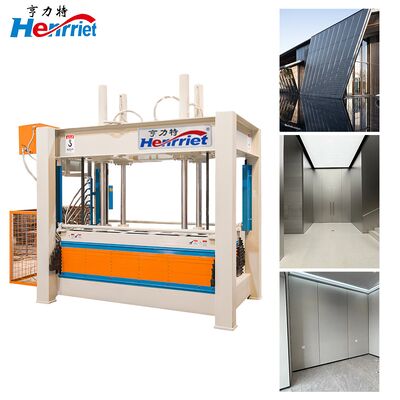

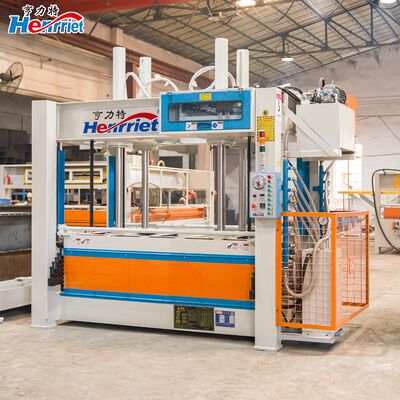

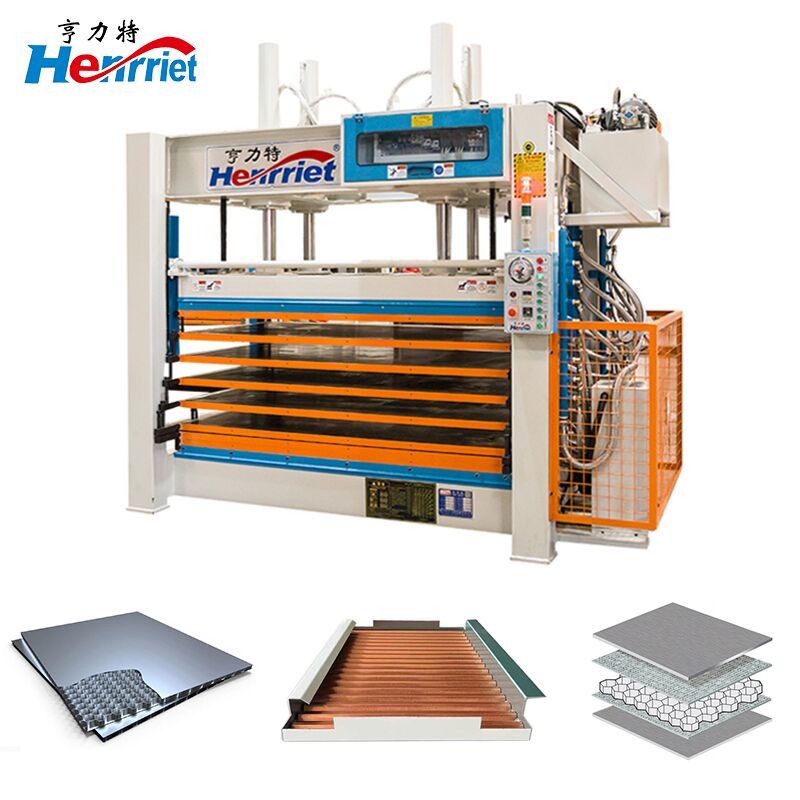

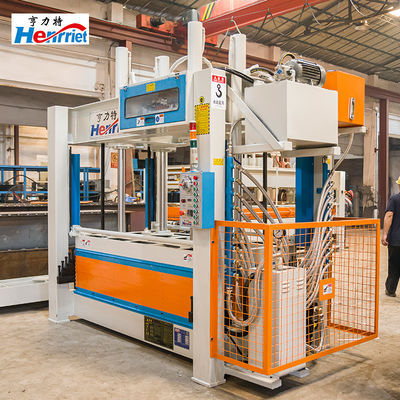

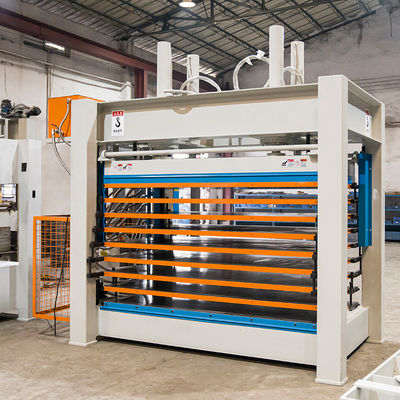

8-layer Hot PressWoodworking Machinery Veneered Plywood Furniture Multi-layer Composite Laminboard
Product Description:

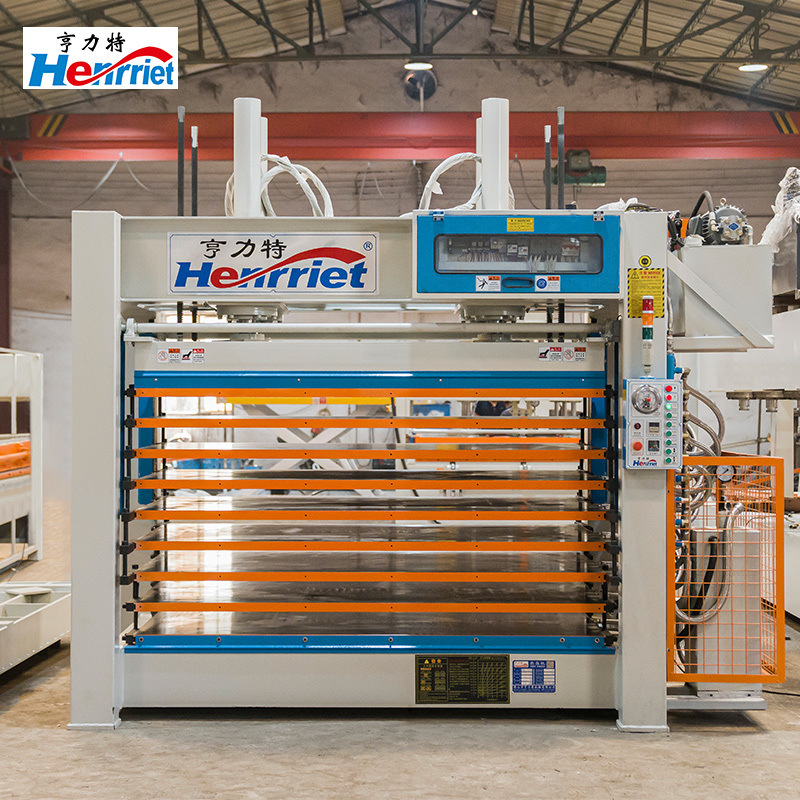

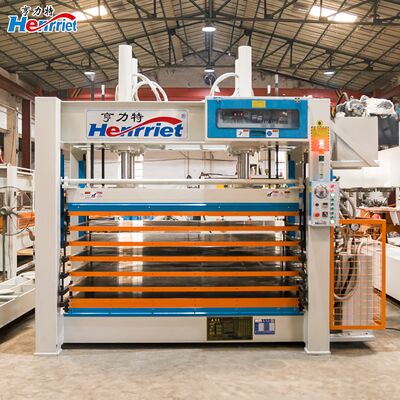

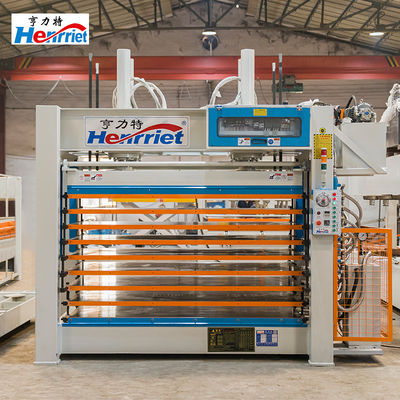

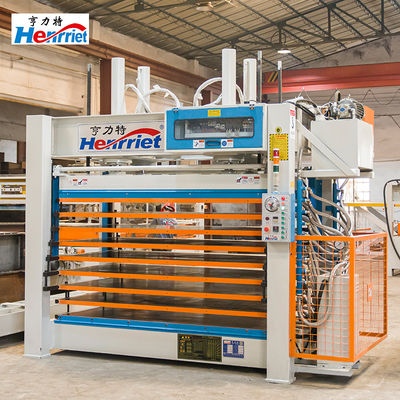

The 8-layer hot press machine embodies a fully integrated continuous pressing solution, designed with multiple heated platens to establish eight distinct pressing zones. This innovative structure facilitates the concurrent processing of eight panels in one operational cycle, positioning it as a transformative asset for medium- to large-scale panel producers targeting high-output manufacturing with unwavering consistency. Governed by a centralized PLC-driven control system featuring an intuitive touchscreen interface, the machine supports multi-recipe parameter storage, live process surveillance, automated fault detection, and exhaustive data recording—culminating in standardized, traceable, and intelligent production . Its capabilities are tailored for large-format products like composite panels, aluminum honeycomb boards, and integrated insulation-decorative exterior claddings, alongside cleanroom-suitable panels .
Machine parameters
| Maximum Pressure | 50 T (customizable) |
| Layer | 8 |
| Worktable Sizes | 2500mm*1300mm (customizable) |
| Maximum temperature | 80℃ |
| Layer Spacing | 100mm |
| Power supply | 380V/50Hz, three-phase |
| Heating Power | 54KW(customizable) |
| Hydraulic power | 5.5KW(customizable) |
| High Temperature Oil Pump Motor Power: | 2.2KW (customizable) |
| Dwell time | 0-99.99 hours (Adjustable) |
| Platen lift speed | 10-12mm/s |
| Pressure accuracy | ±1% (ISO-compliant) |
| Size | 3800mm × 2100mm × 3300mm |
| Weight | 14000KG |
Service Support
Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline, respond to repair needs within 48 hours.
Free video training for operators and provision of process guidance manuals.
Lifetime technical support and software upgrade services.
