| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |

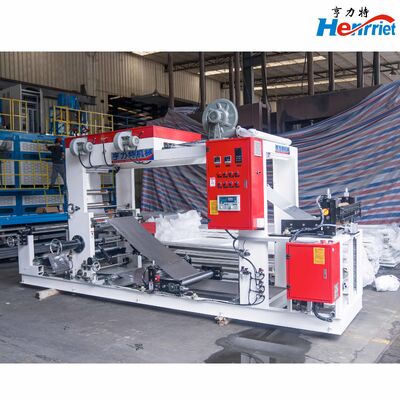

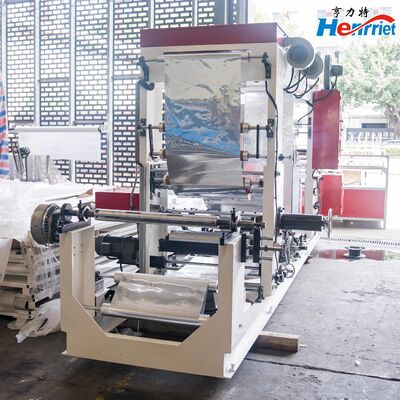

This equipment is a frame-type integrated aluminum foil coating and printing machine based on a compact gantry frame layout. It combines unwinding, roller glue line printing, temperature-controlled heating, conveying, and fixed-length cutting units in one coordinated system.
It is intended for aluminum honeycomb core manufacturing and applies adhesive strips to aluminum foil substrates through roller printing. Gluing, preheating, and cutting are carried out in a continuous workflow, yielding glued foil with relatively aligned ends for subsequent honeycomb core stacking. Compared with spray gluing methods, roller coating printing can support more repeatable adhesive strip formation.
The machine offers continuous stepless speed adjustment to suit different production tact arrangements. Coating, heating, and cutting operate in a synchronized flow and generally do not require transfer between separate stations, which can help reduce downtime linked to process handover. Adhesive strips are formed in a relatively consistent way, and cut ends tend to remain aligned, which can lower adjustment work during later core stacking and support batch processing of honeycomb core substrates.
The machine is equipped with a separate electric control cabinet that uses a divided layout for power and control circuits. Guard space is provided around moving rollers, and interlock limit mechanisms are fitted at operating positions. The heating module applies closed-loop temperature regulation to help lower the chance of local overheating. The electric cabinet is isolated and protected to help limit dust and aluminum scrap contamination, which can support basic safety needs in extended workshop operation.

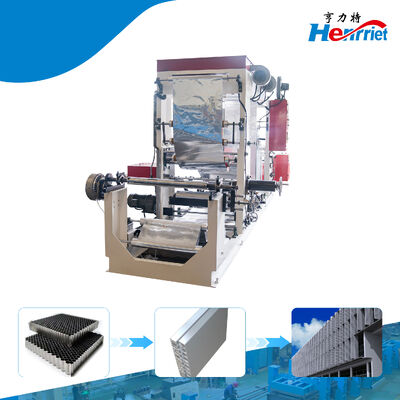

The machine produces glued aluminum foil substrates for aluminum honeycomb core manufacturing and can be used in aluminum honeycomb panel production lines. Finished honeycomb cores are often applied in building curtain wall panels, cleanroom sandwich panels, lightweight rail transit components, marine composite panels, and decorative honeycomb boards.
Rollers, transmission assemblies, heating ducts, and cutting mechanisms are arranged in modular form to facilitate inspection and disassembly. Lubrication points are provided at transmission locations, and the control panel gives status feedback for condition checks. Routine maintenance mainly involves cleaning glue rollers, removing dust from heating ducts, and checking gaps in cutting guides. Periodic fastener tightening can help support more uniform operation over time.
| Aluminum foil coating speed | 0–30 m/min |
|---|---|
| Heating system | Room temperature to 80°C ± 5°C, adjustable |
| Aluminum foil substrate width | 590 mm |
| Width of adhesive strip for printing | 590 mm |
| Printing roller circumference | 480 mm |
| Cutting length accuracy | Aligned ends with ±1 mm accuracy |
| Total input power | 20.5 KW |
We own two independent R&D and manufacturing facilities. No middlemen, no markups. You buy straight from the source, with full control over production speed and costs.
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you are making — we will build exactly what you need.
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations — ready to plug and play anywhere in the world.
We have shipped to over 50 countries and completed more than 1,000 custom designs. Our equipment is engineered for long-term, heavy-duty use and proven in real factories worldwide.

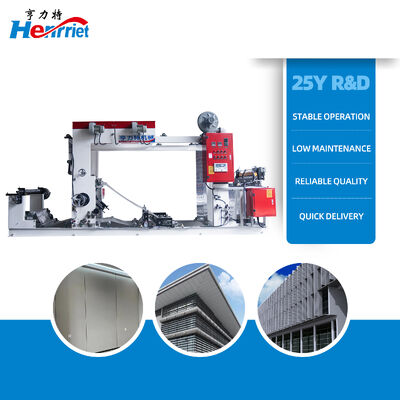

Aluminum honeycomb core gluing machine with gantry frame structure, showing unwinding, roller glue line printing, heating, and cutting units.
Company facility overview of the aluminum honeycomb machinery manufacturer.
Manufacturing workshop and production equipment of the company.
Corporate advantages and capabilities of the machinery manufacturer.
Customers visiting the factory and communicating with engineering staff.
Production level and manufacturing process of the aluminum honeycomb machinery.
Company participation in industry exhibitions and technical exchange events.
Packaging and logistics process for shipping machinery to customers.
CE and ISO 9001 certificates and industry honors awarded to the company.
We are based in Guangdong, China, and have been in business since 2016. Our sales distribution covers the Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), and Eastern Asia (2.00%). We have over 110 employees.
We have more than 20 years of experience in the woodworking machinery industry. We operate two factories covering over 20,000 square meters with more than 130 professional employees, including a senior design team of over 30 engineers. We can tailor-make machine design drawings according to your needs and ensure perfect production and manufacturing. We also provide comprehensive installation, commissioning, and operator training so your machine can be put into production immediately upon arrival.
Quality is ensured through a structured process:
