| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |

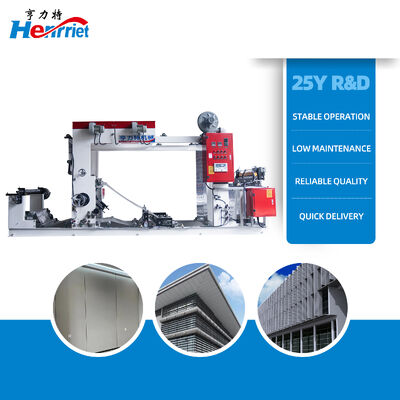

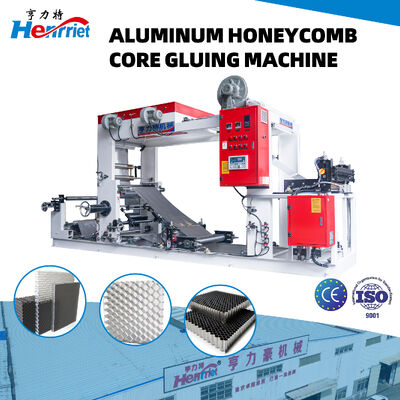

This equipment is an integrated aluminum foil coating and printing machine built on a compact gantry frame. Unwinding, roller-based adhesive line printing, temperature-controlled heating, conveying, and fixed-length cutting are combined into one coordinated system.
Developed for aluminum honeycomb core manufacturing, the machine applies adhesive lines onto aluminum foil substrates by roller printing. Gluing, preheating, and cutting are completed in a linked operation, producing coated foil with fairly orderly ends for subsequent core stacking. In contrast to spray gluing, roller coating printing can offer more repeatable adhesive line formation.
The machine offers stepless speed adjustment to suit varied production tact arrangements. Coating, heating, and cutting are coordinated in one workflow, with less need to move materials between separate stations and fewer idle periods linked to process handover. Adhesive lines are formed in a repeatable manner, and cut ends tend to remain orderly, which can reduce adjustment effort in later core stacking and help support steady batch processing of honeycomb core substrates.
An independent electrical control cabinet is provided, with power circuits and control circuits arranged in separate zones. Space for guarding is reserved around moving rollers, and interlock limit devices are fitted at operating positions. The heating module uses closed-loop temperature regulation to help reduce the risk of local overheating. The electrical cabinet is separated and protected to lower exposure to dust and aluminum scraps, in line with common safety practices for extended workshop operation.

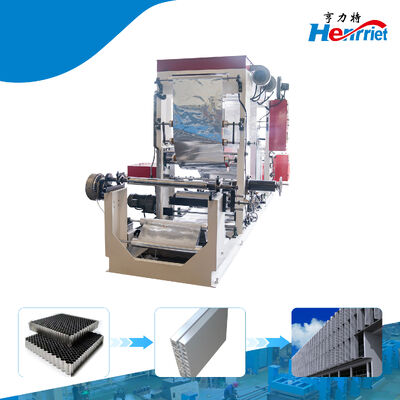

The equipment supplies adhesive-coated aluminum foil substrates for aluminum honeycomb core production and can be used with aluminum honeycomb panel lines. Resulting honeycomb cores are commonly applied in building curtain wall panels, cleanroom sandwich panels, lightweight rail transit parts, marine composite panels, and decorative honeycomb boards.

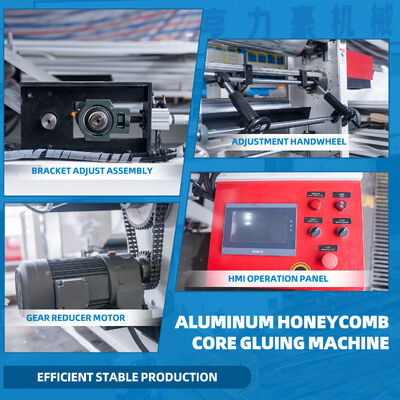

Rollers, transmission assemblies, heating ducts, and cutting mechanisms are arranged in modular form to facilitate inspection and removal. Lubrication points are provided at transmission locations, and the control panel gives real-time status feedback for convenient condition checks. Routine upkeep mainly involves cleaning glue rollers, removing dust from heating ducts, and checking gaps in cutting guides. Tightening fasteners at intervals can help support steady operation over time.
| Aluminum foil coating speed | 0–30 m/min |
|---|---|
| Heating system | Room temperature to 80°C ± 5°C, adjustable |
| Aluminum foil substrate width | 590 mm |
| Width of adhesive strip for printing | 590 mm |
| Printing roller circumference | 480 mm |
| Cutting length accuracy | Aligned ends with ±1 mm accuracy |
| Total input power | 20.5 KW |
We own two independent R&D and manufacturing facilities. No middlemen, no markups. You buy straight from the source, with full control over production speed and costs.
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you are making — we will build exactly what you need.
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations — ready to plug and play anywhere in the world.
We have shipped to over 50 countries and completed more than 1,000 custom designs. Our equipment is engineered for long-term, heavy-duty use and proven in real factories worldwide.
We are based in Guangdong, China, and have been in business since 2016. Our sales distribution covers the Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), and Eastern Asia (2.00%). We have over 110 employees.
We have more than 20 years of experience in the woodworking machinery industry. We operate two factories covering over 20,000 square meters with more than 130 professional employees, including a senior design team of over 30 engineers. We can tailor-make machine design drawings according to your needs and ensure perfect production and manufacturing. We also provide comprehensive installation, commissioning, and operator training so your machine can be put into production immediately upon arrival.
Quality is ensured through a structured process:
