50 Tons Maximum Pressure Cold Press Machine with 4500mm Processing Length and Perforated Workbench for Door Panel Production

50 Tons Maximum Pressure Cold Press Machine with 4500mm Processing Length and Perforated Workbench for Door Panel Production

Brand Name: Henrriet
MOQ: 1
Price: Online/offline communication
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE、ISO 9001
Pressure Mode:
Top-down Pressing
Maximum Pressure:
50 Tons
Workbench Dimensions:
4500mm*2500mm
Drilling Holes On The Workbench:
30mm Square Holes On Upper And Lower Platens, 80mm Pitch Between Holes
Maximum Processing Length:
4500mm
Maximum Processing Width:
2500mm
Pressure Plate Spacing:
1300mm
Specification And Quantity Of Oil Cylinders:
6 Pcs, 70mm × 100mm
Hydraulic System Power:
5.5KW
Overall Dimensions:
Overall Dimension: 5000mm × 2500mm × 3700mm
Packaging Details:
Film with Foam
Highlight:

50 tons maximum pressure Cold Press Machine

,

4500mm maximum processing length Hydraulic Press

,

Perforated workbench Door Panel Press

Product Description
Door Bonding Perforated Cold Press with Multi-cylinder Uniform Pressure for Heated Forming of Large Door Panels
Product Overview

This advanced cold press features a vertical hydraulic layout supported by a robust gantry frame. The innovative perforated work surface allows for customizable heating element placement, while a multi-cylinder synchronization system ensures uniform pressure distribution during the lamination process.

Key Features
  • Superior Production Capacity: Accommodates full-size panels with expansive workbench, enabling single-cycle processing without workpiece segmentation. Multi-cylinder synchronous drive ensures consistent pressure distribution for continuous manufacturing of large composite sheets.
  • Security Guarantee: Integrated hydraulic monitoring with side-mounted control interface for safe operation. Welded gantry structure withstands rated working pressures with internal safety mechanisms and industrial-standard fittings.
  • Application Areas: Ideal for thermal pressing and forming of honeycomb structures, sandwich composites, and adhesive bonding of various door panel types. Suitable for architectural decorative sheets, composite doors, and metal-clad panels.
  • Maintenance and Upkeep: Externally positioned hydraulic components facilitate visual inspections. Centralized control elements simplify troubleshooting with easy heating rod removal for maintenance.
Technical Specifications
Specification Details
Pressure Mode Top-down pressing
Maximum Pressure 50 tons
Workbench Dimensions 4500mm × 2500mm
Drilling Holes 30mm square holes, 80mm pitch
Maximum Processing Length 4500mm
Maximum Processing Width 2500mm
Pressure Plate Spacing 1300mm
Oil Cylinders 6 pcs, 70mm × 100mm
Hydraulic System Power 5.5KW
Overall Dimensions 5000mm × 2500mm × 3700mm
Company Advantages
  • Two In-House Factories: Competitive pricing and faster delivery with no intermediaries
  • Custom-Built Solutions: 30+ senior engineers design machines tailored to your production needs and budget
  • Global Certification: CE & ISO 9001 certified, compliant with international standards
  • Proven Experience: Shipped to 50+ countries with 1000+ custom designs for heavy-duty use
Service Support
  • Warranty: 1 year comprehensive coverage
  • Packaging: Protective film with foam insulation
  • Customer Service: 24-hour hotline with 48-hour response for repair needs
  • Training: Free video training and process guidance manuals
  • Technical Support: Lifetime support and software upgrade services
Product Image

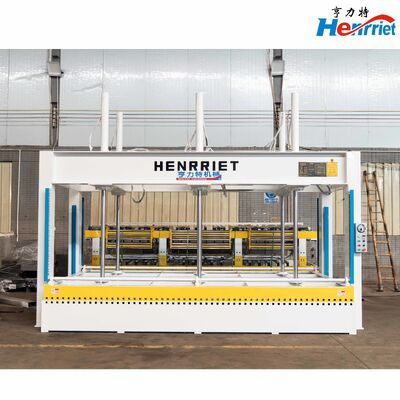

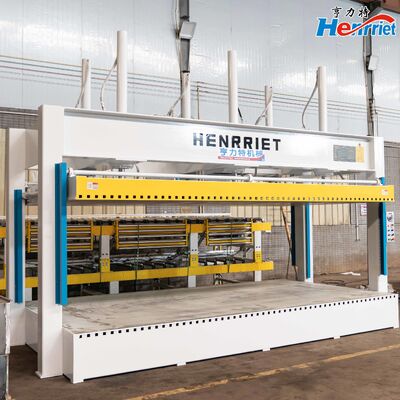

Large Worktable Perforated Cold Press Machine showing industrial design and work surface
Manufacturing Facility
Modern manufacturing facility overview showing production area
Advanced production equipment in operation
Corporate advantages and capabilities display
International visitors and technical exchange
Advanced manufacturing process demonstration
Industry exhibition and professional exchange
Professional packaging and logistics operations
Company certificates and industry honors
Frequently Asked Questions
Who are we?
Based in Guangdong, China since 2016, we serve Domestic Market (55%), Africa (20%), South Asia (9%), Central America (6%), Oceania (5%), South America (3%), and Eastern Asia (2%) with over 110 employees.
Why should you buy from us instead of other suppliers?
With over 20 years in the wooden machinery industry, we operate two factories covering 20,000+ square meters with 130+ professional employees including 30+ engineers. We provide custom machine design, comprehensive installation, commissioning, and operator training.
How can we guarantee quality?
Quality assurance through customer communication, engineer-designed drawings, on-site operational guidance, full process testing, and final inspection before shipment.
What can you buy from us?
Hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and non-standard automated production lines.
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash. Languages: English, Chinese, Spanish, Japanese, Russian, Hindi.
