20T Maximum Pressure Hydraulic Cold Press Machine with Integrated Conveyor System for 2500mm Door Panel Processing

20T Maximum Pressure Hydraulic Cold Press Machine with Integrated Conveyor System for 2500mm Door Panel Processing

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Maximum pressure:

20T

Pressure plate size:

2500mm*1400mm

Maximum processing length:

2500mm

Maximum processing width:

1400mm

Pressure Plate Opening Distance:

750mm

Oil cylinder specifications:

2 Cylinders （90mm*60mm）

Power:

4KW

Overall dimensions:

3000*1400*2600mm

Inclined Belt Conveyor Frame Dimension:

3200mm*2500mm

Inclined Belt Conveyor Frame Power:

750W

Inclined Belt Conveyor Frame Voltage:

380V/3‑Phase/50Hz

Packaging Details:

Film with Foam

Highlight:

20T Maximum Pressure Cold Press Machine

2500mm Processing Length Door Panel Press

Integrated Conveyor System Hydraulic Cold Press

Product Description

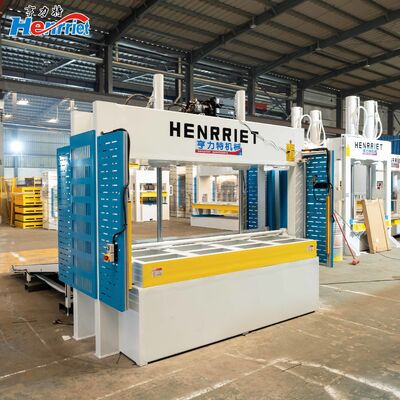

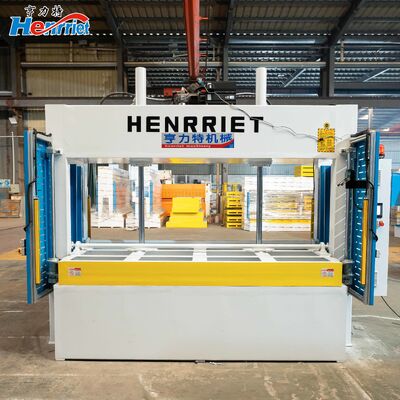

Cold Press with Conveyor for Door Panel Manufacturing

Product Overview

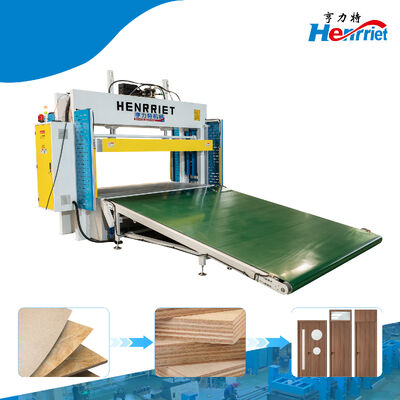

This conveyor-equipped cold press machine features an inclined belt conveyor frame and stable structure with side safety protection baffles. The extended feeding table supports integrated operation of panel feeding and cold pressing processing, reducing manual or forklift-assisted loading operations.

Key Features

Superior Production Capacity: Integrated belt conveyor simplifies panel loading and reduces transfer procedures, minimizing surface damage during handling
Security Guarantee: Protective baffles cover moving parts, mechanical limit structures prevent panel deviation, and warning marks guide safe operation
Application Areas: Suitable for room-temperature composite pressing of various panel materials including honeycomb composite panels, wooden doors, cabinet door panels, furniture boards, fireproof panels, and decorative panels
Maintenance and Upkeep: Regular hydraulic oil replacement, bolt tightening, conveyor belt inspection, and professional maintenance of hydraulic components

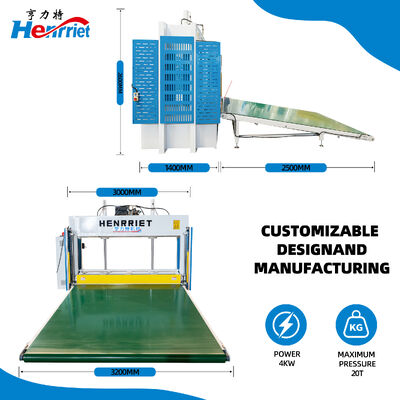

Technical Specifications

Maximum pressure	20T
Pressure plate size	2500mm × 1400mm
Maximum processing length	2500mm
Maximum processing width	1400mm
Pressure plate opening distance	750mm
Oil cylinder specifications	2 cylinders (90mm × 60mm)
Power	4KW
Overall dimensions	3000 × 1400 × 2600mm
Inclined belt conveyor frame dimension	3200mm × 2500mm
Inclined belt conveyor frame power	750W
Inclined belt conveyor frame voltage	380V/3-Phase/50Hz

Company Advantages

Direct Manufacturing

Two in-house factories ensure better prices and faster delivery with no middlemen markups.

Expert Engineering

30+ senior engineers provide custom-built solutions tailored to your production needs.

Quality Certified

CE & ISO 9001 certified, compliant with international electrical, mechanical, and safety regulations.

Global Experience

50+ countries, 1000+ projects with equipment engineered for long-term, heavy-duty use.

Service Support

Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline
48-hour response to repair needs
Free video training for operators
Process guidance manuals provided
Lifetime technical support and software upgrades

Product Image

Frequently Asked Questions

Who are we?
Based in Guangdong, China since 2016. We serve Domestic Market (55%), Africa (20%), South Asia (9%), Central America (6%), Oceania (5%), South America (3%), and Eastern Asia (2%) with over 110 employees.

Why choose us over other suppliers?
20+ years in wooden machinery industry. Two factories covering 20,000+ square meters. 130+ professional employees including 30+ engineers. Custom machine design, comprehensive installation, commissioning, and operator training.

How do we guarantee quality?

Confirm machine functions through customer communication
Engineers complete machine drawing design
On-site guidance for cutting, welding, and assembly
Full process testing by quality inspectors
Final inspection by engineers before shipment

What products do we offer?

Hydraulic cold presses
Single-layer and multi-layer hot presses
Glue spreading machines
Automatic feeders
Turnover machines
Automatic palletizers
Non-standard automated production lines

What services do we provide?
Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery
Payment Currency: USD, EUR, CNY
Payment Type: T/T, L/C, PayPal, Western Union, Cash
Languages: English, Chinese, Spanish, Japanese, Russian, Hindi
