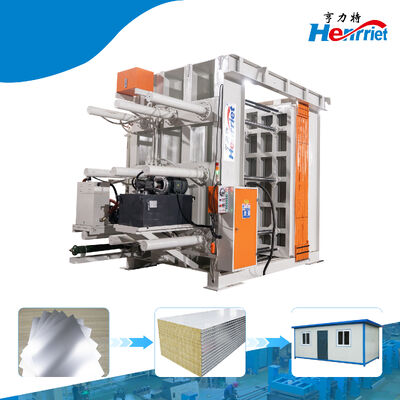

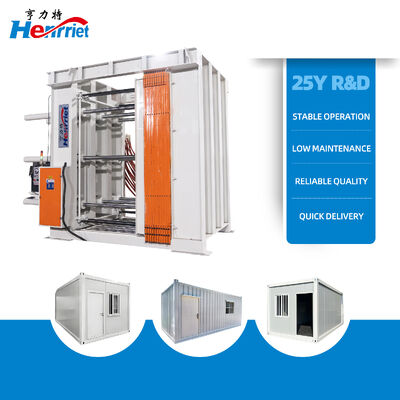

Large‑Platen Horizontal Hydraulic Laminating Press for Insulation Sandwich Composite Panel Factories
The horizontal multi-layer laminating press belongs to the category of hydraulically driven, multi-station equipment for composite material pressing. With a horizontal frame layout and an electrically controlled heating system, the machine is suited to panel bonding work where adhesives are sensitive to temperature. Several independent working layers are combined with silicone cushion pads, and the reinforced welded frame offers dependable structural rigidity.
The unit is designed for the lamination of large-size composite boards, and its overall dimensions can be adjusted to meet project requirements. It may be used on its own, or linked into automated panel production lines, where it is capable of handling the bonding of extra-large workpieces under demanding conditions.
This equipment is commonly adopted by manufacturers of composite panels. It fits lamination tasks for:
The machine is suitable for producing decorative building materials, clean-room wall panels, and exterior cladding products. It works well for both customized small-batch orders and normal large-volume production. When combined with gluing machines, panel turnover devices, and other units, an integrated composite panel production line can be established.
Routine care is mainly directed at the hydraulic system:
All maintenance work should be carried out only after power is off and pressure has been released.
| Parameter | Specification |
|---|---|
| Pressure mode | Horizontal pressing |
| Number of layers | 10 layers, with a 3 cm thick self-adhesive silicone pad on each layer |
| Pressure plate size | 3200mm*2400mm*42mm*11 pieces |
| Pressure plate spacing | 150mm |
| Maximum temperature | 60 ℃ |
| Maximum pressure | 200T |
| Number of oil cylinders | 9 pieces (90mm*125mm) |
| Hydraulic system power | 11KW |
| Oil pump motor power | 4KW |
| Heating method | Electric heating |
| Heating power | 72KW |
| Weight (approx) | About 40 tons |
| Overall dimensions | 6500*3600*4800mm (customizable) |
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
We are based in Guangdong, China, starting from 2016, selling to Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), Eastern Asia (2.00%). We have over 110 employees.
More than 20 years in wooden machinery industry. We have two factories covering an area of over 20,000 square meters. We have over 130 professional employees, including a senior design team consisting of over 30 engineers. We can tailor-make machine design drawings according to your needs and ensure perfect production and manufacturing. We provide comprehensive installation, commissioning, and operator training to ensure that your machine can be put into production immediately upon arrival.
