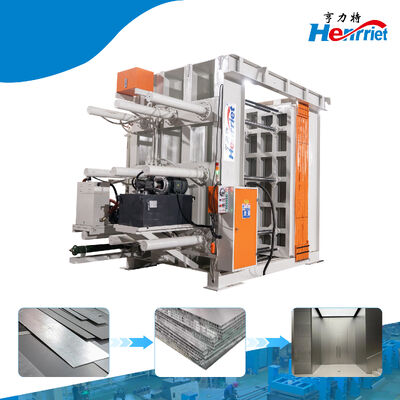

200T Maximum Pressure 10-Station Electric Heating Horizontal Hot Press Machine for Honeycomb Panels and Door Panels

Different from single‑layer pressing machines, its multi‑station design enables simultaneous pressing of multiple workpieces, reducing batch cycles and streamlining overall production workflow. Synchronized multi‑cylinder hydraulic delivery delivers balanced force across full panel surface, mitigating panel delamination and poor bonding caused by uneven pressure distribution.

Horizontal layout simplifies loading‑unloading operations for large panels compared with conventional vertical presses. Large platens accommodate oversized workpieces. Built‑in silicone cushions safeguard panel finish and prevent indentation defects. Customization options are available to match factory site conditions and production layout.

Heavy‑duty welded frame delivers structural stability under long‑term continuous operation. The hydraulic system is fitted with standard industrial protection assemblies to lower fluid leakage risks. Centralized electric control unit provides convenient human‑machine interface for full pressing workflow management.

Mechanical limit stops restrict platen travel to avoid over‑stroke hazards. Electric heating unit maintains controlled moderate temperature range, preventing thermal damage to raw materials and adhesive layers. Operators shall follow standard operating procedures. Periodic inspection for pipelines and electrical components further secures on‑site operational safety.

This horizontal laminating press serves composite panel manufacturers widely. It is suitable for lamination of honeycomb panels, magnesium‑based composite boards, sandwich insulation panels, architectural cladding panels and metal composite panels.

It supports production of building decorative materials, clean‑room panels and exterior wall cladding products. It handles both custom small‑batch orders and regular mass production. It can connect with gluing machines, panel turnover machines and other upstream & downstream units to form a complete composite panel production line.

Daily maintenance focuses on hydraulic system. Regularly inspect oil cylinders and pipe joints for leakage. Replace hydraulic oil following official specifications to keep stable hydraulic output.

Silicone cushions are wearing parts. Check surface condition routinely and replace worn or damaged cushions to prevent workpiece scratching. Inspect electric wiring and heating components, remove dust and debris for proper heat dissipation and reliable electrical contact.

Re‑tighten frame and platen fasteners periodically. Hydraulic and electric assemblies shall not be disassembled by unqualified personnel. For long‑term shutdown, apply dust‑proof protection and keep platens at safe open position. All maintenance work must be performed under power‑off and pressure‑release status.
