10M Door Panel Hot Press Production Line with 100t Maximum Pressure and Electric Heating Heat Transfer for Wood Steel Doors

10M Door Panel Hot Press Production Line with 100t Maximum Pressure and Electric Heating Heat Transfer for Wood Steel Doors

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Heating Method:

Electric Heating Heat Transfer Oil Heat Transfer

Pressure Plate Size:

10000*1300mm

Brush Motor:

1.1KW

Maximum Temperature:

100℃

Hydraulic System Motor Power:

7.5KW

Total Power:

164.6KW

Upstage Fabric Rolling Motor:

1.5KW*2

Actual Composite Maximum Size:

9800*1200mm

Maximum Pressure:

100t

Number Of Layers:

1-layer

Heating Cycle Motor:

3KW*2pcs

Plate Thickness:

60mm*2pcs

Belt Conveyor Power:

3KW

Oil Cylinders And Quantity (piston Cylinders):

12PCS（70mm*100mm*300mm）

Heating System Power:

90KW*2=180KW

Opening Spacing:

0-300mm

Packaging Details:

Film with Foam

Product Description

Door Panel Hot Press Production Line – 10M Automatic Conveyor System for Wood Steel Cold Storage & Vehicle Doors

Product Overview

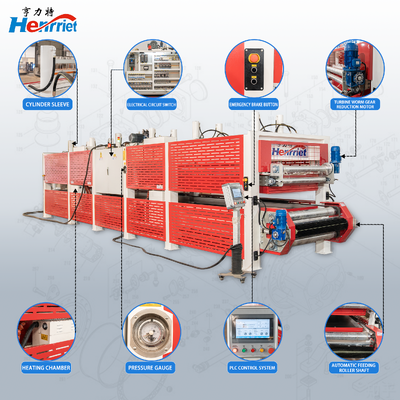

The 10-meter hot press automatic conveying production line is a large-scale composite manufacturing unit that integrates an ultra-long hot press with a fully synchronized material handling system. The core configuration includes a heavy-duty hot press mainframe, a 10-meter infeed conveyor, a discharge stacking device, a precision temperature control heating loop, a forced cooling and shaping section, and a PLC-based central control panel.

Key Features

Superior Production Capacity: Completely hands-free, uninterrupted operation with integrated conveyor mechanism eliminates manual loading/unloading. PLC-driven control system oversees every stage from raw material feeding to finished panel discharge.
Integrated Safety and Protection: Fully enclosed guards and interlocked isolation barriers protect operators from high-temperature zones and moving mechanisms. Emergency stop buttons strategically placed at every operator station.

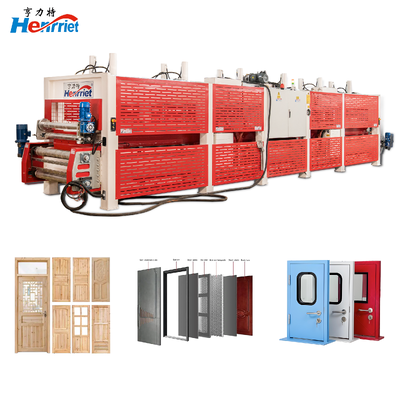

Wide-Ranging Application Versatility: Suitable for composite wood doors, stainless steel doors, cold storage doors, and cooler room doors requiring precise hot pressing and superior bonding strength.
Easy Maintenance and Technical Support: Routine upkeep procedures with no-load test runs to verify transmission parts and safety device functionality.

Technical Specifications

Maximum Pressure	100 Ton
Pressure Plate Size	10000×1300mm
Plate Thickness	60mm×2pcs
Actual Composite Maximum Size	9800×1200mm
Number of Layers	1-layer
Opening Spacing	0-300mm
Heating Cycle Motor	3KW×2pcs
Belt Conveyor Power	3KW
Brush Motor	1.1KW
Upstage Fabric Rolling Motor	1.5KW×2
Hydraulic System Motor Power	7.5KW
Oil Cylinders and Quantity	12PCS (70mm×100mm×300mm)
Heating System Power	90KW×2=180KW
Heating Method	Electric Heating Heat Transfer Oil Heat Transfer
Maximum Temperature	100℃
Total Power	164.6KW

Corporate Advantages

Two In-House Factories: Better prices and faster delivery with no middlemen or markups
30+ Senior Engineers: Custom-built solutions designed around your production needs, floor space, and budget
CE & ISO 9001 Certified: Global-ready equipment meeting international electrical, mechanical, and safety regulations
50+ Countries, 1000+ Projects: Proven experience in design and manufacturing for long-term, heavy-duty use

Service Support

Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline with 48-hour response to repair needs
Free video training for operators and process guidance manuals
Lifetime technical support and software upgrade services

Product Gallery

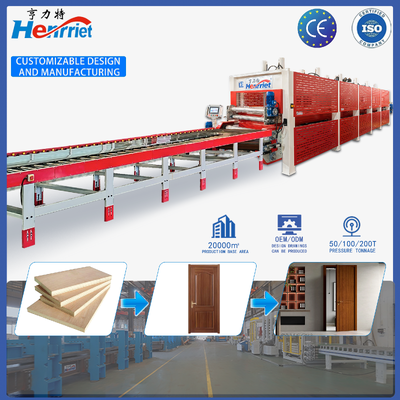

Production Line Overview

Scope of Application

Product Display

Production Workshop

Product Details

Company Profile

Corporate Advantages

Visitors and Communication

Manufacturing Process

Exhibition and Exchange

Packaging and Logistics

Certificates and Honors
