250 T Dual Station Sliding Table Hot Press Machine for Carbon Fiber and Anti-Theft Doors

250 T Dual Station Sliding Table Hot Press Machine for Carbon Fiber and Anti-Theft Doors

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Maximum Pressure:

940mm

Workbench Dimensions:

250 T

Mobile Carrier Template Size:

4560mmX2160mm*1 Pcs

Actual Composite Size:

4560mm*2160mm*2pcs

Plate Thickness:

4360mm*2060mm

Spacing:

1-layer

Maximum Pressure Push Down And Up Workbench Dimensions 250 T Mobile Carrier Template Size 4560mmX216:

100mm

Motor Power Of Hydraulic System:

3kw

Oil Cylinder Specification:

7.5kw

Heating System Power:

8pcs*150mm

Power For Entering And Exiting The movable Sliding Platform:

72KW

Cooling Method:

2.2KW*4pcs

Control System:

6-power Refrigeration Unit

Maximum Temperature:

PLC+touch Screen

Total Power:

80℃

Height Of The Movable Workbench Above the Ground:

73.3KW

Packaging Details:

Film with Foam

Product Description

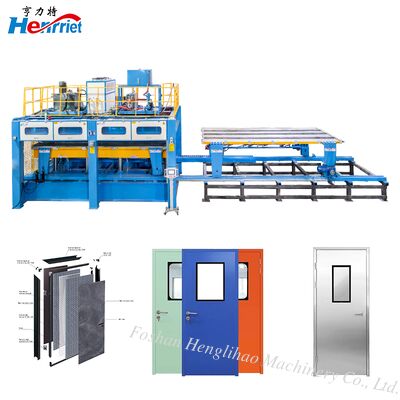

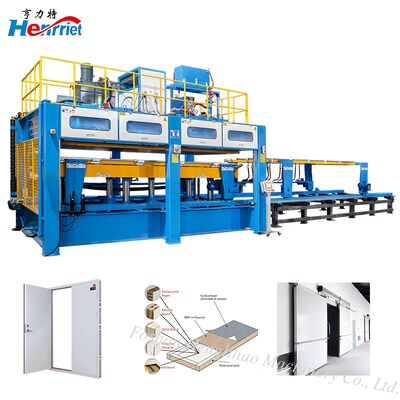

250 t Dual Station Sliding Table Hot Press Machine for Carbon Fiber Doors and Anti-Theft Doors

Product Overview

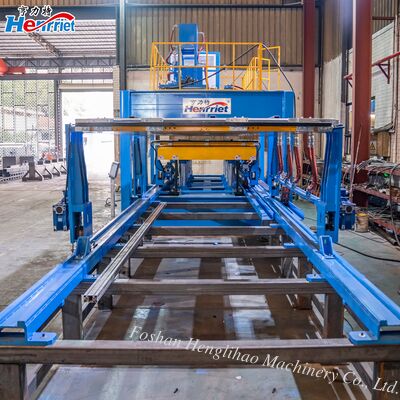

This innovative hot press system integrates a precision-crafted hot press frame with a dual-station sliding table conveyor, establishing a fluid workflow optimized for high-efficiency production. Its design harmonizes dynamic slide tables, synchronized conveyor networks, hydraulic elevation systems, and centralized controls, enabling a tri-phase operational cycle: material preparation, staging, and active pressing.

The dual-zone architecture allows operators to load/unload materials at one station while the adjacent station undergoes thermal compression, creating an uninterrupted "load-and-press" rhythm. Upon cycle completion, the sliding table automatically transitions between zones, eradicating idle time common in single-station systems.

Key Features

Superior Production Capacity: Dual-station alternating workflow with seamless slide table transitions and automated conveyor framework achieves full automation from panel feeding to discharge, converting batch processing into continuous operation.
Integrated Safety and Protection: Layered safety mechanisms including universal emergency shutdown, dual limit protection, conveyor safety interlocks, and hydraulic overload safeguards ensure operator and equipment safety in high-temperature, high-pressure environments.
Wide-Ranging Application Versatility: Excels in crafting high-end wood veneer panels and bespoke architectural elements, including solid wood lamination and custom batch flexibility for various projects.
Easy Maintenance and Technical Support: Systematic maintenance protocols including pre-operation checks, mechanical lubrication, hydraulic health monitoring, and sensor calibration ensure sustained operational excellence.

Technical Specifications

Specification	Value
Maximum Pressure	Push down and up
Workbench Dimensions	250 T
Mobile Carrier Template Size	4560mm × 2160mm × 1 pc
Actual Composite Size	4560mm × 2160mm × 2 pcs
Plate Thickness	4360mm × 2060mm
Number of Layers	Fixed workbench: 50mm × 1 piece Mobile loading template: 70mm × 2 pieces
Spacing	1-layer
Heating Cycle Motor Power	3kW
Motor Power of Hydraulic System	7.5kW
Oil Cylinder Specification	8 pcs × 150mm
Heating System Power	72kW
Power for Entering/Exiting Movable Sliding Platform	2.2kW × 4 pcs
Cooling Method	6-power refrigeration unit
Control System	PLC + touch screen
Maximum Temperature	80℃
Total Power	73.3kW
Height of Movable Workbench Above Ground	940mm
