100T Pressure Automatic Gantry Movable Hot Press Machine with Electric Heating for Insulation and Cold Storage Doors

100T Pressure Automatic Gantry Movable Hot Press Machine with Electric Heating for Insulation and Cold Storage Doors

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Pressure Method:

Press Up And Down

Number Of Layers:

1-layer

Platen Size:

5200mm X 2800mm X 20mm X 3 Pieces

Platen Spacing:

200mm

Height Of Equipment Base Bracket:

750mm

Maximum Temperature:

60℃

Maximum Pressure:

100T

Oil Cylinder Specification:

9pcs(70mmX100mm)

Power:

5.5KW

Heating Method:

Electric Heating

Packaging Details:

Film with Foam

Product Description

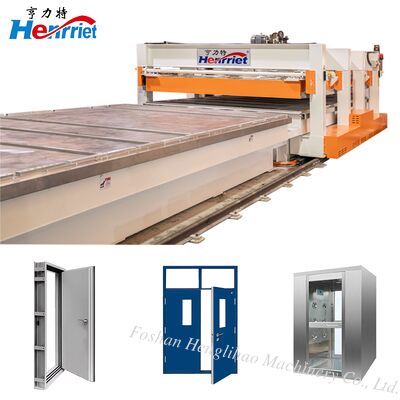

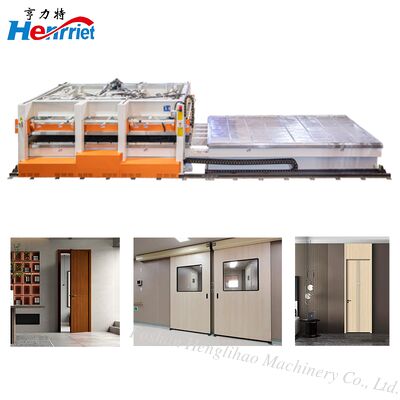

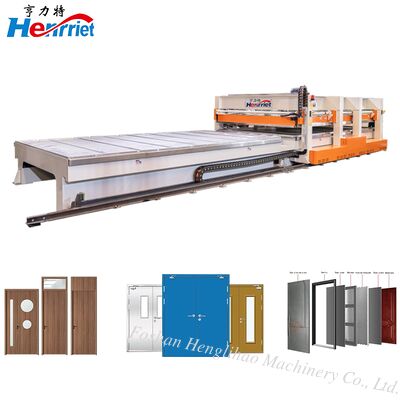

100T Pressure Automatic Gantry Movable Hot Press Machine

For insulation doors and cold storage doors manufacturing

Product Overview

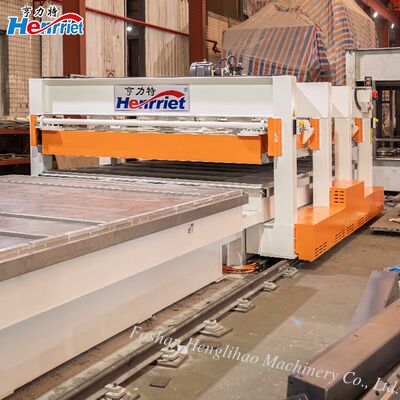

The Gantry Mobile Thermal Press System represents an integrated production solution that merges a mobile gantry press host with an automated conveyor framework. Its architectural core comprises a movable gantry frame, precision-engineered hot press platens, hydraulic elevation modules, automated conveyor racks, and intelligent electrical controls.

Unlike conventional fixed hot presses, this system employs a mobile gantry design that glides along tracks, enabling seamless coordination with multiple fixed workstations to achieve a "single-host, dual-workstation" circular operation model. By replacing manual workpiece handling with gantry frame mobility, the system minimizes workpiece transfer time and human intervention, streamlining production efficiency.

Key Features

Superior Production Capacity: The system's "single-host, multi-workstation" cyclic operation redefines traditional intermittent workflows, enabling sequential processing and continuous production rhythm that eliminates idle time between processes.
Integrated Safety and Protection: Comprehensive safety mechanisms including track safety interlocks, anti-collision buffers, torque-limiting systems, emergency stop controls, and independent over-temperature protection circuits.
Wide-Ranging Application Versatility: Supports specialized door manufacturing across thermal insulation doors, explosion-proof doors, and cold storage doors for various industrial applications.
Easy Maintenance and Technical Support: Modular positioning design allows quick mold changes, with comprehensive operator training and regular diagnostic checks to ensure long-term performance integrity.

Technical Specifications

Pressure Method	Press up and down
Number of Layers	1-layer
Platen Size	5200mm x 2800mm x 20mm x 3 pieces
Platen Spacing	200mm
Height of Equipment Base Bracket	750mm
Maximum Temperature	60℃
Maximum Pressure	100T
Oil Cylinder Specification	9pcs (70mmX100mm)
Power	5.5KW
Heating Method	Electric heating

Company Advantages

Two In-House Factories: Better prices and faster delivery with no middlemen markups
30+ Senior Engineers: Custom-built solutions designed around your production needs
CE & ISO 9001 Certified: Global-ready equipment meeting international standards
50+ Countries, 1000+ Projects: Proven experience in design and manufacturing worldwide
