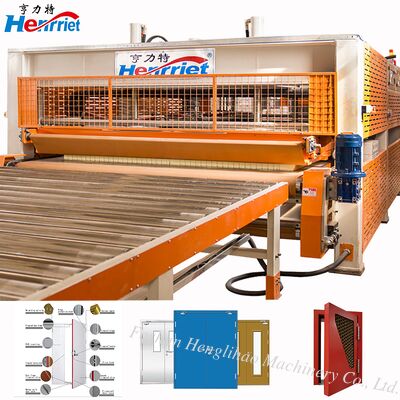

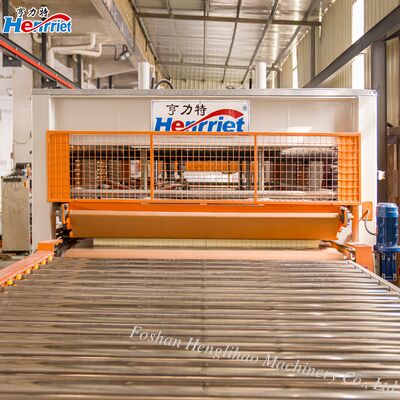

80T Maximum Pressure Single Layer Hot Press Machine with 4600mm*2650mm Work Platen for Laminated Wooden Steel Doors

80T Maximum Pressure Single Layer Hot Press Machine with 4600mm*2650mm Work Platen for Laminated Wooden Steel Doors

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Maximum Pressure:

80 T

Work Platen Size:

4600mm*2650mm

Systm Pressure:

20 MPa

Max.platen Opening:

300mm

Maximum Temperature:

100℃

Working Level:

1-layer

Oil Cylinder Specification:

350mm*70mm * 6pcs

Hydraulic Pump Power:

5.5kw

Hot Oil Pump Power:

2.2kw

Heating Pipe Power:

72kw

Overall Dimensions:

5750*3553*2300mm

Weight (about):

18000 Kg

Packaging Details:

Film with Foam

Highlight:

80T hot press machine for laminated doors

single layer hot press machine with large platen

wooden steel door production press machine

Product Description

80T Single Layer Hot Press Automatic Production Line for Laminated Wooden Steel Wooden Doors

Product Overview

The Automated Conveyor Integration for Hot Press Systems represents a synergistic production unit merging the hot press host with an advanced conveyor framework. Its architectural core comprises the hot press body, dual-direction conveying mechanisms, hydraulic elevation modules, and intelligent electrical controls.

Operating in a "single-in, single-out" flow pattern, the system employs hydraulic lift roller conveyors at front and rear workstations to ensure seamless panel entry into the pressing chamber and automated transfer of finished products to subsequent stations. This closed-loop collaboration enables end-to-end automation spanning loading, curing, and unloading stages.

Key Features

Superior Production Capacity: Continuous-cycle operation model with dual-tier pre-assembly and synchronized foaming-unloading cycle minimizes cycle times and eliminates material handling delays.
Integrated Safety and Protection: Comprehensive safety system with protective baffles, multi-layered electrical defenses, intelligent thermal management, and emergency stop controls.
Wide-Ranging Application Versatility: Stable pressure distribution and uniform heating performance suitable for cold storage doors, stainless steel doors, steel-wood composite doors, and cleanroom compliance standards.
Easy Maintenance and Technical Support: Proactive maintenance protocols with regular inspections, cleaning, and assessments to ensure sustained operational reliability.

Technical Specifications

Maximum Pressure	80 T
Work Platen Size	4600mm × 2650mm
System Pressure	20 MPa
Maximum Platen Opening	300mm
Maximum Temperature	100℃
Working Level	1-layer
Oil Cylinder Specification	350mm × 70mm × 6pcs
Hydraulic Pump Power	5.5kw
Hot Oil Pump Power	2.2kw
Heating Pipe Power	72kw
Overall Dimensions	5750 × 3553 × 2300mm
Weight (Approximate)	18000kg

Corporate Advantages

Two In-House Factories: Better prices and faster delivery with no middlemen markups
30+ Senior Engineers: Custom-built solutions designed around your production needs, floor space, and budget
CE & ISO 9001 Certified: Global-ready equipment meeting international electrical, mechanical, and safety regulations
50+ Countries, 1000+ Projects: Proven experience in design and manufacturing for long-term, heavy-duty use

Service Support

Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline with 48-hour response to repair needs
Free video training for operators and process guidance manuals
Lifetime technical support and software upgrade services

Scope of Application

Production Workshop

Product Details

Company Overview

Corporate Excellence

Corporate Advantages

Visitors and Communication

Production Level and Manufacturing Process

Exhibition and Exchange

Packaging and Logistics

Certificates and Honors
