160T Six-Layer Press Machine with 4000mmX1450mm Work Platen for Wooden Warehouse Doors

160T Six-Layer Press Machine with 4000mmX1450mm Work Platen for Wooden Warehouse Doors

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Maximum Pressure:

160 T

Work Platen Size:

4000mmX1450mm

Systm Pressure:

20 MPa

Max.platen Opening:

100mm

Maximum Temperature:

80℃

Working Level:

8-layer

Oil Cylinder Specification:

110mm*80mm * 4pcs

Hydraulic Pump Power:

4kw

Hot Oil Pump Power:

2.2kw

Heating Pipe Power:

54kw

Overall Dimensions:

4580*2000mm*4866mm

Weight (about):

14000 Kg

Actual Maximum Size Of Composite Board:

3800mm*1350mm

Plate Thickness:

50mmX7 Pcs

Number Of Layers:

6-layer

Spacing:

120mm

Heating Cycle Motor:

3kw

Hydraulic System Motor Power:

7.5kw

Oil Cylinder And Quantity:

8 Pcs（110mm*80mm）

Heating System Power:

54KW

Total Power:

64.5KW

Weight (approximately):

23500 KG

Packaging Details:

Film with Foam

Highlight:

160T six-layer press machine

4000mmX1450mm work platen press

wooden warehouse door production line

Product Description

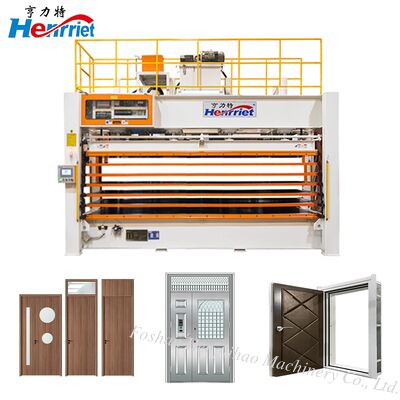

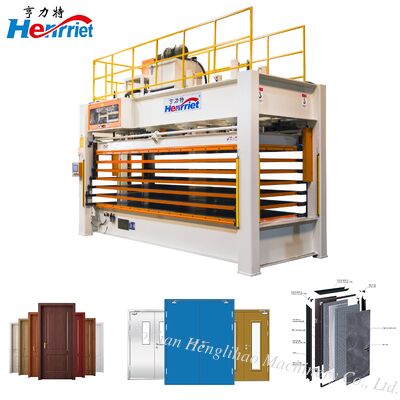

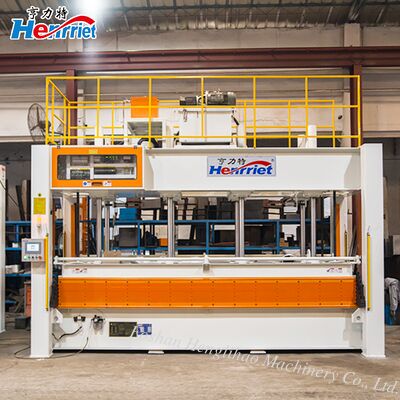

160T Six Layer Press Machine for Wooden Warehouse Doors

Product Overview

The Six-Layer Thermal Press System represents a heavy-duty, multi-tiered pressing solution engineered for optimized production of diverse panel materials. Its core architecture integrates a high-tonnage hydraulic mechanism with precision-regulated thermal control modules. The design features six independent pressing stations paired with a synchronized multi-cylinder hydraulic drive, enabling simultaneous vertical movement and interlinked operation of all six platens for enhanced throughput.

Key Features

Superior Production Capacity: Multi-layer configuration permits concurrent processing of six panel layers within a compact spatial footprint. Hydraulic subsystem employs balance-flow technology and high-pressure energy storage units to achieve rapid platen closure with reduced installed power, significantly boosting operational speed.
Integrated Safety and Protection: Critical safety controls including emergency stop mechanisms and infrared safety grids operate through redundant dual-circuit safety relays. Each tier incorporates dedicated overpressure relief valves, thermal runaway shutdown modules, and real-time monitoring systems.
Wide-Ranging Application Versatility: Excels in forming solid wood composite doors, molded door skins, door blanks, cleanroom steel doors, fire-rated safety doors, and various specialized door types.
Easy Maintenance and Technical Support: Routine upkeep involves maintaining cleanliness of equipment and surrounding areas. Pre-operation checks include hydraulic fluid levels, connection integrity, and safety device functionality.

Technical Specifications

Specification	Value
Maximum Pressure	160 T
Work Platen Size	4000mm × 1450mm
Actual Maximum Size of Composite Board	3800mm × 1350mm
Plate Thickness	50mm × 7 pcs
Number of Layers	6-layer
Spacing	120mm
Heating Cycle Motor	3kw
Hydraulic System Motor Power	7.5kw
Oil Cylinder and Quantity	8 pcs (110mm × 80mm)
Heating System Power	54KW
Maximum Temperature	80℃
Total Power	64.5KW
Overall Dimensions	4580 × 2000mm × 4866mm
Weight (approximately)	23500 KG

Company Advantages

Two In-House Factories: Better prices and faster delivery with no middlemen markups
Expert Engineering Team: More than 30 senior engineers for custom-built solutions
Global Certification: CE & ISO 9001 certified, ready for international markets
Proven Experience: Over 50 countries served with 1000+ successful projects
