Four layer laminating machine with 160 T maximum pressure and 4-layer independent workstation for high-temperature pressing up to 100℃

Four layer laminating machine with 160 T maximum pressure and 4-layer independent workstation for high-temperature pressing up to 100℃

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Maximum Pressure:

160 T

Systm Pressure:

20 Mpa

Work Platen Size:

4000*1500*50mm

Max.platen Opening:

120mm * 4-layer

Maximum Temperature:

100℃

Working Level:

4-layer

Oil Cylinder Specification:

110mm*80mm * 8pcs

Hydraulic Pump Power:

7.5kw

Hot Oil Pump Power:

3kw

Heating Pipe Power:

54kw

Overall Dimensions:

55000*2300*2800mm

Weight (about):

20000 Kg

Packaging Details:

Film with Foam

Product Description

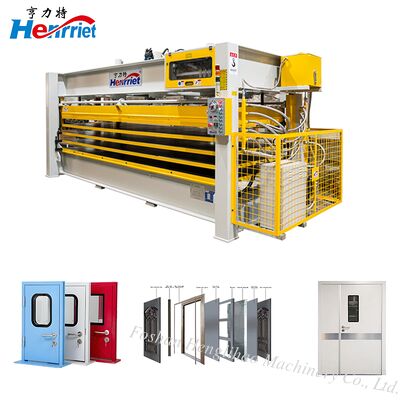

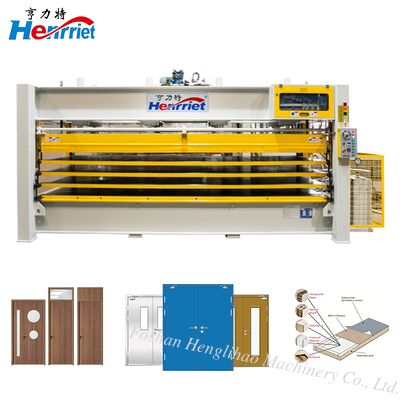

Four Layer High-Temperature Laminating Machine

Product Overview

The four-layer hot press machine represents a significant advancement in large-scale production equipment, specifically engineered for demanding manufacturing requirements of metal and composite building panels including aluminum-plastic composites, fire-resistant aluminum honeycomb structures, and corrugated composite boards.

The machine employs an innovative four-layer vertical stacking with independent station temperature control architecture, integrating four vertically distributed hydraulic drive pressing systems alongside partitioned thermal fluid circulation heating networks. This sophisticated configuration enables simultaneous processing across multiple layers while maintaining precise independent control over thermal conditions at each station.

Key Features

Superior Production Capacity: Four-layer independent workstation design enables continuous parallel processing, eliminating idle waiting periods inherent to conventional single-layer configurations.
Advanced Thermal Control: Thermal fluid circulation technology ensures exceptional temperature uniformity and stability across all four heat transfer plates.
Integrated Safety Systems: Independent overheat protection circuitry, emergency brake controls, and multiple hydraulic protection mechanisms.
Wide Application Versatility: Suitable for hotel doors, garage doors, carriage doors, and elevator door panels.
Easy Maintenance: Modular design facilitates straightforward disassembly and repair with comprehensive technical support.

Technical Specifications

Maximum Pressure	160 T
System Pressure	20 MPa
Work Platen Size	4000 × 1500 × 50 mm
Maximum Platen Opening	120 mm × 4-layer
Maximum Temperature	100℃
Working Level	4-layer
Oil Cylinder Specification	110 mm × 80 mm × 8 pcs
Hydraulic Pump Power	7.5 kW
Hot Oil Pump Power	3 kW
Heating Pipe Power	54 kW
Overall Dimensions	55000 × 2300 × 2800 mm
Weight (Approximate)	20000 kg

Company Advantages

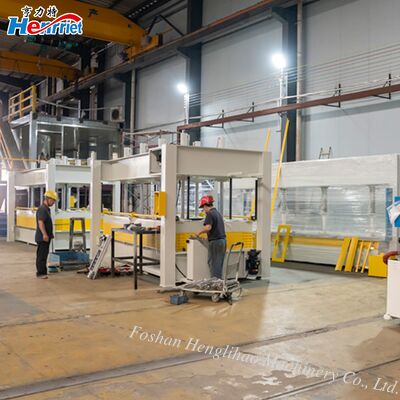

Direct Manufacturing: Two in-house factories ensure better prices and faster delivery with no middlemen markups.
Custom Engineering: 30+ senior engineers design machines around your specific production needs, floor space, and budget.
Global Certification: CE & ISO 9001 certified, compliant with international electrical, mechanical, and safety regulations.
Proven Experience: Equipment shipped to 50+ countries with 1000+ custom designs, engineered for long-term heavy-duty use.
