160t Pressure Double-Sided Automatic Conveying Large Heavy-Duty Hydraulic Cold Press Machine for Raw Wood and Aluminum Alloy Doors

160t Pressure Double-Sided Automatic Conveying Large Heavy-Duty Hydraulic Cold Press Machine for Raw Wood and Aluminum Alloy Doors

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Maximum Pressure:

17.5MPA

Pressure Plate Size:

3300*1800mm

Maximum Processing Length:

3600mm

Maximum Processing Width:

2200mm

Maximum Processing thickness:

800mm

Lower Workbench Height:

300mm

Oil Cylinder Specifications:

6pcs(70mm*100mm)

Power:

5.5kw

Overall Dimensions:

3850X5600X4750mm

Maximum Opening Distance:

1800mm

Hydraulic Cylinder Specifications:

6pcs（140*100*1800mm）

Specification Of Track Oil Cylinder:

10pcs （80X30mm）

Weight (approximately):

9200KG

Packaging Details:

Film with Foam

Product Description

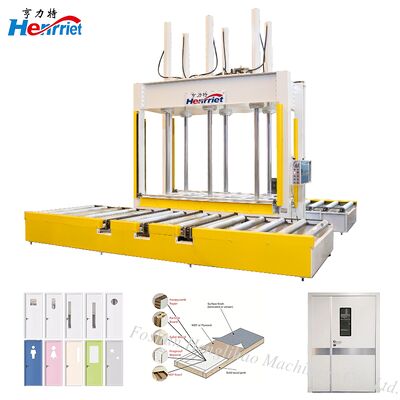

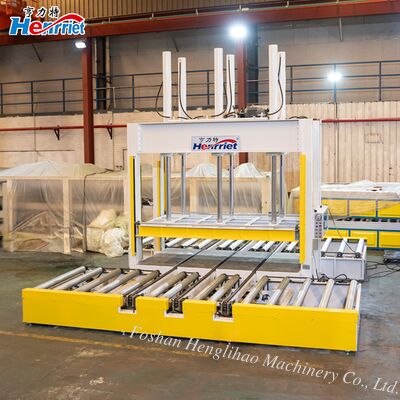

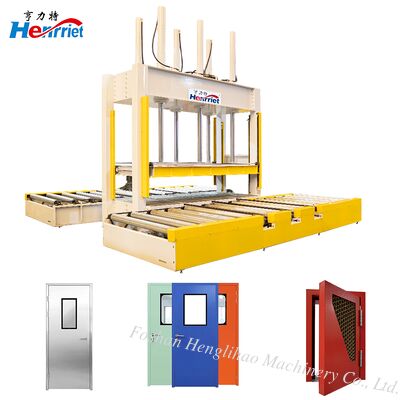

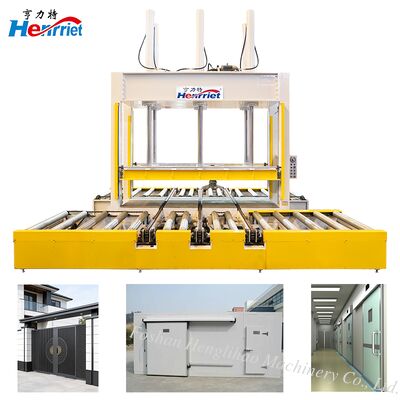

160t Pressure Double-Sided Automatic Conveying Large Heavy-Duty Hydraulic Cold Press Machine

Product Overview

This high-performance cold press is purpose-designed for contemporary sheet metal pressing operations. The machine integrates a dual-cylinder linked hydraulic system that delivers superior pressure distribution uniformity and accelerated pressing cycles compared to conventional single-cylinder configurations. The innovative roller-equipped conveyor worktable resolves operational bottlenecks of difficult material loading and sluggish discharge that have historically challenged traditional cold press equipment.

With this intelligent design, operators can glide panels effortlessly into position. The roller platform enables rapid entry to the pressing station while minimizing physical effort, achieving a continuous and fluid "slide-to-press, release-to-discharge" production flow. The machine frame is fabricated from high-strength H-beam steel sections through precision welding, delivering exceptional structural rigidity, wear resistance, and long-term dimensional stability.

Key Features

Superior Production Capacity: Integrated roller worktable simplifies loading procedures and ensures smooth panel discharge, eliminating dependency on forklifts or multi-person handling. Single operator can independently complete both loading and unloading operations, substantially boosting daily production throughput.
Integrated Safety and Protection: Comprehensive safety architecture including emergency stop controls and over-travel automatic protection systems. Electrical control system features critical protective components including automatic circuit breakers, fuses, and AC contactors.
Wide-Ranging Application Versatility: Accommodates various panel types including traditional solid wood composite doors, modern prefinished door units, medical facility door assemblies, aluminum door configurations, Pickleball paddle components, multi-layer composite panels, acoustic absorption boards, and laminated assemblies.
Easy Maintenance and Technical Support: Clearly visible pressure gauges and fluid level indicators for real-time operational status monitoring. All moving components equipped with strategically positioned lubrication points for smooth, uninterrupted operation.

Technical Specifications

Specification	Value
Maximum Pressure	160 T
Pressure Plate Size	3300 × 1800mm
Maximum Opening Distance	1800mm
Hydraulic Cylinder Specifications	6 pcs (140 × 100 × 1800mm)
Specification of Track Oil Cylinder	10 pcs (80 × 30mm)
Power	5.5kw
Maximum Pressure	17.5 MPA
Overall Dimensions	3850 × 5600 × 4750mm
Weight (approximately)	9200 KG

Competitive Advantages

Direct Manufacturing: Two in-house factories ensure better prices and faster delivery with no middlemen markups.
Custom Engineering: 30+ senior engineers design machines around your actual production needs, floor space, and budget.
Global Certification: CE & ISO 9001 certified, meeting international electrical, mechanical, and safety regulations.
Proven Experience: Over 50 countries served with 1000+ custom designs, engineered for long-term, heavy-duty use.
