30 Tons Pressure 12 Meter Length 16 Cylinder Two-Stage Cold Press Machine for PVC Engineered Wood Doors

30 Tons Pressure 12 Meter Length 16 Cylinder Two-Stage Cold Press Machine for PVC Engineered Wood Doors

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Maximum pressure:

30 Tons/section (customizable)

Activity table size:

6000mm * 1800mm X2 Block

Base dimensions:

12000mm*1800mm*1300mm

Pressure plate opening distance:

1300mm

Oil cylinder specifications:

16pcs （70mm*100mm）

Power:

7.5KW

Overall dimensions:

12800mm*1800mm*3700mm（customizable）

Packaging Details:

Film with Foam

Product Description

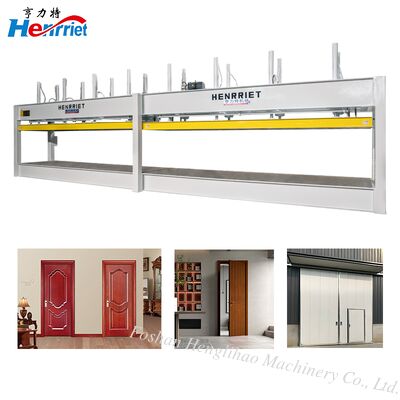

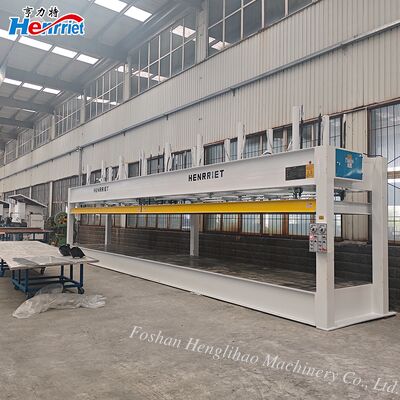

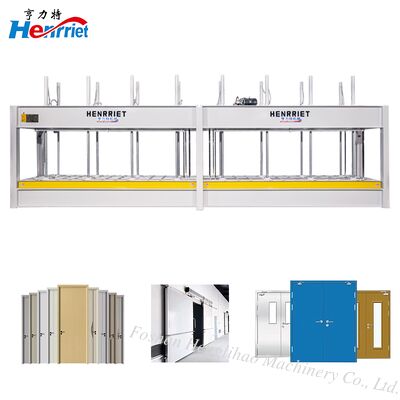

30t 12 meter 16 cylinder customized ultra long two-stage cold press machine for PVC unpainted engineered wood door

Product Description

The 12-meter 16-cylinder cold press represents a significant advancement in large-format pressing technology, combining synchronized multi-cylinder drive capability with an extended work surface to address the demanding requirements of oversized panel and door production. This specialized equipment is purpose-engineered for manufacturing applications including wooden doors, medical facility doors, aluminum door assemblies, prefinished units, stainless steel door components, and plywood panels—precisely resolving the persistent industrial challenges of uneven force distribution, inconsistent forming quality, and insufficient processing capacity that have long affected extended-length and large-format panel manufacturing. The equipment serves as essential enabling technology for high-volume production facilities handling oversized panel and door assemblies.

Key Features

Superior Production Capacity: Balanced synchronous pressure application design delivers precise, controllable pressure output with uniform force distribution across the entire extended work surface. This engineering approach fundamentally resolves deformation issues, weak adhesion problems, and surface irregularities commonly encountered when conventional presses process extra-long door panels.
Integrated Safety and Protection: The extended work surface enables complete one-step pressing of oversized panels and door assemblies, eliminating the need for segmented processing that introduces alignment and consistency challenges.
Wide-Ranging Application Versatility: Custom PVC prefinished door processing and solid wood composite door manufacturing with multi-layer structural cold pressing consolidation capabilities.
Easy Maintenance and Technical Support: Core components feature modular design architecture, simplifying disassembly and repair procedures. The extended work surface facilitates sectional maintenance access.

Technical Specifications

Maximum Pressure	30 tons/section (customizable)
Activity Table Size	6000mm * 1800mm * 2 blocks
Base Dimensions	12000mm * 1800mm * 1300mm
Pressure Plate Opening Distance	1300mm
Oil Cylinder Specifications	16 pieces (70mm * 100mm)
Power	7.5KW
Overall Dimensions	12800mm * 1800mm * 3700mm (customizable)

Corporate Advantages

Two In-House Factories: Better prices and faster delivery with no middlemen or markups
Expert Engineering Team: More than 30 senior engineers providing custom-built solutions
Quality Certified: CE & ISO 9001 certified, globally compliant with international standards
Proven Experience: Over 50 countries served with 1000+ projects completed
