Description

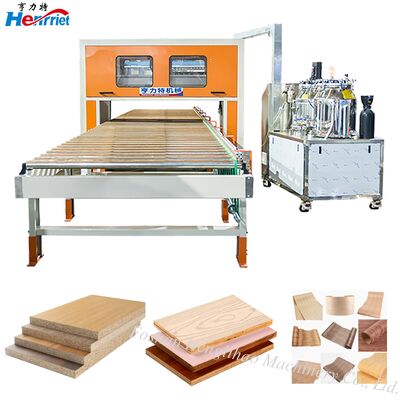

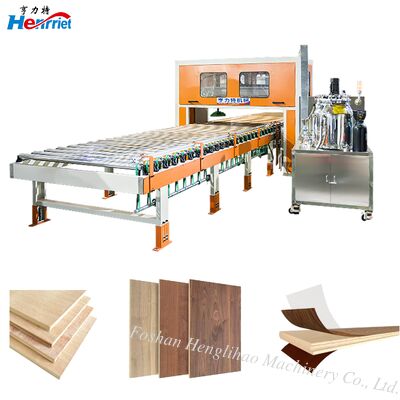

This specialized automated glue application system revolutionizes adhesive processing for compact wood-based substrates, merging precision engineering with intuitive automation. Its architecture integrates a calibrated adhesive delivery network, a dynamic mixing chamber, a precision conveyor pathway, and an intuitive control interface. Utilizing advanced metering pumps and real-time blending technology, the system precisely combines two-part adhesives—such as polyurethane or epoxy resins—at user-defined ratios, then uniformly applies the mixture via a linear nozzle array across the board surface. A calibrated scraper mechanism detects board edges automatically, dynamically adjusting glue coverage width without manual input. The entire unit adopts a space-efficient, modular footprint designed for seamless integration into compact workshops, featuring a PLC-powered touchscreen interface for effortless parameter customization—glue volume, application speed, and motion range—all set with a single tap.
Feature
1,Superior production capacity
By replacing labor-intensive manual gluing with seamless automation, this system delivers transformative productivity gains. The linear nozzle array coats entire board surfaces in a single pass, while the synchronized reciprocating mechanism allows one operator to manage workloads previously requiring multiple personnel. For standard substrates, continuous high-speed operation achieves output levels far exceeding manual methods—processing hundreds of panels daily with consistent quality. Integrated self-cleaning protocols eliminate downtime during adhesive transitions: a single command initiates pipeline flushing and system sterilization, preventing resin solidification. The adhesive reservoir includes a thermal buffer to maintain viscosity during extended runs, ensuring uninterrupted production. For mixed-batch operations, rapid parameter switching accommodates diverse board dimensions and adhesive types without compromise, while scalable integration with downstream assembly lines enables end-to-end production flow.
2,Integrated Safety and Protection
Designed for small-scale workshop safety, the system embeds proactive safeguards:
Instant halting: Emergency stop triggers immediate system shutdown, halting all motion and adhesive flow.
Zero-drip technology: Automatic valve closure prevents adhesive leakage during transitions, safeguarding work surfaces and substrates.
Contamination prevention: Enclosed adhesive pathways and sealed nozzles eliminate airborne particulates and cross-contamination risks.
3,Wide-Ranging Application Versatility
This system excels in high-value applications:
Natural veneer bonding: Achieves flawless adhesion of solid wood or engineered veneers to substrates, preserving intricate grain patterns for bespoke furniture and architectural millwork.
Thin wood lamination: Precisely controls adhesive thickness for natural veneer applications, ensuring bubble-free bonding that highlights organic wood textures.
Core board processing: Uniformly applies adhesive to large particleboard substrates, enabling seamless layer bonding for high-strength applications like architectural templates and premium furniture cores.
4,Easy maintenance and technical support
Long-term reliability hinges on disciplined care:
Pre-use verification: Confirm pipeline integrity, adhesive levels, and conveyor roller cleanliness to prevent application inconsistencies.
Post-operation protocol: Initiate automatic cleaning cycles immediately after use to flush residual adhesive and prevent clogging.
System calibration: Regularly validate adhesive ratios and nozzle alignment to maintain coating uniformity.
Specification
| Gel Dripping Width | 200-1300mm (customizable) |
| Coating Speed | 1-12 meters/minute (adjustable) |
| Gel Dripping Length | 300mm-4500mm (customizable) |
| Product Width | 200mm-1300mm (customizable) |
| Ratio Adjustment | The mixing ratio can be adjusted between 2:1-5:1 |
| Environmental Requirements | Temperature 5-45 ℃, humidity ≤ 80% |
| Effective Volume of AB Tanks | 40L (automatic feeding) |
| Glue Consumption per Square Meter | Adjustable from 200g to 450g |
| Conveyor Line | Width 1300mm, height 850mm ± 50mm, length customizable |
| Temperature Adjustment Range of Material A Tank | Adjustable from 20-30 ℃ |
| Adhesive Viscosity | 4000-12000 CPS (customizable) |
| Power | 5.75kw |
| Control Method | PLC programming+touch screen |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
