Description

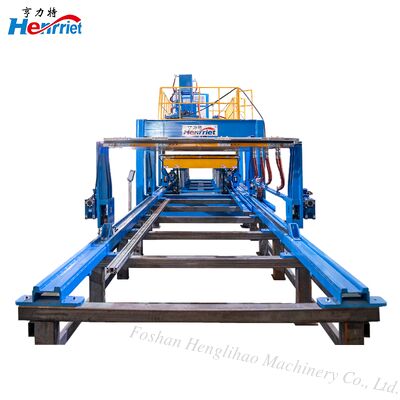

The dual station activity slide table hot press is a combined production unit that deeply integrates the hot press host with the dual station slide table conveyor system. Its core structure consists of a hot press body, a dual station activity slide table, a hydraulic lifting system, a conveyor device, and an electrical control system. The equipment adopts a unique dual work platform design, and the workbench includes a first material preparation area, a second material preparation area, and a pressing work area. Two movable sliding tables can alternately slide between the material preparation area and the pressing work area, achieving a continuous operation mode of "one material preparation, one pressing". When one workstation is performing hot pressing operations, the operator can synchronously prepare for loading and unloading at another workstation. After the pressing is completed, the slide table automatically switches positions, eliminating the waiting time of traditional single workstation equipment.
Feature
1,Superior production capacity
The core advantage of the dual station activity slide hot press in terms of production capacity lies in its continuous cycle production mode of "dual station alternating operation", where the activity slide moves smoothly back and forth and the station switching time is short. In conjunction with the automatic conveyor frame, the entire process of sheet feeding, positioning, hot pressing, and output is automated, with tight process connections and significantly shortened production cycles.
2,Integrated Safety and Protection
The dual station activity slide hot press is equipped with multiple active protection mechanisms to address the dual risk characteristics of high temperature, high pressure, and dual station alternating operation. Ensure the personal safety of operators and the stable operation of equipment. Regardless of whether the equipment is in any state of slide table movement, pressure plate lifting, or sheet conveying, pressing any emergency stop button can instantly cut off the power supply, hydraulic main oil circuit, and heating system power supply of the entire machine. The slide table immediately locks and stops moving, and the pressure plate is fixed by a bidirectional hydraulic lock. The conveyor line locks and stops, quickly terminating all actions. Each layer of the hot pressing host is equipped with electronic sensing limit and mechanical hard limit. When the machine runs beyond the limit, it will immediately stop and warn and physically lock; High precision electronic limit and mechanical anti-collision blocks are installed at both ends of the dual activity slide table to avoid overtravel collisions of the slide table; The conveyor line is equipped with overtravel limit and anti deviation protection.
3,Wide-Ranging Application Versatility
The dual station activity slide hot press machine has a wide range of applications in the field of insulation board and special composite board processing due to its efficient alternating operation mode, uniform heating performance, and precise pressure control. In terms of the manufacturing of refrigerated compartment panels, the equipment is suitable for the compression molding of the compartment panels of refrigerated vehicles, insulated vehicles, and fresh-keeping vehicles. Through uniform heating and high-pressure action, the FRP skin, polyurethane foam core materials and reinforced embedded parts are firmly bonded. The panels made have the characteristics of light weight, high strength, good heat insulation performance, corrosion resistance, etc. In the field of cold storage panel production, equipment can be used for composite lamination of cold storage insulation boards, meeting the stringent requirements of cold chain logistics for insulation performance. In the field of overall bathroom foam board manufacturing, equipment can be used for polyurethane foam molding of overall bathroom chassis and wall panels, improving the overall performance of bathroom products.
4,Easy maintenance and technical support
Scientific maintenance is the key to ensuring long-term stable operation and extending the service life of equipment. Before starting up, it is necessary to clean the double station slide track, rollers, and hot pressing plate surface of debris and adhesive residue to avoid affecting the smoothness of sliding and heat transfer efficiency; Check if the sliding table switch is flexible and smooth, and if there are no foreign objects stuck on the track surface. Clean and apply specialized lubricating grease to mechanical components such as guide rails, chains, and bearings to reduce frictional resistance and extend their service life. Hydraulic system maintenance requires keeping the hydraulic oil clean.
Specification
| Maximum pressure | Push down and up |
| Workbench dimensions | 250 T |
| Mobile carrier template size | 4560mmX2160mm*1 pcs |
| Actual composite size | 4560mm*2160mm*2pcs |
| Plate thickness | 4360mm*2060mm |
| Number of layers |
Fixed workbench: 50mm x 1 piece Mobile loading template: 70mm x 2 pieces |
| Spacing | 1-layer |
| Heating cycle motor power | 100mm |
| Motor power of hydraulic system | 3kw |
| Oil cylinder specification | 7.5kw |
| Heating system power | 8pcs*150mm |
| Power for entering and exiting the movable sliding platform |
72KW |
| Cooling method | 2.2KW*4pcs |
| Control system | 6-power refrigeration unit |
| Maximum temperature | PLC+touch screen |
| Total power | 80℃ |
| Height of the movable workbench above the ground |
73.3KW |
| Maximum pressure | 940mm |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
