| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |
Description

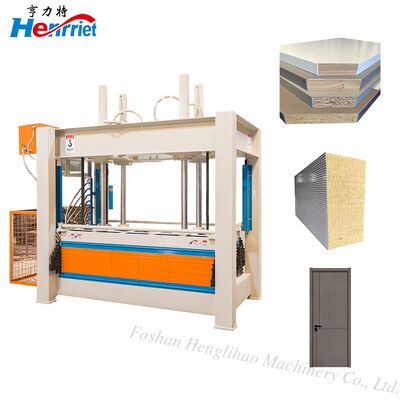

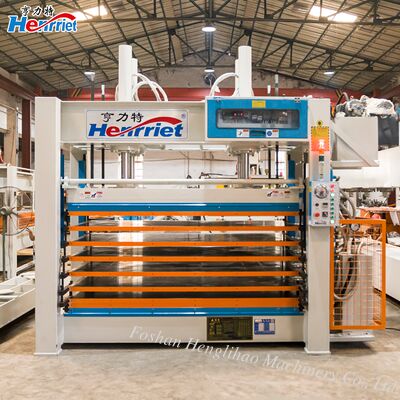

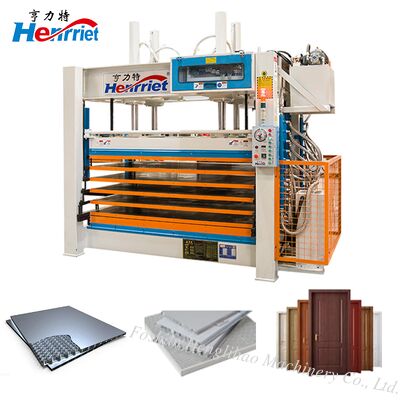

The equipment adopts an eight layer stacked three-dimensional structure, with eight independent heating working layers, which can simultaneously process eight layers of large panel materials, achieving a geometric level increase in production capacity under the same equipment footprint. The hot press plate is made of high-quality carbon solid steel plate processed by deep hole drilling technology, with high precision, high strength, durability, fast heating speed, uniform thermal conductivity, and low thermal energy consumption. The heating system is carefully segmented, with low energy consumption, uniform thermal conductivity, and adjustable temperature; The main hydraulic components of the hydraulic system are imported parts with adjustable pressure; The oil cylinder is made by precision CNC machining and adopts imported oil seals, with no oil leakage phenomenon. The fuselage adopts a high-strength steel plate welded structure, which has undergone strict vibration aging treatment, stable and firm, with minimal deformation, ensuring that the fuselage does not deform or fatigue under long-term high temperature and high pressure conditions.
Feature
1,Superior production capacity
The intelligent temperature control system accurately controls the temperature, and the high-temperature resistant pressure plate can achieve rapid curing of the glue under high temperature and pressure. The board can be shaped in just a few minutes, which shortens the curing time compared to traditional equipment; Automated assembly line operation design further compresses the entire production cycle and improves order delivery efficiency. One click eight layer automatic synchronous hot pressing, eight layer independent hot pressing station design, with the same floor area and energy consumption, the production capacity increases linearly.
2,Integrated Safety and Protection
All safety related control signals, such as emergency stop buttons and safety door switches, are processed through independent and certified safety relay modules, ensuring the highest reliability level of the safety control circuit. Red mushroom head emergency stop buttons that comply with international standards are installed at key positions on the operation panel and equipment. Operators can press the button at any time to cut off all power sources and immediately stop the equipment in its current state. Infrared grating protection, as an active safety technology, forms an invisible photoelectric protection network in the working area of the equipment. When personnel approach the equipment during startup, it automatically stops, maximizing the protection of personnel and mechanical equipment safety.
3,Wide-Ranging Application Versatility
The eight layer hot press machine, with its efficient eight layer design, uniform heating performance, and precise pressure control, has a wide range of applications in wood processing, artificial board manufacturing, metal composite panels, and new building materials. In the field of basic processing of artificial boards, the equipment is suitable for large-scale hot pressing production of plywood and particleboard. It can press eight layers of board at once, with uniform pressure to ensure firm bonding of the board layers and small thickness tolerance. It can be used to press various decorative materials such as decorative cloth, stickers, wood veneer, PVC, etc. on the surface of various artificial boards such as plywood, particleboard, medium fiber board, and particleboard.
4,Easy maintenance and technical support
Scientific and standardized maintenance and upkeep of the hot pressing system, hydraulic system, and electrical control system are crucial to ensure the stability and compression accuracy of the eight layer hot press machine under long-term high-temperature and high-pressure operation; Professional calibration of the flatness and parallelism of the eight layer laminated board, and precise adjustment of the synchronization of the lifting and lowering of the multi cylinder oil cylinder; Conduct comprehensive performance verification and calibration of all safety protection devices.
Specification
|
Maximum pressure |
50 T |
| Work platen size | 2500*1300*42mm |
| Systm pressure | 20 MPa |
| Max.platen opening | 100mm |
| Maximum temperature | 80℃ |
| Working level | 8-layer |
| Oil cylinder specification | 110mm*80mm * 4pcs |
| Hydraulic pump power | 4kw |
| Hot oil pump power | 2.2kw |
| Heating pipe power | 54kw |
| Overall dimensions | 3800*2100*3300mm |
| Weight (about) | 14000kg |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
