| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |
Description

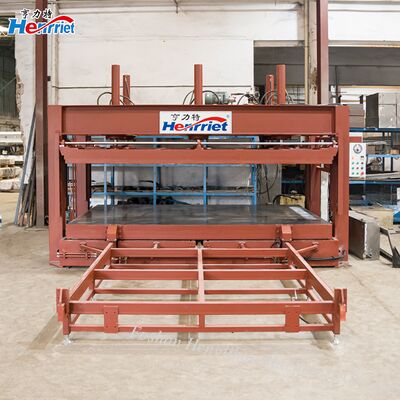

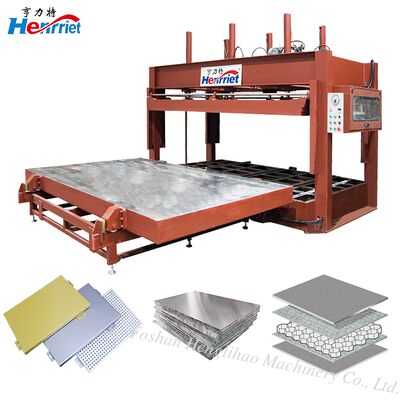

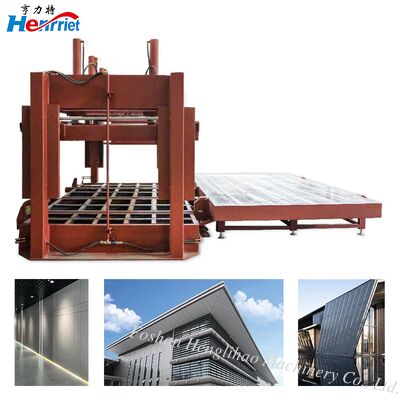

The slide table cold press represents a specialized category of hydraulic pressing equipment engineered specifically to address the unique handling challenges associated with large-format metal composite panels. Its core architecture integrates a high-capacity hydraulic system, heavy-duty welded frame, precision-machined pressing platen, intelligent electrical control network, and the defining feature—an innovative sliding or roller-equipped worktable. This distinctive design allows the work surface to traverse forward and backward in response to operational requirements, enabling operators to perform material layout and positioning of oversized sheets—including aluminum honeycomb panels and aluminum-plastic composites—in an ergonomic ground-level position before automated press entry.
Feature
1,Superior production capacity
The fundamental production advantage of the slide table cold press resides in its ability to dramatically reduce non-productive handling time associated with large-format material loading and unloading. Traditional cold press configurations require operators to maneuver oversized aluminum or honeycomb panels within the confined interior space of the machine—a physically demanding process characterized by restricted visibility, awkward positioning, and inherently low throughput efficiency. This conventional approach creates significant bottlenecks in high-volume production environments where rapid material cycling is essential.
With the slide table design, the work surface extends outward to provide operators with unobstructed access in a spacious, well-lit area. Material assembly and precise positioning occur in this optimized ergonomic zone, after which the operator initiates automated table retraction and pressing cycles. For continuous production runs of large-format panels such as aluminum honeycomb structures and corrugated composites, this workflow transformation eliminates substantial loading and unloading time from each cycle, resulting in significantly enhanced daily output capacity while reducing operator fatigue and material handling risks.
2,Integrated Safety and Protection
The hydraulic system integrates a comprehensive safety architecture featuring an automatic pressure relief mechanism via an overflow valve, a bidirectional hydraulic locking assembly, thermal protection against oil overheating, and a low-fluid-level alert system. In the event of abrupt power or pneumatic supply failures, the pressure plate instantly engages a secure lock to eliminate risks of fluid leakage, excessive loading, or unintended descent. Operators can activate an emergency stop button to immediately sever power transmission, halting all hazardous movements without delay. Furthermore, a dual-layer over-travel protection system ensures safety through the synchronized operation of travel limit switches and upper-limit pressure sensors. Limit guards are strategically installed on both the upper and lower sections of the movable beam; should the piston reach any extreme boundary, the system automatically cuts off energy supply and ceases operation, thereby preventing mechanical damage and ensuring long-term equipment integrity.
3,Wide-Ranging Application Versatility
Precision Application Engineering – Comprehensive Coverage of Metal Building Panel Production
This automatic slide table cold press is purpose-engineered for metal architectural panels including aluminum honeycomb structures, corrugated composites, aluminum-plastic sheets, fire-resistant aluminum honeycomb panels, and corrugated aluminum profiles. Combining the advantages of heavy-duty sliding table material handling, high-precision uniform pressure distribution, and stable operational characteristics, it serves as benchmark equipment for metal composite panel processing across construction and architectural finishing industries.
Building Curtain Wall Engineering Applications
The system demonstrates exceptional capability in producing aluminum honeycomb panels for exterior cladding, fire-resistant honeycomb assemblies, corrugated aluminum elements, and large-format curtain wall composites through precision compression bonding. Custom-configurable ultra-large slide table variants accommodate oversized panel formats while maintaining uniform pressure distribution that protects delicate honeycomb core structures from damage. This precision ensures consistent composite strength, superior surface flatness, and enhanced weather resistance—meeting the rigorous national standards and volume requirements of landmark high-rise developments, commercial complexes, municipal facilities, and transportation hub curtain wall installations.
Interior Architectural Finishing Applications
For interior environments, the press excels in processing aluminum-plastic composites, corrugated decorative panels, ceiling-specific aluminum honeycomb elements, feature wall metal composites, and curved decorative corrugated aluminum profiles. The scratch-resistant platen surface design provides essential protection for high-gloss finishes, anodized surfaces, and fluorocarbon coating applications, ensuring finished products emerge free from surface imperfections. This capability makes the equipment particularly valuable for premium hotel installations, corporate office developments, commercial retail spaces, and luxury residential interior projects where aesthetic perfection is paramount.
4,Streamlined Maintenance and Service Support
Mechanical system longevity requires consistent attention to transmission component lubrication. All rotating elements and pivot points benefit from regular application of lithium-based grease, with particular attention to guide columns and bushings where smooth operation directly influences pressing accuracy and surface quality. This preventive maintenance significantly reduces component wear and ensures continued operational smoothness throughout the equipment's service life.
Specification
|
Maximum pressure |
60t |
| Pressure plate size | 3600mm*2200mm |
| Maximum processing length | 3600mm |
| Maximum processing width | 2200mm |
| Maximum processing thickness |
800mm |
| Lower workbench height | 300mm |
| Oil cylinder specifications | 6pcs(70mm*100mm) |
| Power | 5.5KW |
| Overall dimensions | 4100mm*2500mm*2900mm |
Advantage
1,Two In-House Factories = Better Prices, Faster Delivery
We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.
2,More than 30 senior engineers, Custom-Built for You
Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.
3,CE & ISO 9001 Certified, Global-Ready
Every machine meets EU CE safety standards and ISO 9001 quality requirements. That means full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.
4,More than 50 countries, 1000+ Projects, Experienced in design and manufacturing
We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
