380V / 50Hz Automatic Cold Press Machine 6 Cylinders Hydraulic Wood Press Machine

Brand Name:	Henrriet
Model Number:	HLY-50T
MOQ:	1
Price:	Online/offline communication
Payment Terms:	MoneyGram,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

Automatic Cold Press Machine

Work Plate Size:

4000*2000mm

Max Pressure:

50T

Slide Stroke:

1000mm/1300mm/1500mm

Power:

5.5KW

Oil Cylinder Size:

100mm*6pcs

Warranty:

1 Year

Weight:

6000KG

Packaging Details:

Film with Foam

Highlight:

380V Automatic Cold Press Machine

50Hz Automatic Cold Press Machine

multi-layer veneer press machine

Product Description

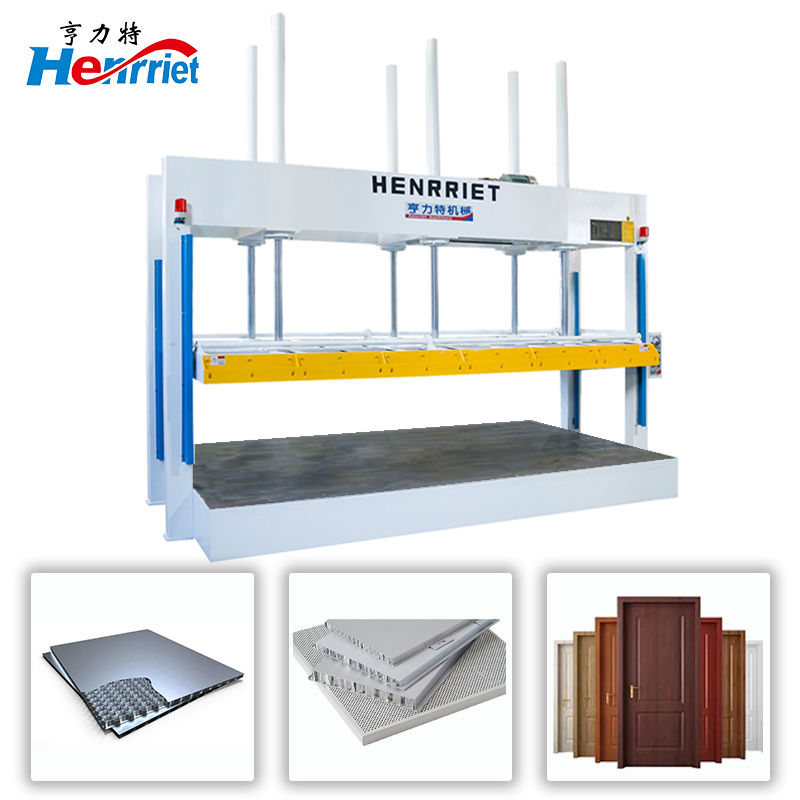

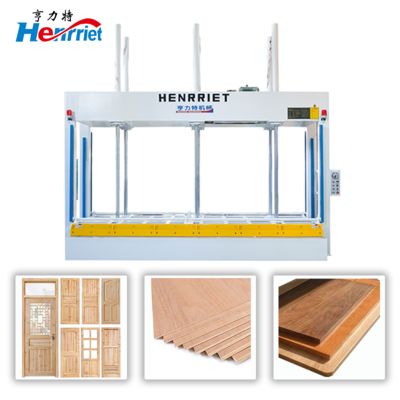

6 Oil Cylinders Multi-layer Solid Wood Composite Flooring Automatic Cold Press Machine Veneer

Product Description:

Engineered for exceptional stability, efficiency, and large-scale industrial production, the dual-side six-cylinder hydraulic cold press sets a new benchmark in precision pressing technology. Its synchronized six-cylinder drive system ensures uniform pressure distribution across the entire workpiece surface, making it an ideal solution for enterprises seeking superior output quality, high throughput, and operational reliability in complex lamination and forming applications.

Enhanced Production Capability

The press incorporates a six-cylinder synchronous drive mechanism that delivers consistent and stable pressure, capable of adapting to custom force requirements. With precision exceeding international standards, the system ensures flawless bonding and forming—eliminating risks of warping, delamination, or surface inconsistency, even when processing oversized or thick materials .

Featuring optimized platen movement speeds and fully adjustable dwell time settings, the machine accommodates a wide range of process parameters. This allows for the completion of high-precision pressing tasks rapidly, supporting both high-volume runs and specialized custom orders .

Integrated Safety and Protection

The press is equipped with multi-layered hydraulic safety controls, including automatic overpressure protection and oil circuit cut-off mechanisms. These features prevent motor overload, cylinder strain, and system failures during extended high-load operations

Wide-Ranging Application Versatility

The machine excels in laminating large-format exterior wall insulation panels, aluminum honeycomb composites, and other engineered building materials, delivering uniform surface quality and structural integrity .

It is equally capable in pressing extra-large solid wood doors, multi-layer plywood, and customized furniture panels, providing high dimensional accuracy and bond strength for diverse wood-based products .

Streamlined Maintenance and Service Support

The fully sealed hydraulic system, constructed with high-quality leak-resistant components, requires only periodic oil changes, reducing both maintenance frequency and long-term operational costs .

Routine upkeep—such as filter cleaning and lubrication of transmission parts—is simplified for minimal downtime. Combined with remote diagnostic support and responsive service, the press maintains high availability and prolonged service life .

Machine Specifications

Maximum Pressure	50 T (customizable)
Worktable Sizes	4000mm × 2000mm (customizable)
Maximum Processing Thickness	1000mm, 1300mm, 1500mm (customizable)
Power Supply	380V/50Hz, three-phase
Power	5.5kW (customizable)
Dwell Time	0-99.99 hours (Adjustable)
Platen Lift Speed	10-12mm/s
Pressure Accuracy	±1% (ISO-compliant)
Size	4500mm × 2000mm ×3700mm
Weight	6000KG

Service Support

Warranty: 1 year
Packaging: Film with foam.
24-hour customer service hotline, respond to repair needs within 48 hours.
Free video training for operators and provision of process guidance manuals.
Lifetime technical support and software upgrade services.
