8 Oil Cylinders Hydraulic Press Machines Large Sized Plywood Press Machines 50Hz

Brand Name:	Henrriet
Model Number:	HLY-50T
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

Hydraulic Press Machines

Max Pressuer:

50T

Work Platen Size:

8000*2000mm

Oil Cylinder Specification:

100mm * 8pcs

Motor Power:

5.5kw

Workd Effctively:

1000mm /1300mm / 1500mm / Customizable

Overall Dimensions （Standard Model）:

8600*3000*3250mm

Weight (Standard Model-about):

10000kg

Packaging Details:

Film with Foam

Highlight:

8 Oil Cylinders Hydraulic Press Machines

Large Sized Plywood Press Machines

Plywood Press Machines 50Hz

Product Description

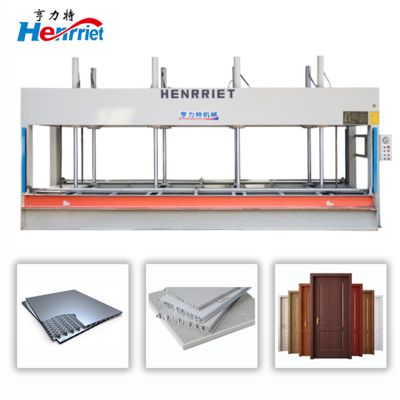

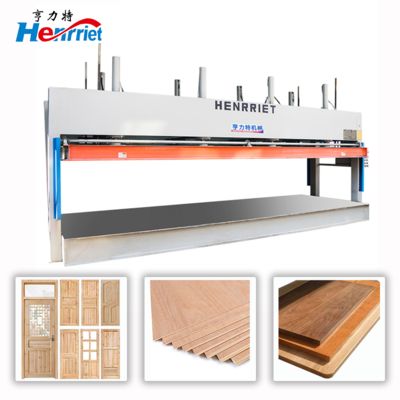

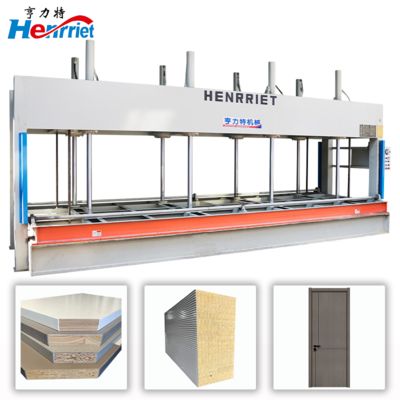

8 Oil Cylinders Hydraulic Cold Press Machine Large-sized Door Panel Aluminum Honeycomb Board Plywood Composite Board Shaping

Product Description:

The eight-cylinder hydraulic cold press integrating a synchronized multi-cylinder hydraulic system to deliver exceptional precision and force distribution. This machine serves a broad range of manufacturing sectors, including furniture production, wooden door fabrication, sheet metal forming, and industrial lamination processes. Its design emphasizes remarkable pressure stability, user-friendly operation, high processing capacity, and adaptability to workpieces of various sizes and material compositions.

Key Features & Performance Advantages

The pressing platens undergo precision grinding and polishing, achieving an ultra-smooth contact surface. This meticulous finish is crucial for working with delicate materials like thin veneers or composite laminates, effectively preventing impressions or scratches and ensuring a consistently high-quality finish on every processed panel.

Central to the machine's performance is its eight-cylinder hydraulic system, which operates on synchronized fluid power transmission. This sophisticated configuration ensures uniform force distribution across the entire platen area, overcoming the pressure inconsistencies often found in conventional presses. The system maintains tight operational tolerances, promoting even adhesive curing and eliminating weak spots—a critical factor for achieving high-strength, warp-free laminated products.

Rapid Operation Integrated with Intelligent Control

High-performance hydraulic actuators enable swift platen movement during both the loading and pressing stages, significantly reducing cycle times while maintaining process stability. This is complemented by a fully programmable control system, allowing operators to precisely adjust parameters such as dwell time to suit various adhesive types and material properties. This flexibility makes the machine equally effective for both fast-setting and extended-cure processes.

Integrated Safety & Protection Systems

Safety is a fundamental aspect of the machine's design, not an afterthought. An intelligent overpressure monitoring system automatically interrupts the hydraulic flow if safe operating limits are approached, safeguarding the motor and pump from potential damage due to overload. The system also incorporates a hydraulic relief valve to prevent pressure surges. The electrical control cabinet is equipped with comprehensive protection features, including overload relays and short-circuit prevention. A prominently installed emergency stop button on the operator panel enables immediate shutdown if required, aligning with recognized industrial safety specifications.

Versatile Application Range

This hydraulic press is engineered for flexibility, capable of handling a diverse array of materials—from wood-based composites and solid timber to metal sheets and specialized industrial laminates. Its adjustable pressing parameters and platen configurations allow manufacturers to seamlessly switch between high-volume production runs and specialized, small-batch orders, making it a highly adaptable solution for dynamic production environments.

Simplified Maintenance for Enhanced Uptime

The hydraulic power unit is designed as a fully sealed system, providing effective protection against external contamination and minimizing leakage risks. This robust design contributes to extended service intervals; under standard operating conditions, the hydraulic fluid requires replacement only on an annual basis. Routine maintenance tasks are streamlined, and the inclusion of diagnostic alerts facilitates quick identification of potential issues, collectively reducing unplanned downtime and ensuring operational reliability.

Machine parameters

Maximum Pressure	50 T (customizable)
Worktable Sizes	8000mm*2000mm (customizable)
Maximum Processing Thickness	1000mm, 1300mm, 1500mm
Power supply	380V/50Hz, three-phase
Power	5.5kW (customizable)
Dwell time	0-99.99 hours (Adjustable)
Platen lift speed	10-12mm/s
Pressure accuracy	±1% (ISO-compliant)
Size	8500mm × 2500mm × 2550mm
Weight	10000KG

Service Support

Warranty: 1 year

Packaging: Film with foam

24-hour customer service hotline, respond to repair needs within 48 hours.

Free video training for operators and provision of process guidance manuals.

Lifetime technical support and software upgrade services.
