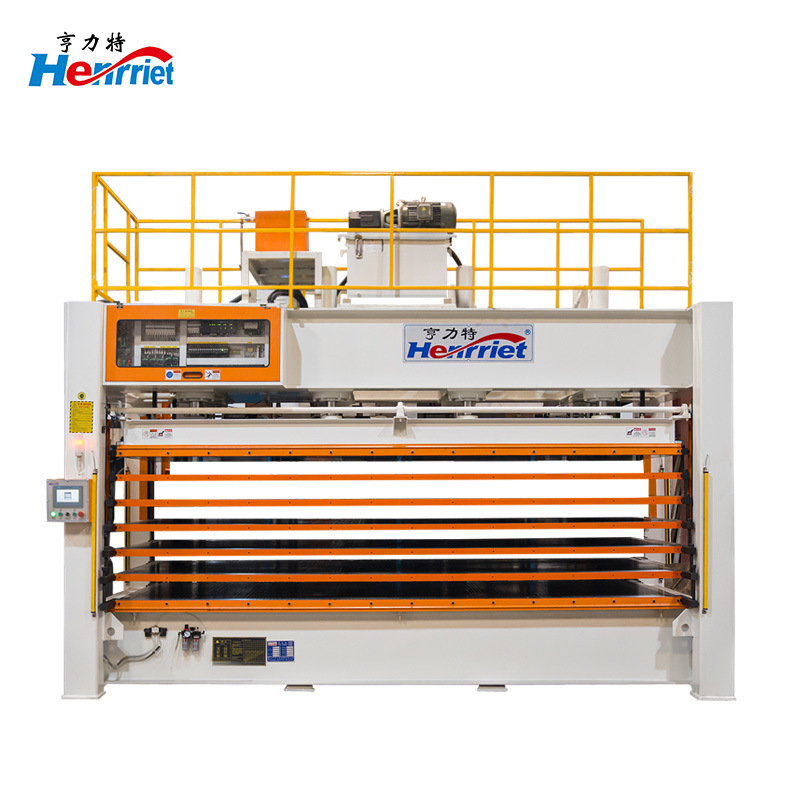

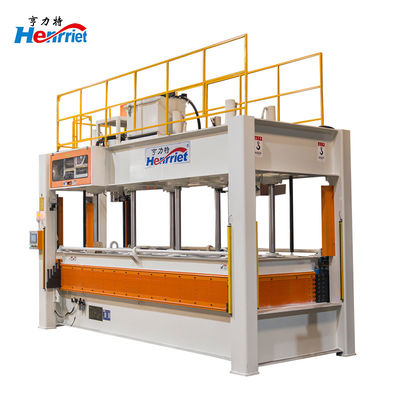

Multi Layer Wood Bending Press Machine 120T PU Press Machine

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

Wood Bending Press Machine

Max Pressuer:

120T

Work Platen Size:

2500*1300*42mm

Systm Pressure:

20mpa

Max.platen Opening:

100mm

Working Level:

7 Layer

Maximum Temperature:

70℃

Oil Cylinder Specification:

110mm*80mm * 6pcs

Hydraulic Pump Power:

5.5kw

Hot Oil Pump Power:

2.2kw

Heating Pipe Power:

54kw

Overall Dimensions:

3800*2100*3800mm

Weight (about):

14000kg

Packaging Details:

Film with Foam

Highlight:

Multi Layer Wood Bending Press Machine

Wood Bending Press Machine 120T

120T PU Press Machine

Product Description

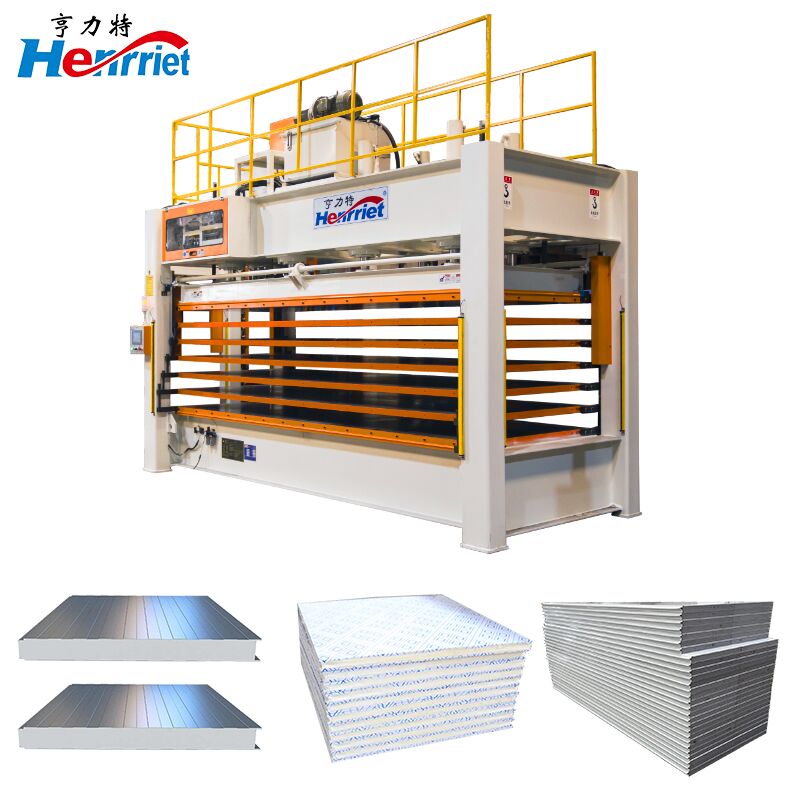

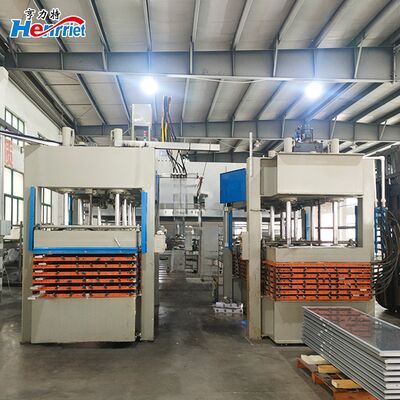

Polyurethane Foam Board Multi-layer Hot Press Composite Board Plywood Shaping

Product Description:

The air conditioning foam board hot press represents a significant advancement in composite processing technology, specifically engineered for the production of high-performance insulation structural panels. By unifying hot-press curing, foam molding, and lamination molding into a single integrated system, it enables a streamlined "one-step molding and multi-layer compositing" workflow. This approach effectively eliminates the inefficiencies and redundant stages common in conventional production lines, establishing a new standard for the rapid and reliable fabrication of advanced insulation boards.The operational process is designed for seamless integration: pre-cut metal panels (e.g., color-coated or galvanized sheets) and foam intermediates (such as polyurethane or polystyrene premixes) are accurately positioned between heated platens. To meet specific functional requirements, auxiliary layers—including flame-retardant barriers, sound-insulation mats, or structural reinforcement ribs—can be incorporated during assembly. Under precisely regulated temperature and pressure maintained for a programmable duration, the foam core undergoes complete cross-linking and curing while bonding uniformly to the surface layers. The result is a composite panel exhibiting high strength, low weight, and superior thermal insulation properties—ideal for demanding construction and industrial applications.

Elevated Production Capability

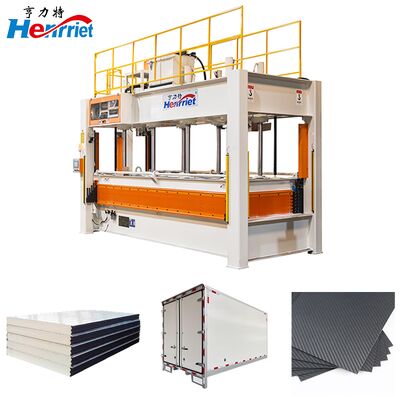

It ensures seamless coordination across heating, pressing, and curing phases, significantly shortening cycle times while maintaining consistent output quality. Whether applied to foam curing in air conditioning panels, interlayer bonding in composite boards, or high-density shaping for carriage panels, each production run is completed efficiently and reliably.

The system is designed to minimize manual intervention through automated platen handling and adjustable pressure-thermal profiles. This allows for swift transitions between different product specifications—supporting both large-batch runs and customized, small-lot orders without compromising on throughput or finish quality.

Integrated Safety and Compliance

Designed in accordance with international safety standards, the press features a multi-layered protection system combining hardware safeguards and intelligent monitoring. Redundant overpressure valves, thermal sensors, and emergency braking mechanisms work in concert to prevent operational anomalies, while real-time alerts provide early warnings for critical parameters, ensuring a secure production environment.

Versatile Application Range

The hot press is compatible with a wide array of engineered materials, including wood-plastic composites, aluminum-plastic panels, and foam-based insulation cores. Its uniform pressure distribution and precise thermal control ensure strong interlayer adhesion that meets industry-leading standards, effectively eliminating issues such as delamination or bubble formation.

Simplified Maintenance and Diagnostics

An embedded diagnostic system continuously monitors key components—such as heating elements, pressure transducers, and hydraulic seals—providing real-time alerts when irregularities are detected. This significantly simplifies troubleshooting, reduces dependency on specialized technicians, and shortens system recovery time.

Machine parameters

Max pressuer	120T
Work platen size	2500130042mm
Systm pressure	20mpa
Max.platen opening	100mm
Working level	7 Layer
Maximum temperature	70℃
Oil cylinder specification	110mm80mm 6pcs
Hydraulic pump power	5.5kw
Hot oil pump power	2.2kw
Heating pipe power	54kw
Overall dimensions	380021003800mm
Weight (about)	14000kg

Service Support

Warranty: 1 year

Packaging: Film with foam

24-hour customer service hotline, respond to repair needs within 48 hours.

Free video training for operators and provision of process guidance manuals.

Lifetime technical support and software upgrade services.
