| Brand Name: | Henrriet |
| MOQ: | 1 |
| Price: | Online/offline communication |
| Payment Terms: | T/T |

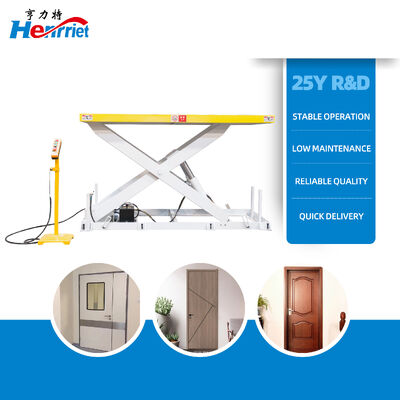

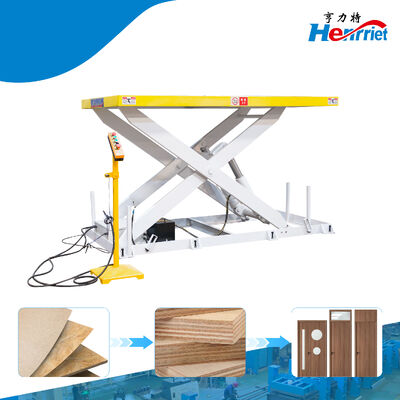

This stationary scissor lifting platform is a hydraulic lifting unit intended for workshop applications. It uses a cross-scissor steel frame, a broad flat tabletop, and a separate external control box. The layout is straightforward and stable, which suits feeding stations ahead of hot-pressing and cold-pressing operations. Hydraulic drive provides smooth table movement, and the unit works as auxiliary equipment on composite door panel production lines.
The lifting range is matched to panel tooling working heights and press feeding levels, which helps reduce height differences when transferring workpieces. A consistent lifting reference supports uniform panel positioning and fits continuous panel processing flows. The welded integrated scissor frame spreads load across the structure and is intended for large flat workpieces such as honeycomb panels and sandwich composite panels; it also supports repeated start-stop operation over extended periods.
The hydraulic circuit includes overload protection to help limit abnormal oil-circuit conditions during overload situations. The lowering action can be paused and resumed as needed, which helps reduce the chance of workpiece movement from a sudden table drop. A standalone vertical control pendant is placed away from the lifting area, letting operators manage lifting from a position outside that zone. Markings on the table edge indicate load limits and offer guidance for loading work.
The platform is suitable for plants that process aluminum honeycomb panels, paper honeycomb panels, sandwich composites, solid wood doors, composite door panels, and clean room panels. It is often used as feeding auxiliary equipment paired with hot presses and cold presses in panel lamination lines.
Check hydraulic hose joints, scissor hinge pins, and control wiring at planned intervals. Remove panel debris from the table and base to reduce the chance of foreign objects interfering with the moving scissor mechanism. Change hydraulic oil at the recommended interval and apply lubricant to rotating hinge points. During maintenance, run lifting tests in an unloaded condition to check movement and limit response.

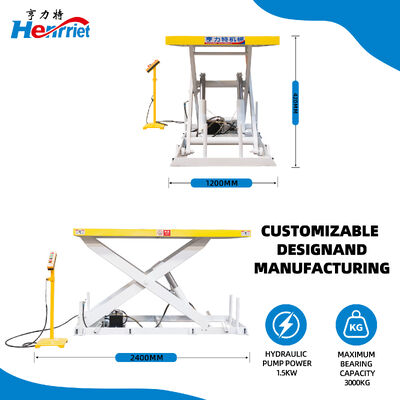

| Technical Data | 3T Lifting Platform |
|---|---|
| Maximum bearing capacity | 3000 kg |
| Work platen size | 2400 mm × 1200 mm |
| Max. platen opening | 400 mm |
| Oil cylinder specification | 100 mm × 2 pcs |
| Hydraulic pump power | 1.5 kW |
| Overall dimensions | 2400 × 1200 × 420 mm |
| Weight (approx.) | 800 kg |

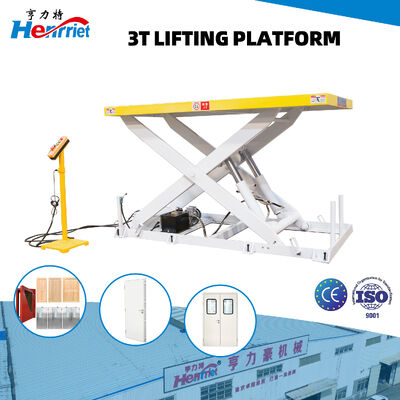

3T stationary scissor hydraulic lifting platform with wide flat tabletop for honeycomb panel and door production line.
We are based in Guangdong, China, and started in 2016. We sell to the Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), and Eastern Asia (2.00%). We have over 110 employees.
We have more than 20 years of experience in the wooden machinery industry. We operate two factories covering over 20,000 square meters with over 130 professional employees, including a senior design team of more than 30 engineers. We can tailor-make machine design drawings according to your needs and ensure perfect production and manufacturing. We provide comprehensive installation, commissioning, and operator training to ensure your machine can be put into production immediately upon arrival.
We confirm the required functions of the machine through communication with the customer. Our engineers complete the machine drawing design according to customer requirements. Engineers provide on-site guidance for a series of operations such as cutting, welding, and assembly. Quality inspectors conduct full-process testing of the functionality of each machine, and engineers and project leaders conduct another inspection before shipment.
Hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and non-standard automated production lines of various specifications.
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash. Languages Spoken: English, Chinese, Spanish, Japanese, Russian, Hindi.
