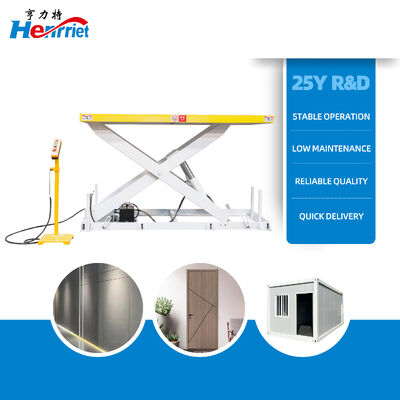

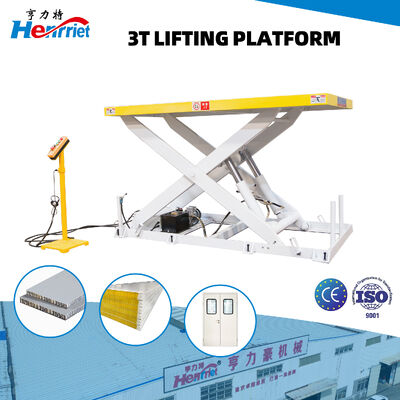

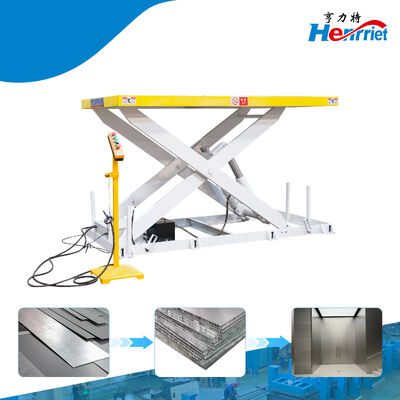

This stationary scissor lifting platform is a hydraulic lifting equipment designed for workshop use. It adopts a cross scissor steel frame structure with a wide flat tabletop and a separate external control box. The machine features a simple and stable layout, making it suitable for feeding stations before hot pressing and cold pressing processes. Driven by hydraulic power, it delivers steady table lifting movement and serves as auxiliary equipment for composite door panel production lines.
The lifting range matches the working height of panel tooling and aligns with press feeding positions to reduce height differences during workpiece transfer. A consistent lifting reference supports uniform panel positioning and fits continuous panel processing workflows. The welded integrated scissor frame distributes load evenly, designed to carry large flat workpieces such as honeycomb panels and sandwich composite panels, and supports long-duration cyclic start-stop operations.
The hydraulic circuit is equipped with overload protection to prevent abnormal oil circuit conditions under overloading. The lowering action can be started and stopped at will to avoid workpiece shifting caused by sudden table descent. The standalone vertical control pendant is separated from the lifting zone, allowing operators to control lifting from a safe distance. Warning marks on the table edge define load limits and guide standard loading operations.
Suitable for factories processing aluminum honeycomb panels, paper honeycomb panels, sandwich composite materials, solid wood doors, composite door panels, and clean room panels. It is commonly deployed as feeding auxiliary equipment matched with hot presses and cold presses in panel lamination production lines.
Inspect hydraulic hose joints, scissor hinge pins, and control wiring regularly. Clear panel debris accumulated on the table and base to prevent foreign objects from jamming the movable scissor mechanism. Replace hydraulic oil following the specified cycle and apply lubricant to rotating hinge points. Perform lifting tests under no-load conditions during maintenance to verify normal movement and limit response.

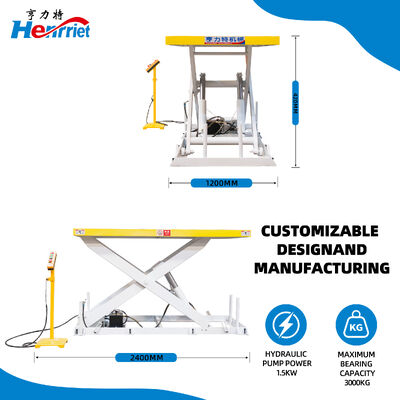

| Technical Data | 3T Lifting Platform |
|---|---|
| Maximum bearing capacity | 3000 kg |
| Work platen size | 2400 mm × 1200 mm |
| Max. platen opening | 400 mm |
| Oil cylinder specification | 100 mm × 2 pcs |
| Hydraulic pump power | 1.5 kW |
| Overall dimensions | 2400 × 1200 × 420 mm |
| Weight (approx.) | 800 kg |
We are based in Guangdong, China, and started in 2016. We sell to the Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), and Eastern Asia (2.00%). We have over 110 employees.
We have more than 20 years of experience in the wooden machinery industry. We operate two factories covering over 20,000 square meters with over 130 professional employees, including a senior design team of more than 30 engineers. We can tailor-make machine design drawings according to your needs and ensure perfect production and manufacturing. We provide comprehensive installation, commissioning, and operator training to ensure your machine can be put into production immediately upon arrival.
We confirm the required functions of the machine through communication with the customer. Our engineers complete the machine drawing design according to customer requirements. Engineers provide on-site guidance for a series of operations such as cutting, welding, and assembly. Quality inspectors conduct full-process testing of the functionality of each machine, and engineers and project leaders conduct another inspection before shipment.
Hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and non-standard automated production lines of various specifications.
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash. Languages Spoken: English, Chinese, Spanish, Japanese, Russian, Hindi.
