Double Hot Press Machine with 100 Ton Maximum Pressure, PLC + Touch Screen Control, and 150℃ Maximum Temperature for Automatic Conveying Production Line

Double Hot Press Machine with 100 Ton Maximum Pressure, PLC + Touch Screen Control, and 150℃ Maximum Temperature for Automatic Conveying Production Line

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Pressure Mode:

Top-down Pressing

Maximum Pressure:

100 Ton

Workbench Dimensions:

3200mm * 1500mm

Hot Press Plate Size:

3200mm * 1500mm, 2 Pcs

Workbench Reducer:

1 Set Of 2.2KW Motor With VFD Speed Control

Workbench Conveyor Belt:

4700mm * 1500mm * 0.7mm, 2 Pcs

Number Of Layers:

1 Layer

Spacing:

300mm

Heating Circulation Pump Motor:

2 Sets Of 3KW Motors

Oil Cylinder And Quantity:

12 Pieces, 120mm * 180mm

Hydraulic System Powerv:

15KW Motor

Maximum Temperature:

150℃

Control Method:

PLC + Touch Screen

System Voltage:

415V, 50Hz

System Power:

127.4KW

Packaging Details:

Film with Foam

Highlight:

100 Ton Maximum Pressure Hot Press Machine

PLC + Touch Screen Control Double Hot Press

150℃ Maximum Temperature Automatic Conveying Production Line

Product Description

Double Hot Press Automatic Conveying Production Line

Hydraulic Driven for Plant Fiber Composite Hot Press Forming

Product Overview

This integrated production line combines two hot press units with matched conveyor frames in a modular extended-frame arrangement that maintains a compact footprint. The conveyor path passes through hot pressing positions, enabling automatic feeding and removal of blanks. Pressing force is provided by a hydraulic structure, while heating utilizes a thermal oil electric circulation loop. Operation is managed through an integrated PLC with touch screen interface, supporting continuous hot pressing of plant fiber blanks for natural plant fiber composite materials.

Key Features

Superior Production Capacity: Automatic conveyor structure handles loading, unloading, and material movement coordinated with pressing steps. Two hot press stations work alternately to minimize idle time. Coordinated temperature and hydraulic regulation ensures consistent panel forming conditions with reduced process variation.
Security Guarantee: Electrical interlock protection with linked conveying and hot pressing movements in control logic. Hydraulic circuit includes pressure protection components. Heating circuit features temperature monitoring with real-time feedback. Operator panel includes access management and emergency stop functionality.
Application Areas: Primarily for hot press forming of natural plant fiber composites and similar materials. Finished panels used in automotive interior parts, bio-based lightweight boards, and environmentally oriented decorative substrates.
Maintenance and Upkeep: Split modular layout with easily accessible wear parts. Control system records operation logs for fault location. Routine maintenance covers conveyor cleaning, hydraulic oil replacement, and heating pipeline inspection.

Technical Specifications

Specification	Details
Pressure Mode	Top-down pressing
Maximum Pressure	100 Ton
Workbench Dimensions	3200mm × 1500mm
Hot Press Plate Size	3200mm × 1500mm, 2 pcs
Workbench Reducer	1 set of 2.2KW motor with VFD speed control
Workbench Conveyor Belt	4700mm × 1500mm × 0.7mm, 2 pcs
Number of Layers	1 layer
Spacing	300mm
Heating Circulation Pump Motor	2 sets of 3KW motors
Oil Cylinder and Quantity	12 pieces, 120mm × 180mm
Hydraulic System Power	15KW motor
Heating System	Electric heating, heat transfer medium: thermal oil
Maximum Temperature	150℃
Control Method	PLC + Touch Screen
System Voltage	415V, 50Hz
System Power	127.4KW

Company Advantages

Two In-House Factories: Better prices and faster delivery with no middlemen. Full control over production speed and costs.
30+ Senior Engineers: Custom-built solutions designed around your production needs, floor space, and budget.
CE & ISO 9001 Certified: Meets EU CE safety standards and ISO 9001 quality requirements. Compliant with international electrical, mechanical, and safety regulations.
Global Experience: Shipped to over 50 countries with 1,000+ custom designs. Equipment engineered for long-term, heavy-duty use.

Service Support

Warranty: 1 year

Packaging: Film with foam

24-hour customer service hotline with 48-hour response to repair needs

Free video training for operators and process guidance manuals

Lifetime technical support and software upgrade services

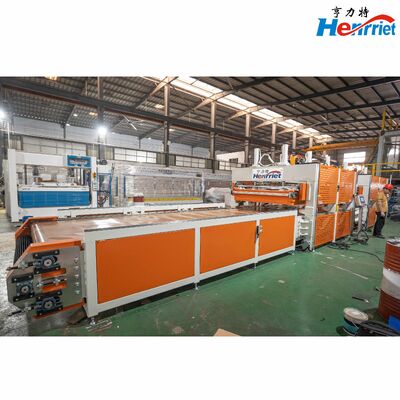

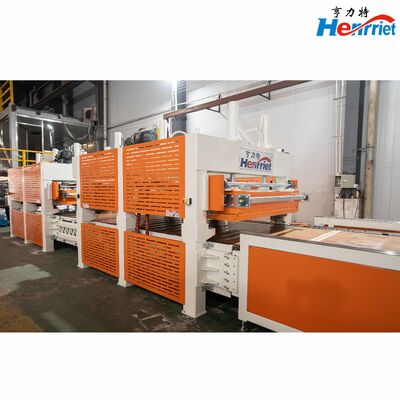

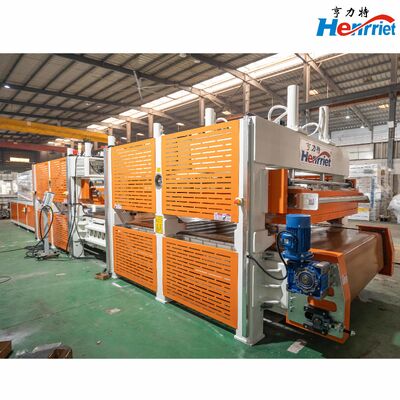

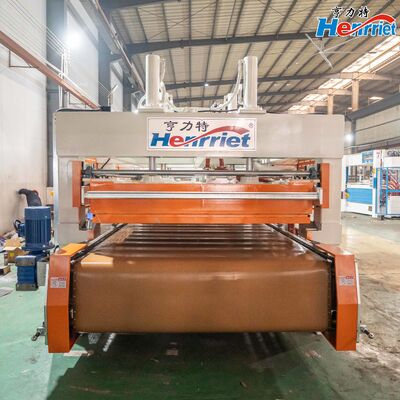

Product Image

Company Introduction

Frequently Asked Questions

Who are we?
Based in Guangdong, China since 2016. Serving Domestic Market (55.00%), Africa (20.00%), South Asia (9.00%), Central America (6.00%), Oceania (5.00%), South America (3.00%), and Eastern Asia (2.00%). Over 110 employees.

Why should you buy from us?
More than 20 years in wooden machinery industry. Two factories covering over 20,000 square meters. Over 130 professional employees including 30+ senior engineers. Custom machine design drawings and comprehensive installation, commissioning, and operator training.

How can we guarantee quality?
Confirm functions through customer communication; engineer-designed machine drawings; on-site guidance for cutting, welding, and assembly; full process testing by quality inspectors; final inspection before shipment.

What can you buy from us?
Hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and non-standard automated production lines.

What services can we provide?
Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery. Payment Currency: USD, EUR, CNY. Payment Type: T/T, L/C, PayPal, Western Union, Cash. Languages: English, Chinese, Spanish, Japanese, Russian, Hindi.
