75T Max Pressure 8000x1500mm Work Platen Five-Cylinder Hydraulic Cold Press Machine with Multi-Cylinder Synchronous System for Aluminum Honeycomb Panel Production Line

75T Max Pressure 8000x1500mm Work Platen Five-Cylinder Hydraulic Cold Press Machine with Multi-Cylinder Synchronous System for Aluminum Honeycomb Panel Production Line

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Max Pressuer:

75T

Work Platen Size:

8000*1500mm

Oil Cylinder Specification:

100mm * 5pcs

Motor Power :

5.5kw

Workd Effctively:

1000mm / 1300mm / 1500mm (customizable)

Overall Dimensions （Standard Model）:

8500*1500*3700mm

Weight (Standard Model-about):

9500kg

Packaging Details:

Film with Foam

Highlight:

75T hydraulic cold press machine

8000x1500mm work platen press

aluminum honeycomb panel production line

Product Description

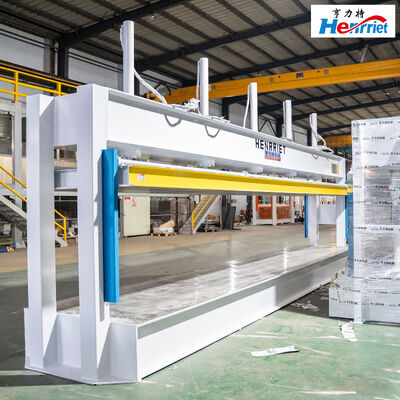

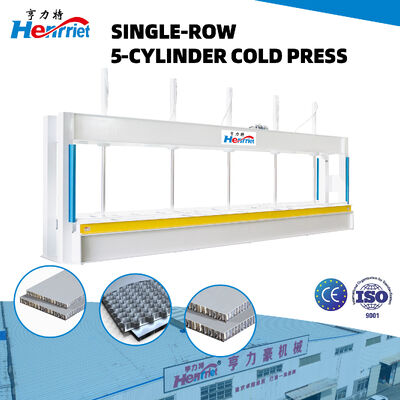

5 Cylinder Hydraulic Cold Press Machine for Aluminum Honeycomb Panel Production Line

Description

This industrial hydraulic press features a five-cylinder configuration, developed for panel lamination, composite material forming, and structural pressing tasks. Its multi-cylinder hydraulic setup delivers consistent pressing force, supporting effective adhesion across material layers during cold press operations. With pressure applied at five separate points, the equipment achieves improved force balance throughout the pressing zone. It serves manufacturing settings where panel flatness, structural integrity, and repeatable processing results matter. The spacious working surface accommodates diverse panel dimensions, finding application in wood door fabrication, furniture component manufacturing, composite board production, and construction finishing material sectors.

Features

1.Superior production capacity: Engineered for batch-scale panel manufacturing, this equipment delivers sustained pressing output via its hydraulic drive mechanism. The five-cylinder layout contributes to improved load sharing when handling oversized panels, promoting steadier processing cycles. It handles panels of varying thicknesses and constructions, with operating parameters adaptable to specific material properties and output targets. The generous work area offers versatile processing options for wood door components, furniture panels, composite substrates, and comparable industrial products.

Security guarantee: Built with industrial-strength architecture, this press addresses extended production schedules. The coordinated action of its five hydraulic cylinders sustains pressing stability, while the hydraulic circuit manages force levels based on operational demands, minimizing pressure variation during cycles. A rigid frame works in conjunction with electrical controls and protective mechanisms to support safe, dependable operation. The pressing plate moves in a controlled manner, spreading pressure across panel surfaces in a relatively even pattern, suiting industrial tasks that call for uniform pressing standards.
Application areas: This five-cylinder cold press finds use across wood door fabrication, furniture making, composite panel finishing, and building decoration material production. For wood door operations, it handles solid wood composite doors, MDF door skins, and multi-ply boards. Such panels typically involve base layers, surface finishes, and bonding agents, calling for consistent pressing environments and adequate surface evenness to secure adhesion between material strata. In furniture production, it processes cabinet panels, decorative boards, and laminated surfaces that frequently integrate wood veneer, PVC film, and decorative overlays, with steady pressing behavior contributing to finished product standards. For composite material work, it accommodates aluminum honeycomb panels, aluminum composite sheets, and similar multi-layer construction products, where regulated pressing parameters facilitate bonding between facing materials, core sections, and adhesive interlayers.
Maintenance and upkeep: To support sustained, reliable performance of this five-cylinder cold press, operators should implement a structured maintenance routine. Throughout daily use, the hydraulic assembly requires periodic examination, covering fluid quality, line connections, and seal integrity, to preserve dependable function. Mechanical elements need routine cleaning, including the work surface and joint areas, with moving parts receiving appropriate lubrication for fluid motion. Regarding the electrical portion, the control enclosure should remain clean and moisture-free, with wiring links, control elements, and safety features checked on a regular basis. Sound maintenance practices help lower operational hazards, prolong equipment lifespan, and preserve consistent manufacturing output.

Technical Specifications

Specification	Value
Maximum pressure	75T
Work platen size	8000×1500mm
Oil cylinder specification	100mm × 5pcs
Motor power	5.5kw
Work effectively	1000mm / 1300mm / 1500mm
Overall dimensions (Standard Model)	8500×1500×3700mm
Weight (approx)	9500kg

Company Advantages

Two In-House Factories = Better Prices, Faster Delivery

We own two independent R&D and manufacturing facilities. No middlemen. No markups. You buy straight from the source, with full control over production speed and costs.

More than 30 Senior Engineers, Custom-Built for You

Our 30-person R&D team designs machines around your actual production needs, floor space, and budget. Tell us what you're making—we'll build exactly what you need.

CE & ISO 9001 Certified, Global-Ready

Every machine meets EU CE safety standards and ISO 9001 quality requirements. Full compliance with international electrical, mechanical, and safety regulations—ready to plug and play anywhere in the world.

More than 50 Countries, 1000+ Projects, Experienced in Design and Manufacturing

We've shipped to over 50 countries and completed 1,000+ custom designs. Our equipment is engineered for long-term, heavy-duty use—proven in real factories worldwide.
