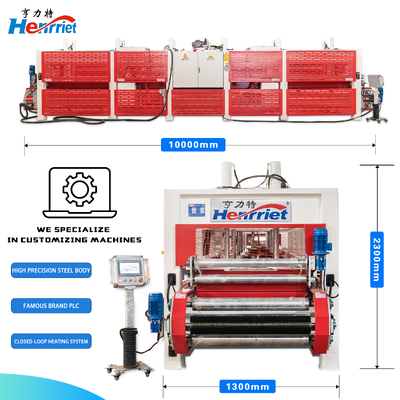

PLC Control Hot Laminating Press with Automated Conveying for Large-Format Aluminum Honeycomb & Carbon Fiber Composites at 100t Pressure

PLC Control Hot Laminating Press with Automated Conveying for Large-Format Aluminum Honeycomb & Carbon Fiber Composites at 100t Pressure

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Pressure Plate Size:

10000*1300mm

Heating Method:

Electric Heating Heat Transfer Oil Heat Transfer

Maximum Pressure:

100t

Number Of Layers:

1-layer

Brush Motor:

1.1KW

Total Power:

164.6KW

Heating Cycle Motor:

3KW*2pcs

Oil Cylinders And Quantity (piston Cylinders):

12PCS（70mm*100mm*300mm）

Maximum Temperature:

100℃

Opening Spacing:

0-300mm

Heating System Power:

90KW*2=180KW

Plate Thickness:

60mm*2pcs

Upstage Fabric Rolling Motor:

1.5KW*2

Actual Composite Maximum Size:

9800*1200mm

Belt Conveyor Power:

3KW

Hydraulic System Motor Power:

7.5KW

Packaging Details:

Film with Foam

Product Description

Hot Laminating Press with PLC Control Production Line – Automated Conveying for Large‑Format Aluminum Honeycomb & Carbon Fiber Composites

Product Overview

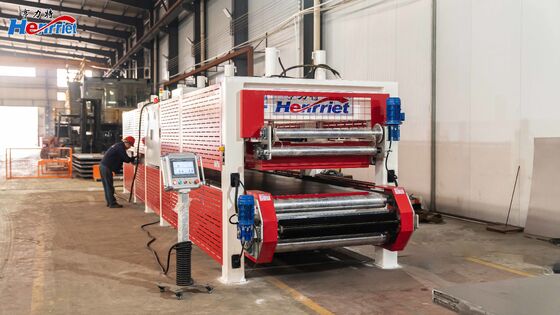

The 10-meter hot press automatic conveying production line is a large-scale composite manufacturing unit that integrates an ultra-long hot press with a fully synchronized material handling system. The core configuration includes a heavy-duty hot press mainframe, a 10-meter infeed conveyor, a discharge stacking device, precision temperature control heating loop, forced cooling and shaping section, and a PLC-based central control panel.

Key Features

Superior Production Capacity: Operates in completely uninterrupted mode with integrated conveyor mechanism for swift material handling, eliminating manual loading/unloading and minimizing non-productive time between cycles.
Integrated Safety and Protection: Fully enclosed guards and interlocked isolation barriers protect operators from high-temperature zones and moving mechanisms, with emergency stop buttons at all operator stations.

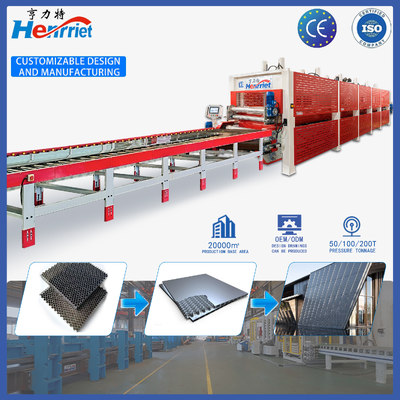

Wide-Ranging Application Versatility: Suitable for aluminum honeycomb panels (curtain walls, ceilings, rail transit, marine, aerospace), cleanroom/sanitary panels, and carbon fiber reinforced polymer (CFRP) molding.
Easy Maintenance and Technical Support: Routine upkeep procedures with no-load test runs to verify proper function of all transmission parts and safety devices.

Technical Specifications

Maximum pressure	100 Ton
Pressure plate size	10000*1300mm
Plate thickness	60mm*2pcs
Actual composite maximum size	9800*1200mm
Number of layers	1-layer
Opening spacing	0-300mm
Heating cycle motor	3KW*2pcs
Belt conveyor power	3KW
Brush motor	1.1KW
Upstage fabric rolling motor	1.5KW*2
Hydraulic system motor power	7.5KW
Oil cylinders and quantity (piston cylinders)	12PCS(70mm100mm300mm)
Heating system power	90KW*2=180KW
Heating method	Electric heating heat transfer oil heat transfer
Maximum temperature	100℃
Total power	164.6KW
