10 Meter Hot Laminating Press with 100 Ton Maximum Pressure and Electric Heating Heat Transfer for Automatic Conveying Production Line

10 Meter Hot Laminating Press with 100 Ton Maximum Pressure and Electric Heating Heat Transfer for Automatic Conveying Production Line

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Maximum Pressure:

100t

Pressure Plate Size:

13000*2500mm

Plate Thickness:

60mm*2pcs

Actual Composite Maximum Size:

12800mm*1180mm

Number Of Layers:

1-layer

Opening Spacing:

0-250mm

Heating Cycle Motor:

3KW*2pcs

Belt Conveyor Power:

4KW

Brush Motor:

1.1KW

Upstage Fabric Rolling Motor:

1.5KW*2

Hydraulic System Motor Power:

7.5KW

Oil Cylinders And Quantity (piston Cylinders):

14pcs*70mm*250mm

Heating System Power:

90KW*2=180KW

Heating Method:

Electric Heating Heat Transfer Oil Heat Transfer

Maximum Temperature:

100℃

Total Power:

201.6KW

Packaging Details:

Film with Foam

Product Description

10 Meter Hot Laminating Press Automatic Conveying Production Line

Product Overview

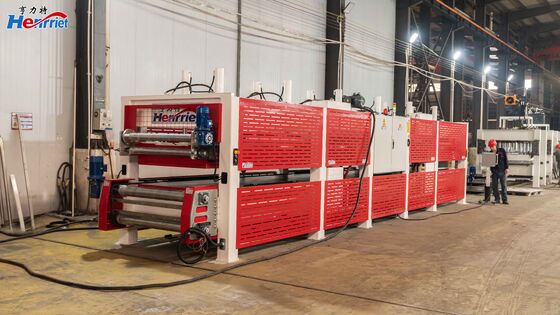

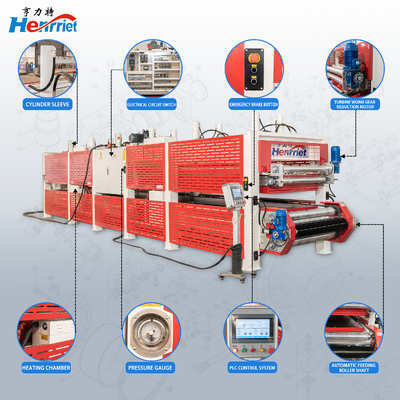

The 10 meter hot press automatic conveying production line is a large-scale composite production unit that integrates an ultra-long format hot press host with a fully automatic conveying system. This comprehensive system features a hot press host, 10-meter feed conveying mechanism, discharge conveying device, precise temperature control heating system, cooling and shaping system, and PLC electrical control system.

The equipment operates in a production line mode of "automatic feeding - automatic glue spraying - automatic flipping of board cover - high temperature hot pressing - automatic discharge and stacking," seamlessly connecting the entire process for sandwich rock wool panels, multi-layer cabinet panels, and other large-format composite materials.

Key Features

Superior Production Capacity: Complete hands-free operation with integrated conveyor mechanism eliminates manual loading/unloading, minimizing non-productive time between cycles
Integrated Safety and Protection: Fully enclosed guards and isolation barriers protect operators from high-temperature zones and moving mechanisms

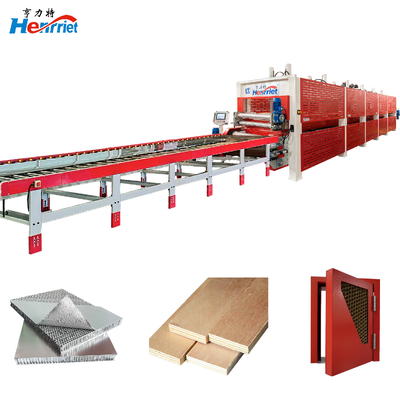

Wide-Ranging Application Versatility: Suitable for rock wool sandwich panels and aluminum honeycomb panels with three-layer construction using high-strength rigid sheets
Easy Maintenance and Technical Support: Comprehensive maintenance protocols with routine checks on transmission parts and safety devices

Technical Specifications

Maximum Pressure	100 Ton
Pressure Plate Size	10000*1300mm
Plate Thickness	60mm*2pcs
Actual Composite Maximum Size	9800*1200mm
Number of Layers	1-layer
Opening Spacing	0-300mm
Heating Cycle Motor	3KW*2pcs
Belt Conveyor Power	3KW
Brush Motor	1.1KW
Upstage Fabric Rolling Motor	1.5KW*2
Hydraulic System Motor Power	7.5KW
Oil Cylinders and Quantity	12PCS (70mm100mm300mm)
Heating System Power	90KW*2=180KW
Heating Method	Electric Heating Heat Transfer Oil Heat Transfer
Maximum Temperature	100℃
Total Power	164.6KW

Company Advantages

Two In-House Factories: Direct manufacturing with no middlemen ensures better prices and faster delivery
Expert Engineering Team: 30+ senior engineers provide custom solutions tailored to your production needs
Global Certification: CE & ISO 9001 certified for international compliance and safety standards
Proven Experience: 50+ countries served with 1000+ successful projects worldwide
