Heavy Duty 17.5MPA Maximum Pressure Automatic Feeding and Unloading Cold Press Production Line with 3300*1800mm Pressure Plate Size

Heavy Duty 17.5MPA Maximum Pressure Automatic Feeding and Unloading Cold Press Production Line with 3300*1800mm Pressure Plate Size

Brand Name:	Henrriet
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO 9001

Maximum Pressure:

17.5MPA

Pressure Plate Size:

3300*1800mm

Maximum Processing Length:

3600mm

Maximum Processing Width:

2200mm

Maximum Processing thickness:

800mm

Lower Workbench Height:

300mm

Oil Cylinder Specifications:

6pcs(70mm*100mm)

Power:

5.5kw

Overall Dimensions:

3850X5600X4750mm

Maximum Opening Distance:

1800mm

Hydraulic Cylinder Specifications:

6pcs（140*100*1800mm）

Specification Of Track Oil Cylinder:

10pcs （80X30mm）

Weight (approximately):

9200KG

Packaging Details:

Film with Foam

Highlight:

17.5MPA heavy duty cold press

automatic feeding sandwich board line

3300x1800mm pressure plate production line

Product Description

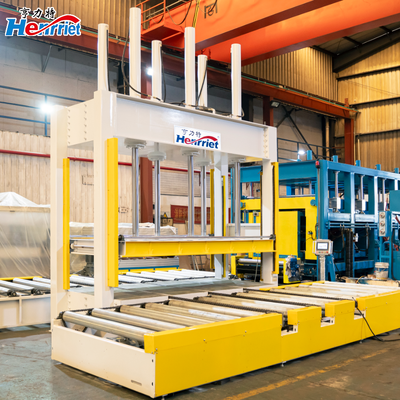

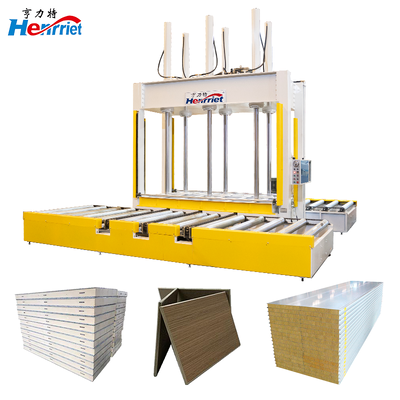

Heavy Duty Panel Automatic Feeding and Unloading Cold Press Production Line

Product Overview

The heavy-duty automatic feeding and unloading cold press production line is a fully automated system engineered for room-temperature hydraulic consolidation of multi-layer composite panels. Its core architecture integrates a high-capacity cold press with an automatic infeed/outfeed conveyor network driven by chain or roller mechanisms and precision servo positioning.

The system automatically transfers pre-assembled stacks of glued wooden door panels, acoustic panels, marine diamond boards, and other engineered substrates into the pressing zone. There, adhesive layers achieve complete curing under sustained room-temperature pressure before the consolidated panels are automatically discharged.

Key Features

Superior Production Capacity

Integrated chain/roller conveyor systems with servo-controlled positioning for precise substrate indexing
Robust worktable configuration accommodates full-panel consolidation in single press cycles
Seamless parallel processing reduces non-productive intervals and drives consistent daily throughput

Integrated Safety and Protection

Emergency stop controls on operation panel and machine body for immediate power isolation
Light curtain detection zones instantly halt motion when personnel enter hazardous areas
Full protective guarding on all moving components including chain drives and transmission mechanisms

Wide-Ranging Application Versatility

Furniture and wooden door panels with smooth surfaces and stable dimensions
Acoustic panels with superior sound absorption coefficients and low emissions
Marine diamond boards and specialized composites requiring moisture resistance

Streamlined Maintenance and Service Support

Comprehensive platen cleaning procedures to ensure product flatness and surface quality
Regular hydraulic system inspection for fluid levels, temperatures, and leakage detection
Routine sensor calibration for maintaining ultra-high accuracy in panel consolidation

Technical Specifications

Maximum Pressure	160 T
Pressure Plate Size	3300×1800mm
Maximum Opening Distance	1800mm
Hydraulic Cylinder Specifications	6 pcs (140×100×1800mm)
Track Oil Cylinder Specification	10 pcs (80×30mm)
Power	5.5kw
Maximum Pressure	17.5 MPA
Overall Dimensions	3850×5600×4750mm
Weight (approximately)	9200 KG

Corporate Advantages

Two In-House Factories: Direct manufacturer pricing with full control over production speed and costs
Expert Engineering Team: 30+ senior engineers providing custom-built solutions for your production needs
Global Certification: CE & ISO 9001 certified, compliant with international electrical, mechanical, and safety regulations
Proven Experience: Equipment shipped to 50+ countries with 1000+ custom designs for long-term, heavy-duty use
